Typo RM0440

  • December 13, 2023
  • 4 replies
  • 1614 views

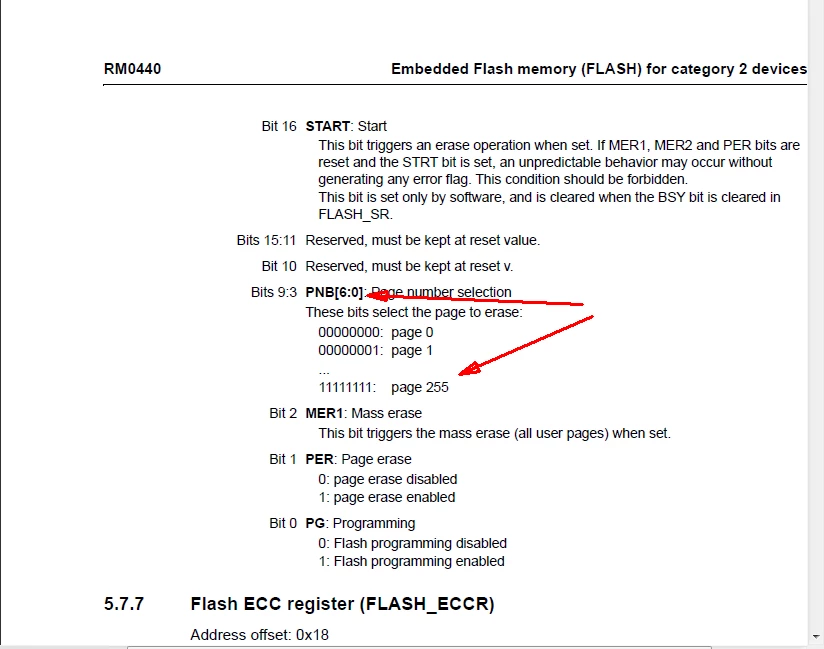

What is right? 7 or 8 bits?

no way.jpg

This topic has been closed for replies.
Best answer by STTwo-32

Hello @Tobe @Tesla DeLorean

This typo has been solved on the RM0440 Rev8.

Best Regards.

STTwo-32

4 replies

STTwo-32
STTwo-32
Technical Moderator
December 13, 2023

Hello @Tobe and thank you for reporting this.

I will check this internally and come back to you as soon as possible.

Best Regards.

STTwo-32

To give better visibility on the answered topics, please click on Accept as Solution on the reply which solved your issue or answered your question.
Tesla DeLorean
Tesla DeLorean
Guru
December 13, 2023

8-bits

...
 /* Proceed to erase the page */
 MODIFY_REG(FLASH->CR, FLASH_CR_PNB, ((Page & 0xFFU) << FLASH_CR_PNB_Pos));
 SET_BIT(FLASH->CR, FLASH_CR_PER);
 SET_BIT(FLASH->CR, FLASH_CR_STRT); }
Tips, Buy me a coffee, or three.. PayPal VenmoUp vote any posts that you find helpful, it shows what's working..
STTwo-32
STTwo-32
Technical Moderator
December 29, 2023

Hello @Tobe

In fact, the Flash memory (FLASH) for category 2 devices is a 128 Kbyte single bank memory with a page size of 2 Kbyte. That means we have 64 pages (page 0 to page 63). So, you need only 6 bits.

Internal ticket has been created to correct the typo in the next release.

Internal ticket number: 169676(This is an internal tracking number and is not accessible or usable by customers).

Sorry for my late feedback.

Best Regards.

STTwo-32

To give better visibility on the answered topics, please click on Accept as Solution on the reply which solved your issue or answered your question.
    STTwo-32
    STTwo-32Answer
    Technical Moderator
    March 7, 2024

    Hello @Tobe @Tesla DeLorean

    This typo has been solved on the RM0440 Rev8.

    Best Regards.

    STTwo-32
