UART data receive acknowledgement

  • March 14, 2024
  • 2 replies
  • 2421 views

Two devices A & B are communicating on UART. A sends data stream to B. B sends one byte data back to A to acknowldge that data has been received.

I want to implement if A doesn't receive acknowledgement from B then it display Error message on LCD.

Please suggest best logic in A to implement this.

As far I think I should start the UART_Receive_IT API for one byte . and complete callback sets the flag for acknowlegement. Incase flag is not set within one second or so after sending data then A display Error message on LCD. Should I start HAL_Delay(1000) after sending data and then check for flag set or not?

If anyother best way, kindly suggest.

I am still relatively new to coding word..so trying to find best ways.. ;)

Best answer by Andrew Neil

The blocking HAL_UART_Receive() API takes a timeout:


the non-blocking HAL_UART_Receive_IT() doesn't:




Using HAL_Delay() effectively makes your code blocking - so there seems no point in using the non-blocking API?



2 replies

Tesla DeLorean
Tesla DeLorean
Guru
March 14, 2024

>>Should I start HAL_Delay(1000) after sending data and then check for flag set or not?

No, you'd do better taking a TickCount, say HAL_GetTick(), and use that to determine if enough time has expired without getting a callback with the acknowledgment byte

If it responds more quickly you can proceed to do other things.

Tips, Buy me a coffee, or three.. PayPal VenmoUp vote any posts that you find helpful, it shows what's working..
    Andrew Neil
    Andrew NeilAnswer
    Super User
    March 14, 2024

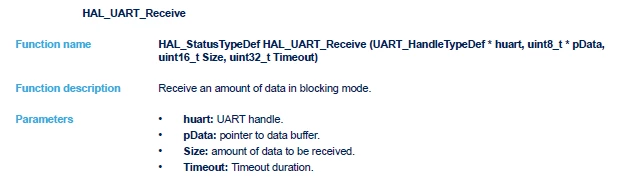

    The blocking HAL_UART_Receive() API takes a timeout:


    the non-blocking HAL_UART_Receive_IT() doesn't:




    Using HAL_Delay() effectively makes your code blocking - so there seems no point in using the non-blocking API?



    A complex system that works is invariably found to have evolved from a simple system that worked.A complex system designed from scratch never works and cannot be patched up to make it work.
    N
    Nico3Author
    Senior
    March 14, 2024

    Cool,

    So after sending data , i run the blocking HAL_UART_Receive()with timeout of say 1 second and then check the HAL_StatusTypeDef return.



      Andrew Neil
      Andrew Neil
      Super User
      March 14, 2024

      Yes.

      And, of course, check the received character (if any) - to make sure it's the correct acknowledgement.

      A complex system that works is invariably found to have evolved from a simple system that worked.A complex system designed from scratch never works and cannot be patched up to make it work.
