USB Host MTP/PTP to digital camera

  • March 2, 2024
  • 2 replies
  • 4534 views

Hello,

I'm testing the STM3240G-eval with the USB host MTP. The goal is to retrieve the photo from a canon EOS 100.

The camera uses PTP protocol.

As the demonstration  code read .wav file, I wrote a wav file to the root of the SD card.



The digital camera is recognised but when the code arrives on  USBH_MTP_GetObjectHandles(&hUSBHost, 0, PTP_OFC_WAV, 0xFFFFFFFF, &WavHandles), no file is returned.



Perhaps I should replace the USH_MTP_xx function by USBH_PTP_xx ?

Any idea?



Pierre

2 replies

M
Mohamed_AYED
Explorer
March 3, 2024

Hi @PCu1 ,

You need to check your device (Canon EOS 100) which class support MTP or PTP.

do you have an usb trace of enumeration phase.



PCu1
PCu1Author
Senior
March 3, 2024

Hi @Mohamed_AYED ,

Following the documentation, the Canon supports PTP. (class 0x06)

It is confirmed with the STM32 MTP example demo because it passes the comparison level. And also I captured some informations with USBtreeview when the camera is connected with the PC that confirm class 0x06.



I have an Logic Salae analyser but it will be RAW data packet. I don't know if it can help. Do you have a tool suggestion?

Pierre

Pavel A.
Pavel A.
Super User
March 3, 2024

Maybe a picture camera just does not understand what are .wav files and skips them in enumeration?

Pavel A.
Pavel A.
Super User
March 3, 2024

Can you see the file that you've added in the interface of the camera itself?

PCu1
PCu1Author
Senior
March 4, 2024

Unfortunately it seems that you can only preview images/videos but not the file list on the camera itself...

PCu1
PCu1Author
Senior
March 6, 2024

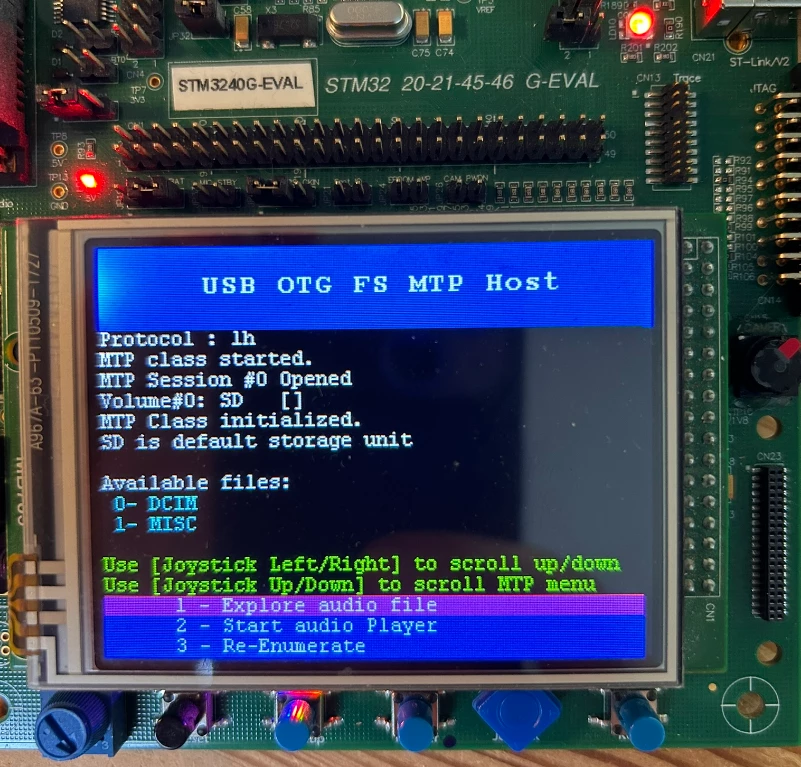

If I change the "object format code" by PTP_OFC_Association I can get the directories list on the SD card.

At least the Canon answers/understands some requests...

Capture d'écran 2024-03-06 092447.png

I tried with Object format code between 0x3000 and 0x3810 without success.

May be the Canon restricts the access on root and allows on DCIM directory.

Is it possible in USB-PTP to navigate in subdirectories?
