USB interface STM32F373 for circuit

Forum|Forum|2 years ago
January 29, 2024
1 reply
2206 views

I need USB interface STM32F373 for circuit.

Best answer by STTwo-32

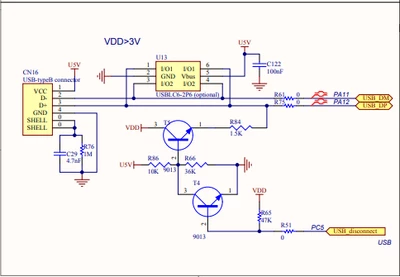

As said @Andrew Neil , you can refer to the AN4206 and AN4879. But also, you can use the Schematic Pack of the STM32373C-EVAL to inspire for your design:

Best Regards.

STTwo-32

Technical Moderator

Hello @Venish1104 and welcome to the ST Community :smiling_face_with_smiling_eyes:.

According to the DS8845:

"The STM32F373xx embeds an USB device peripheral compatible with the USB full-speed
12 Mbs. The USB interface implements a full-speed (12 Mbit/s) function interface. It has
software-configurable endpoint setting and suspend/resume support."

Best Regards.

STTwo-32

To give better visibility on the answered topics, please click on Accept as Solution on the reply which solved your issue or answered your question.

V

Venish1104Author

Associate

Dear team,
yes, I'm asking about According to the DS8845:
in my doubt is how to connect USB to MCU circuit design need, pls share details

Andrew Neil

Super User

So have you visited the Product Page for the device; eg,

https://www.st.com/en/microcontrollers-microprocessors/stm32f373cc.html

Look under 'Documentation' for App Notes, etc; eg,

AN4206 - Getting started with STM32F3 series hardware development

AN4879 - Introduction to USB hardware and PCB guidelines using STM32 MCUs

Also look under 'Tools & Software' - check out Dev Board schematics, etc

A complex system that works is invariably found to have evolved from a simple system that worked.A complex system designed from scratch never works and cannot be patched up to make it work.
