LRWAN2 Gateway will not connect to TheThingsNetwork

  • December 18, 2019
  • 3 replies
  • 1961 views

Hello,

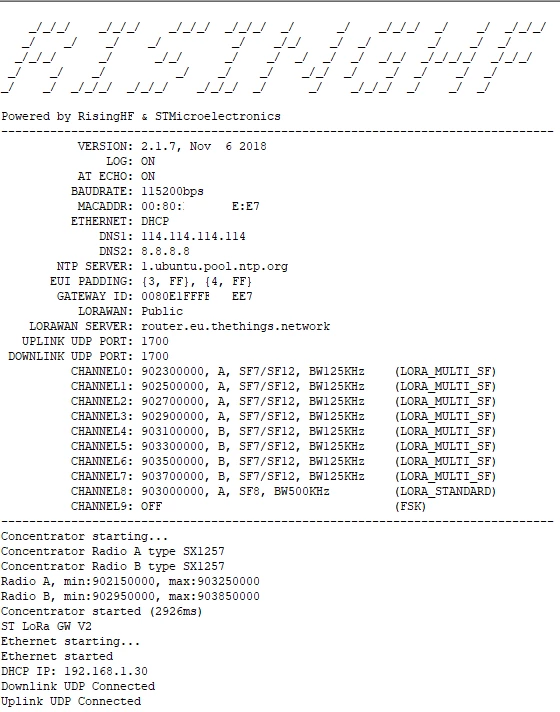

I'm facing a strange problem. I just bought the LRWAN2 package, connected the gateway to the network, one usb cable to power it and one usb to the st-link. I configured the packed forwarder to router.eu.thethings.network,1700,1700 and CH to US915.

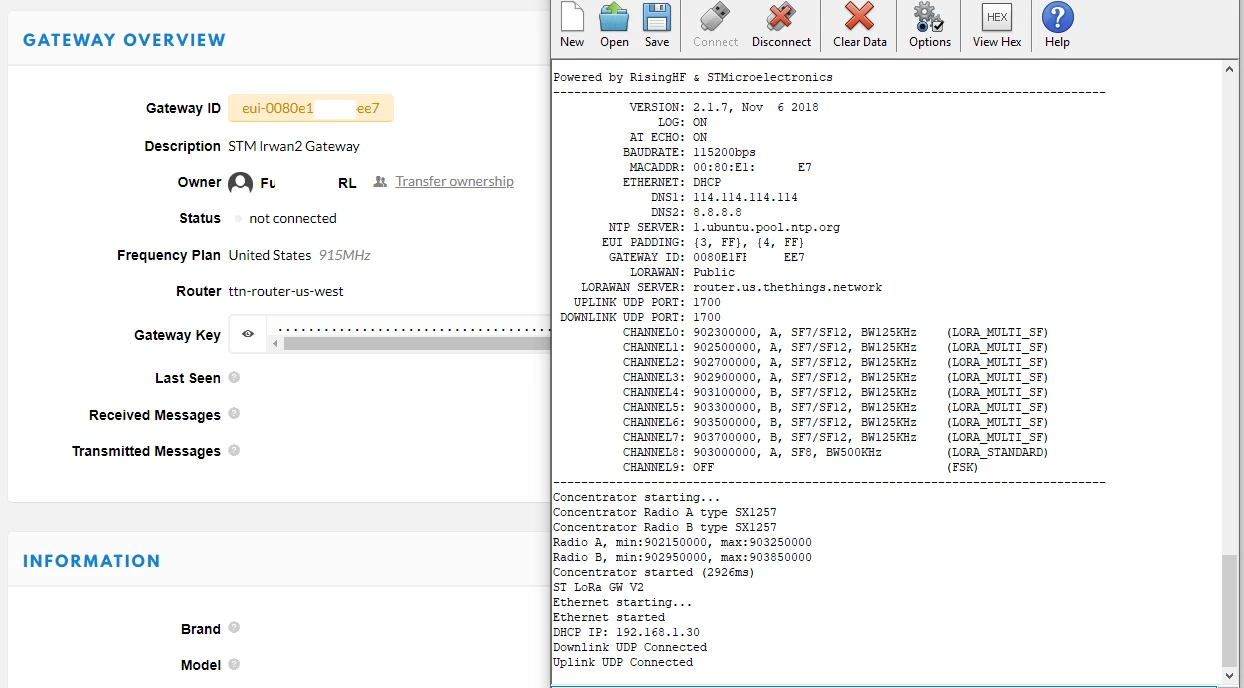

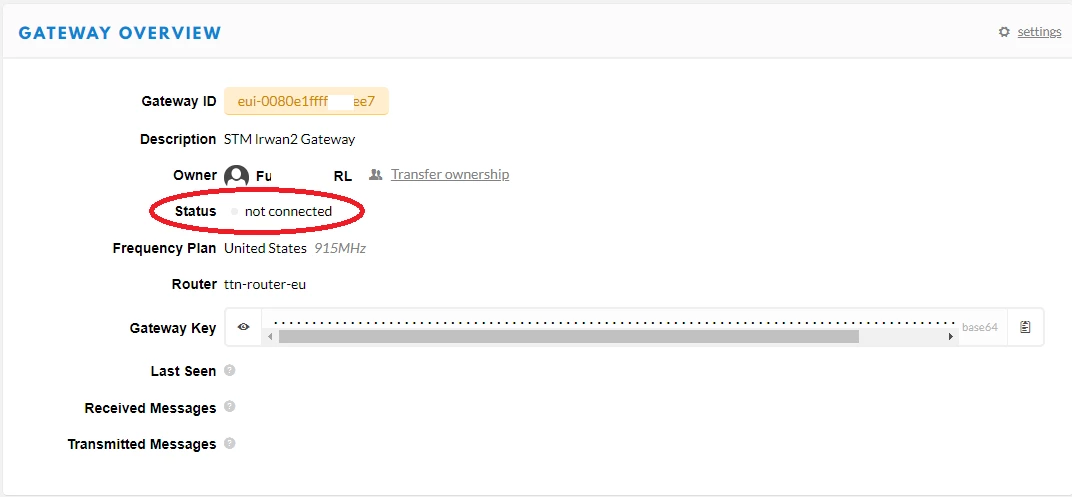

On the ttn side, I registered the gateway but it says "not connected".

Searching on the ttn troubleshooting guide I found the bin file for this Gateway, so I updated the firmware, changed the MAC address to the provided one but no connection.

I tried to connect the loriot server with success.

I am running out of ideas.

Does anybody faced the same or similar problem with ttn?

Do anybody have a different bin file or configuration that work with ttn?

Thank you.

Daniel


This topic has been closed for replies.
Best answer by DBrug.712

Ok I solved the problem, My device had active the US subBand2 and the Gateway the SubBand1. I Changed the frequency plan on the Gateway. When I sent a message, the gateway came alive.

3 replies

Tesla DeLorean
Tesla DeLorean
Guru
December 18, 2019

router.us.thethings.network (America, 902-928 MHz)

router.au.thethings.network (Australia, 915 MHz)

Tips, Buy me a coffee, or three.. PayPal VenmoUp vote any posts that you find helpful, it shows what's working..
DBrug.712
DBrug.712Author
Associate II
December 18, 2019

Thanks Clive1 for your reply,

I tried both servers but the same luck.

Any other idea?

thank you

Daniel


DBrug.712
DBrug.712AuthorAnswer
Associate II
December 19, 2019

Ok I solved the problem, My device had active the US subBand2 and the Gateway the SubBand1. I Changed the frequency plan on the Gateway. When I sent a message, the gateway came alive.
