Pulse Density Modulation Interface

  • October 18, 2019
  • 10 replies
  • 6214 views

Hi!

I'm trying to enable the PDM interface on a STM32WB55RGV with one microphone. Basically i followed the AN5027 application note, but I'm not able to start the clock on the proper GPIO.

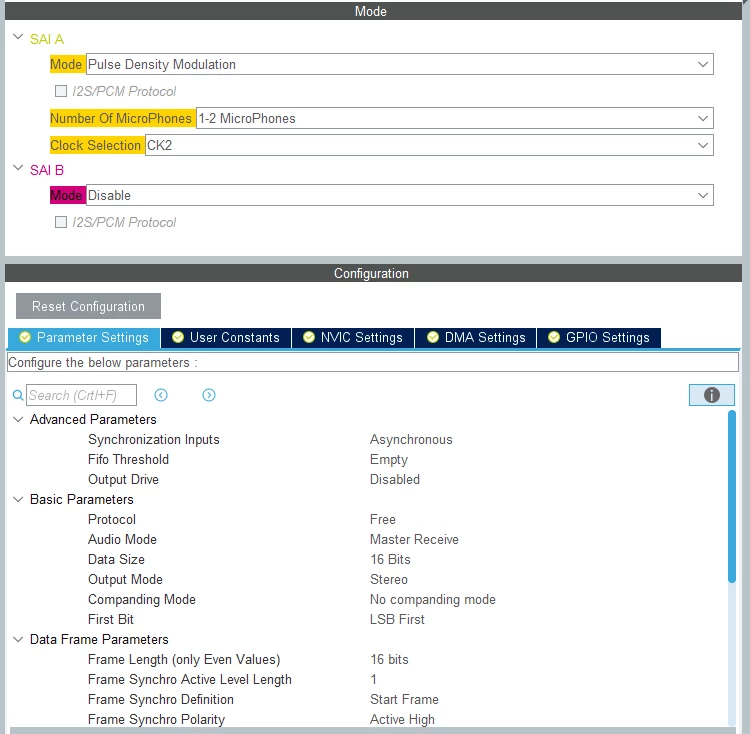

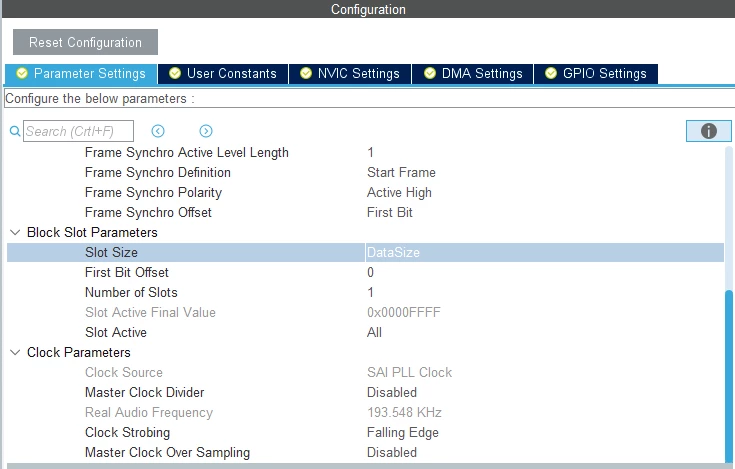

The configuration from CUBE-MX seems ok, and I checked the registers value, so maybe I'm setting up the wrong API to start the streaming.

Any advice?



	MX_SAI1_Init();

	osDelay(10);

	//HAL_SAI_Receive_DMA(&hsai_BlockA1, (uint8_t *)mic_buff, MIC_BUFF_LEN);
	HAL_SAI_Receive(&hsai_BlockA1, (uint8_t *)mic_buff, MIC_BUFF_LEN, 100);


	/* start application */
	while (1){
		osDelay(1000);
	}

This topic has been closed for replies.
Best answer by polotomino

Thanks waclawek.jan

The issue comes from the RCC, selecting the PLLP clock source instead of PLLSAI1 the PDM peripheral works. It seems an CUBEMX bug generating the RCC config function.

10 replies

waclawek.jan
waclawek.jan
Super User
October 18, 2019

How is SAI clock set in RCC?

Read out and check/post content of relevant RCC, SAI and GPIO registers.

JW

polotomino
polotominoAuthor
Associate II
October 18, 2019


/**
 * @brief System Clock Configuration
 * @retval None
 */
void SystemClock_Config(void)
{
 RCC_OscInitTypeDef RCC_OscInitStruct = {0};
 RCC_ClkInitTypeDef RCC_ClkInitStruct = {0};
 RCC_PeriphCLKInitTypeDef PeriphClkInitStruct = {0};

 /** Configure the main internal regulator output voltage
 */
 __HAL_PWR_VOLTAGESCALING_CONFIG(PWR_REGULATOR_VOLTAGE_SCALE1);
 /** Initializes the CPU, AHB and APB busses clocks
 */
 RCC_OscInitStruct.OscillatorType = RCC_OSCILLATORTYPE_HSI|RCC_OSCILLATORTYPE_HSE;
 RCC_OscInitStruct.HSEState = RCC_HSE_ON;
 RCC_OscInitStruct.HSIState = RCC_HSI_ON;
 RCC_OscInitStruct.HSICalibrationValue = RCC_HSICALIBRATION_DEFAULT;
 RCC_OscInitStruct.PLL.PLLState = RCC_PLL_ON;
 RCC_OscInitStruct.PLL.PLLSource = RCC_PLLSOURCE_HSI;
 RCC_OscInitStruct.PLL.PLLM = RCC_PLLM_DIV1;
 RCC_OscInitStruct.PLL.PLLN = 8;
 RCC_OscInitStruct.PLL.PLLP = RCC_PLLP_DIV31;
 RCC_OscInitStruct.PLL.PLLR = RCC_PLLR_DIV2;
 RCC_OscInitStruct.PLL.PLLQ = RCC_PLLQ_DIV2;
 if (HAL_RCC_OscConfig(&RCC_OscInitStruct) != HAL_OK)
 {
 Error_Handler();
 }
 /** Configure the SYSCLKSource, HCLK, PCLK1 and PCLK2 clocks dividers
 */
 RCC_ClkInitStruct.ClockType = RCC_CLOCKTYPE_HCLK4|RCC_CLOCKTYPE_HCLK2
 |RCC_CLOCKTYPE_HCLK|RCC_CLOCKTYPE_SYSCLK
 |RCC_CLOCKTYPE_PCLK1|RCC_CLOCKTYPE_PCLK2;
 RCC_ClkInitStruct.SYSCLKSource = RCC_SYSCLKSOURCE_PLLCLK;
 RCC_ClkInitStruct.AHBCLKDivider = RCC_SYSCLK_DIV1;
 RCC_ClkInitStruct.APB1CLKDivider = RCC_HCLK_DIV1;
 RCC_ClkInitStruct.APB2CLKDivider = RCC_HCLK_DIV1;
 RCC_ClkInitStruct.AHBCLK2Divider = RCC_SYSCLK_DIV2;
 RCC_ClkInitStruct.AHBCLK4Divider = RCC_SYSCLK_DIV1;

 if (HAL_RCC_ClockConfig(&RCC_ClkInitStruct, FLASH_LATENCY_3) != HAL_OK)
 {
 Error_Handler();
 }
 /** Initializes the peripherals clocks
 */
 PeriphClkInitStruct.PeriphClockSelection = RCC_PERIPHCLK_SMPS|RCC_PERIPHCLK_SAI1
 |RCC_PERIPHCLK_I2C1|RCC_PERIPHCLK_I2C3
 |RCC_PERIPHCLK_ADC;
 PeriphClkInitStruct.PLLSAI1.PLLN = 6;
 PeriphClkInitStruct.PLLSAI1.PLLP = RCC_PLLP_DIV31;
 PeriphClkInitStruct.PLLSAI1.PLLQ = RCC_PLLQ_DIV2;
 PeriphClkInitStruct.PLLSAI1.PLLR = RCC_PLLR_DIV2;
 PeriphClkInitStruct.PLLSAI1.PLLSAI1ClockOut = RCC_PLLSAI1_SAI1CLK;
 PeriphClkInitStruct.I2c1ClockSelection = RCC_I2C1CLKSOURCE_PCLK1;
 PeriphClkInitStruct.I2c3ClockSelection = RCC_I2C3CLKSOURCE_PCLK1;
 PeriphClkInitStruct.Sai1ClockSelection = RCC_SAI1CLKSOURCE_PLLSAI1;
 PeriphClkInitStruct.AdcClockSelection = RCC_ADCCLKSOURCE_PLL;
 PeriphClkInitStruct.SmpsClockSelection = RCC_SMPSCLKSOURCE_HSI;
 PeriphClkInitStruct.SmpsDivSelection = RCC_SMPSCLKDIV_RANGE1;

 if (HAL_RCCEx_PeriphCLKConfig(&PeriphClkInitStruct) != HAL_OK)
 {
 Error_Handler();
 }
}

waclawek.jan
waclawek.jan
Super User
October 18, 2019

I don't use Cube and don't understand its gibberish.

It appears you are using the SAI PLL's output - is that PLL running? Maybe there's no simple way to test that on your STM32 model, then use for SAI for testing a clock you are sure it's running.

Read out and check/post content of relevant RCC, SAI and GPIO registers.

JW

polotomino
polotominoAuthor
Associate II
October 18, 2019

Thank you su much.

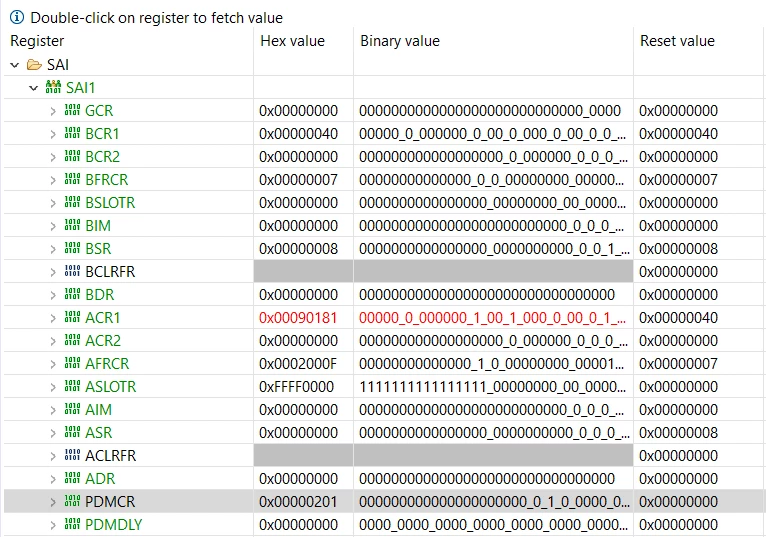

Here the SAI registers:

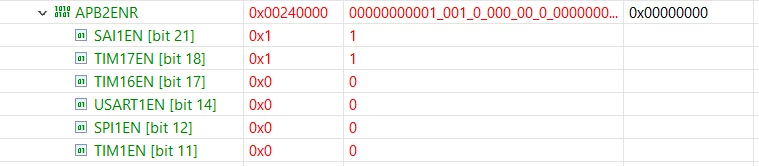

The RCC :

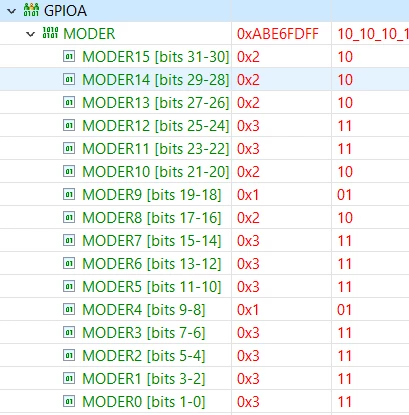

and lastly the GPIOs configuration:


PA10 is the SAI_D1 and PA8_SAI1_CK2

waclawek.jan
waclawek.jan
Super User
October 18, 2019

OK and GPIO_AFRx is set to the appropriate AF?

I have no experience with SAI with PDM, so you may want to check that yourself against the RM.

Did you make sure there is a valid clock input in RCC, maybe switching to a clock source which is known working (such as the main PLL)?

JW

polotomino
polotominoAuthorAnswer
Associate II
October 21, 2019

Thanks waclawek.jan

The issue comes from the RCC, selecting the PLLP clock source instead of PLLSAI1 the PDM peripheral works. It seems an CUBEMX bug generating the RCC config function.

waclawek.jan
waclawek.jan
Super User
October 21, 2019

OK so problem solved? Then please select your post as "Best" to mark the thread as solved.

JW

@Imen DAHMEN​  - so this appears that CubeMX does not generate code for initializing the PLLSAI for the 'WB55, can this please be checked?

Khouloud ZEMMELI
Khouloud ZEMMELI
ST Employee
October 28, 2019

​Hello @Community member​  Did you mean by "  CubeMX does not generate code for initializing the PLLSAI for the 'WB55" that there's a missed  line of code ?

Thanks,

Khouloud

Khouloud ZEMMELI
Khouloud ZEMMELI
ST Employee
October 28, 2019

​and if yes which lignes of code ?

Thanks  @Community member​

Khouloud

waclawek.jan
waclawek.jan
Super User
October 28, 2019

Hi @Khouloud ZEMMELI​ ,

Sorry, I don't know - I don't use the 'WB55 nor CubeMX, I just tried to help here. It appears that when @polotomino​  changed the input clock from PLLSAI1 to the main PLL's output, PDM started to work, so there might be the possibility that the configuration generated by CubeMX does not configure PLLSAI1 properly.

Jan

polotomino
polotominoAuthor
Associate II
October 30, 2019

Thanks @Community member​. Yes, if I select the PLLSAI1P as the input clock source for the SAI1 Module the peripheral doesn't work, with the PLLP it does.

Of course I configured both PLLs to provide the same freq.

Khouloud ZEMMELI
Khouloud ZEMMELI
ST Employee
October 30, 2019

​Please try with the latest CubeMX version (5.4.0)

Thanks,

Khouloud

Khouloud ZEMMELI
Khouloud ZEMMELI
ST Employee
October 28, 2019

​so @polotomino​  could you please give me more details about your request ?

Thanks,

Khouloud.
