STM32WB VDDUSB 0V
- June 2, 2020
- 1 reply
- 978 views
Hi,

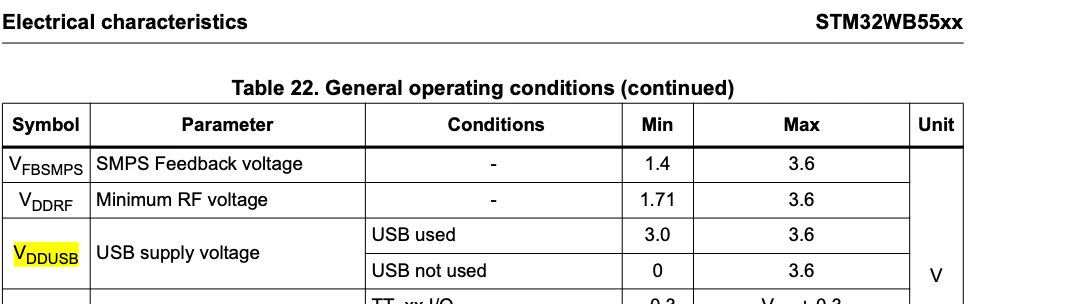

According to the datasheet I must supply 3.3V to VDDUSB when USB is in use, but my question is - Can I connect 3.3V LDO directly to VBUS, so that when USB is not present - USBVDD pin is 0V.
Its is unclear whether this works from the datasheet. In one place it says I can have 0V there, in other - that I MUST connect it to VDD
Thanks,
Tim
