TSC in STM32WB using STM32Cube

  • July 15, 2019
  • 2 replies
  • 1576 views

Hi Sir/Madam,

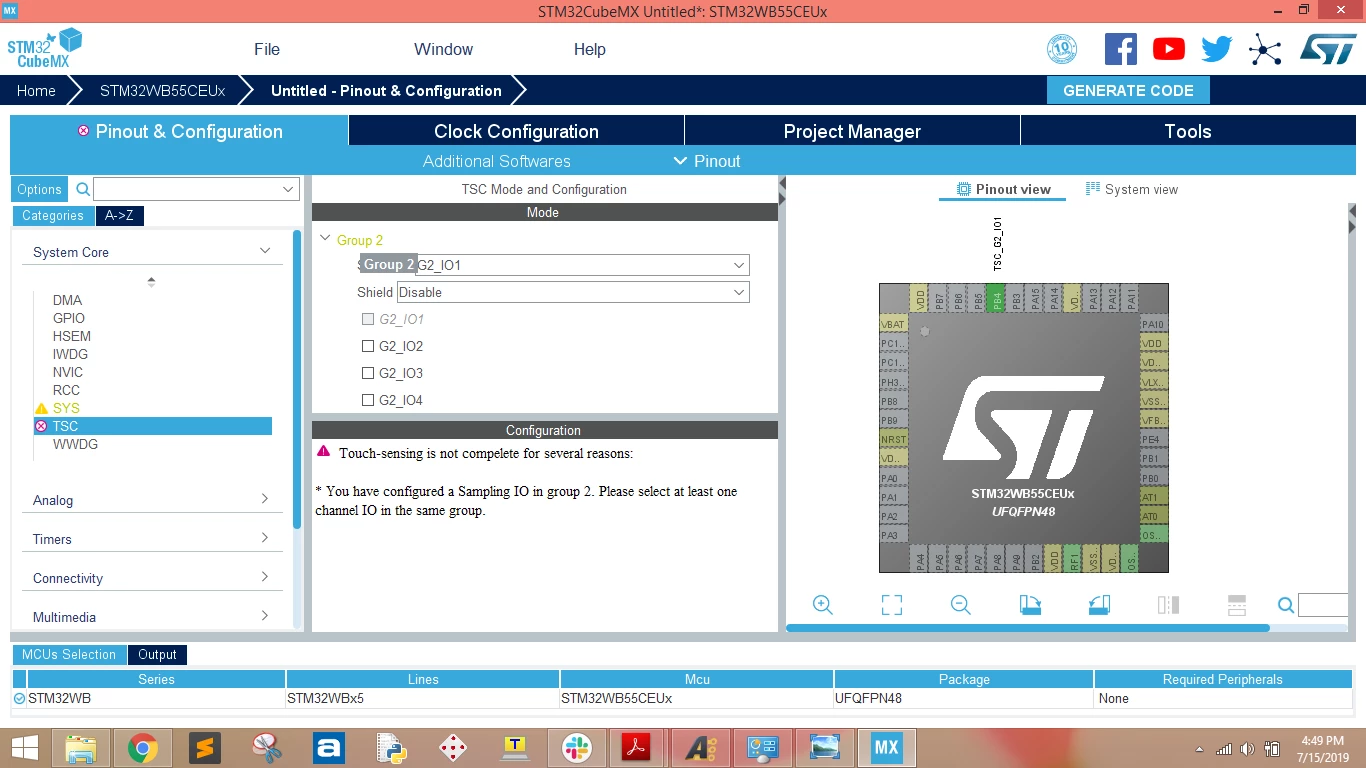

In STM32CubeMX, the TSC in System core, we finding only group-2 with four I/Os. I am thinking that there must be group-1, group-3, group-4. So that we can implement TSC with more keys.

please suggest me proper settings required to do this.

Thanks & Regards


This topic has been closed for replies.
Best answer by Remi QUINTIN

According STM32CubeMx:

On STM32WB55 QFN48 we support only 1 group (G2).

  • 3 buttons (e.g)
    • One Sampling capacitor (G2_IO1)
    • 3 sensors (G2_IO2/3/4).

 On STM32WB55 QFN68 we support 3 groups (G1 G2 G3).

  • 1 Shield (e.g)
    • One Sampling capacitor (G1_IO1)
    • 1 Shield (G1_IO2).
  •  6 buttons (e.g)
    • One Sampling capacitor (G2_IO1)
    • 3 sensors (G2_IO2/3/4).
    • One Sampling capacitor (G3_IO1)
    • 3 sensors (G3_IO2/3/4).


2 replies

Remi QUINTIN
Remi QUINTINAnswer
Technical Moderator
July 15, 2019

According STM32CubeMx:

On STM32WB55 QFN48 we support only 1 group (G2).

  • 3 buttons (e.g)
    • One Sampling capacitor (G2_IO1)
    • 3 sensors (G2_IO2/3/4).

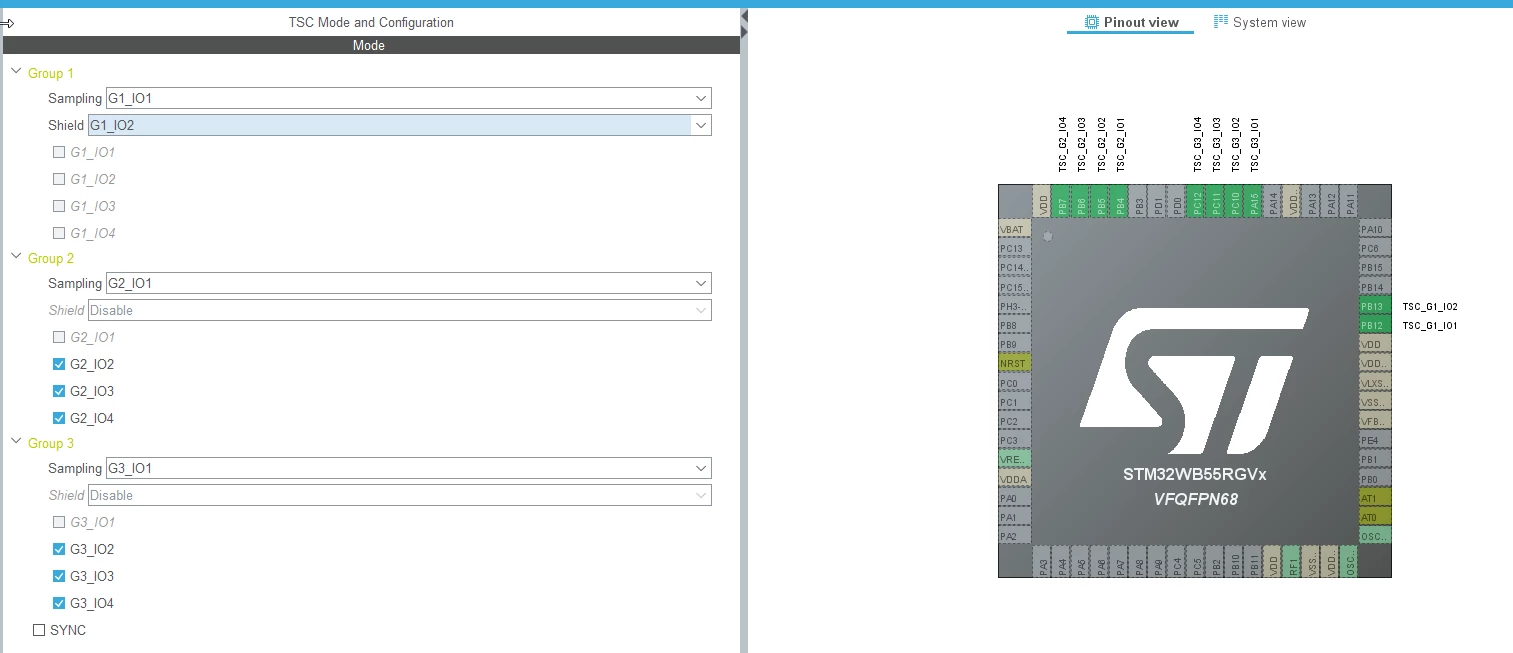

 On STM32WB55 QFN68 we support 3 groups (G1 G2 G3).

  • 1 Shield (e.g)
    • One Sampling capacitor (G1_IO1)
    • 1 Shield (G1_IO2).
  •  6 buttons (e.g)
    • One Sampling capacitor (G2_IO1)
    • 3 sensors (G2_IO2/3/4).
    • One Sampling capacitor (G3_IO1)
    • 3 sensors (G3_IO2/3/4).


gousebasha shaik
gousebasha shaikAuthor
Associate II
July 17, 2019

Hi Sir,

Initially, we chose the STM32WB55 (QFN48) it has only one group. Currently we required a slider (linear). So we are moving to the QFN68 package. In my case, i need six plus keys, So Can I avoid the shielding to get the 9 keys? One Sheilding I/O is enough to all the keys?

Thanks You
