How to setup Eclipse for for cross compilation and cross debugging?

Hello,

Basically you need to establish in Eclipse the same environemnt as created by sourcing environment-setup-cortexa7t2hf-neon-vfpv4-ostl-linux-gnueabi

Following are the settings I use for Eclipse IDE for C/C++ Developers / Version: 2019-03 (4.11.0)

First you need choose during creation of a new project select "Cross gcc".

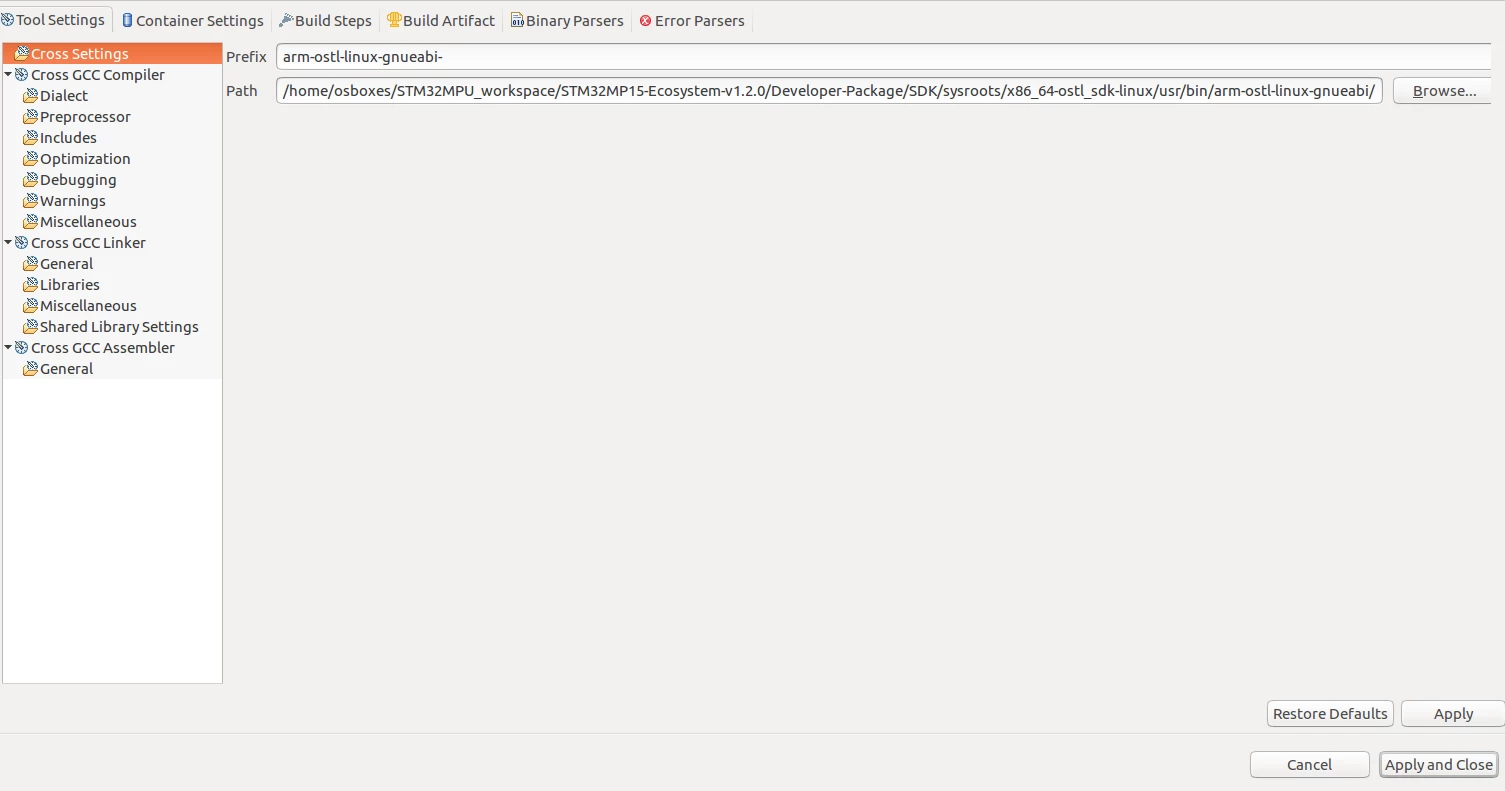

Then set in cross settings prefix and path

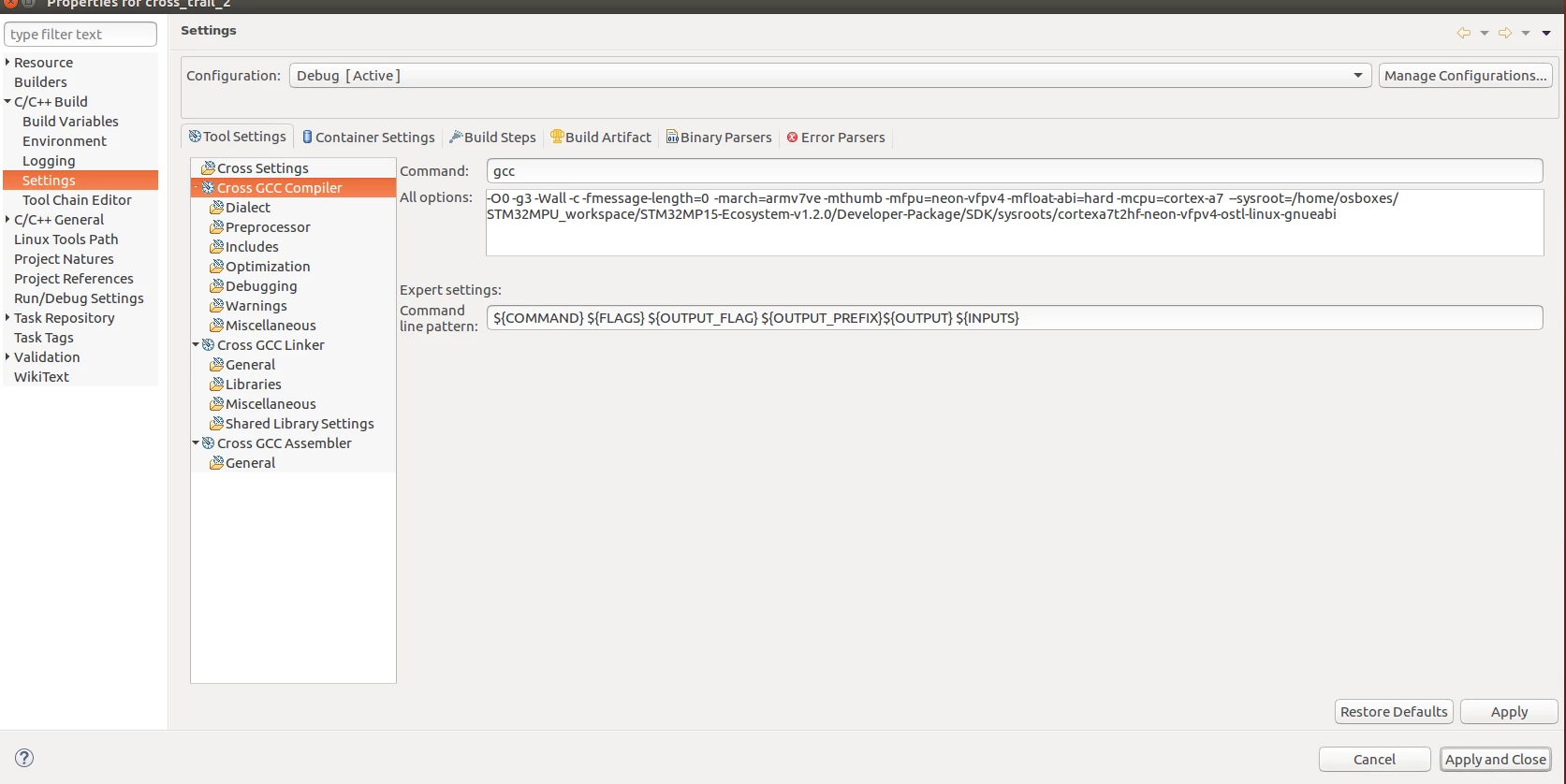

In compiler settings I use:

-O0 -g3 -Wall -c -fmessage-length=0 -march=armv7ve -mthumb -mfpu=neon-vfpv4 -mfloat-abi=hard -mcpu=cortex-a7 --sysroot=/home/osboxes/STM32MPU_workspace/STM32MP15-Ecosystem-v1.2.0/Developer-Package/SDK/sysroots/cortexa7t2hf-neon-vfpv4-ostl-linux-gnueabi

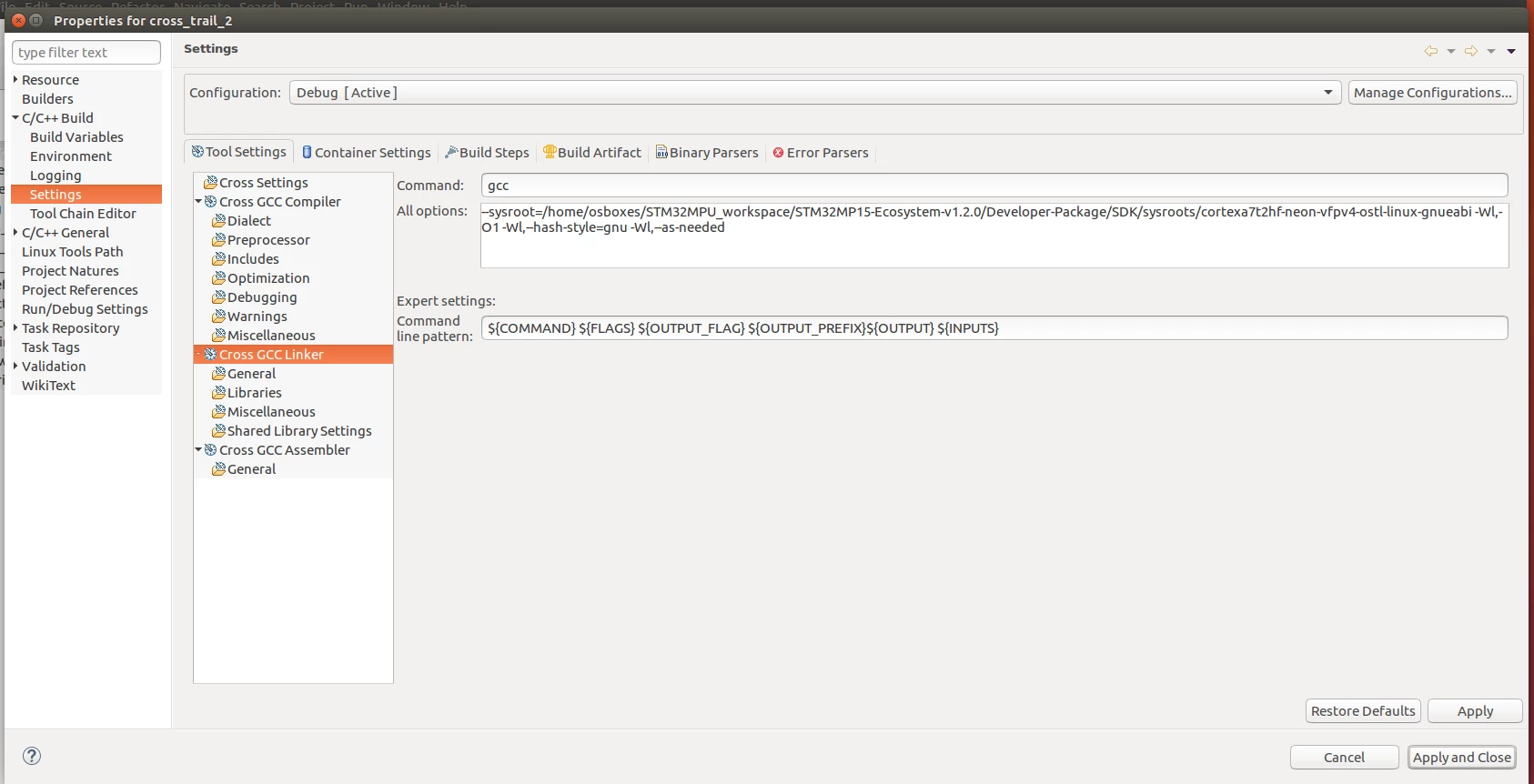

And linker settings:  -march=armv7ve -mthumb -mfpu=neon-vfpv4 -mfloat-abi=hard -mcpu=cortex-a7

--sysroot=/home/osboxes/STM32MPU_workspace/STM32MP15-Ecosystem-v1.2.0/Developer-Package/SDK/sysroots/cortexa7t2hf-neon-vfpv4-ostl-linux-gnueabi -Wl,-O1 -Wl,--hash-style=gnu -Wl,--as-needed

Hope this helps

BR

Milan

Fine.

many thanks

these are compiler and linker settings

could you specify the debugger settings?

with great respect to you

Alexander

Hi Alexander,

I prepared thorough setup here:

https://community.st.com/s/question/0D53W000004HK91SAG/how-to-connect-and-debug-cortexa7-cores-on-stm32mp157cdk2

Best regards,

Milan
