MIPI DSI IBIS MODEL for STM32MP255

  • September 17, 2025
  • 1 reply
  • 834 views

Hi,

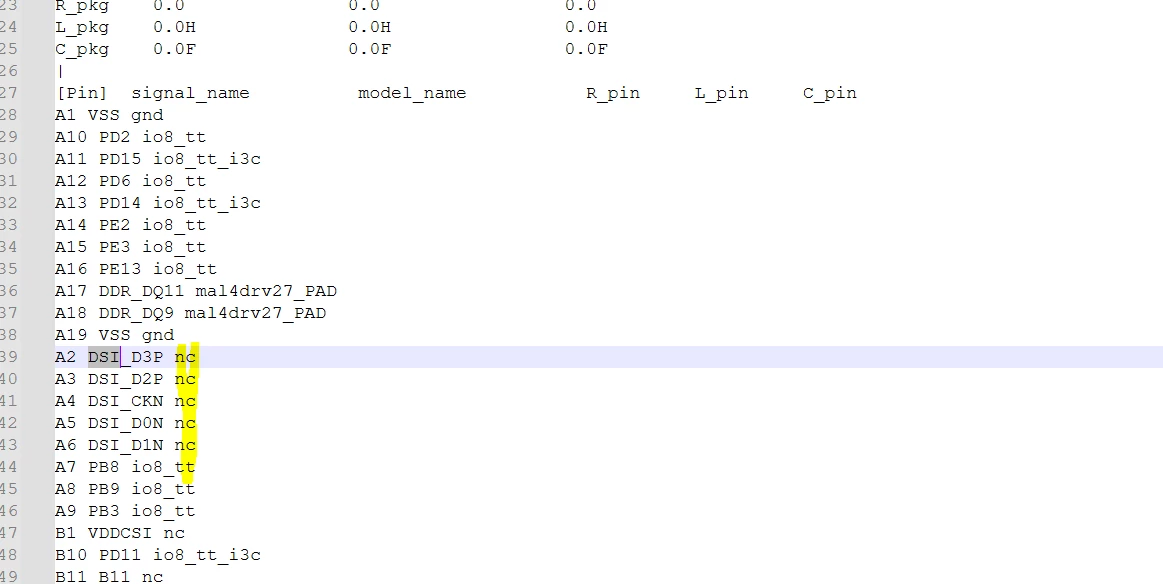

I tried exporting the IBIS model from ST website. On importing model to SI tool I can see that there is no model assigned to DSI lines. It is showing NC. Can you share the IBIS model with MIPI drivers in it. or share some IBIS model which I can use for my simulation of MIPI line interface






1 reply

Z
ZAKARIA_C1
Technical Moderator
April 29, 2026

Hello @DJ_IND,

Please check the latest version of the IBIS model.
You will find that the DSI has been successfully integrated and correctly connected.
https://www.st.com/resource/en/ibis_model/stm32mp2-ibis.zip
Thank you.
Best Regards,
Zakaria
