BUG CubeMX for Nucleo L4R5ZI

  • May 16, 2018
  • 3 replies
  • 2213 views
Posted on May 16, 2018 at 16:13

Hi CUBEMX Team,

for NucleoL4R5ZI

LPUART1 is taking as GPIOC port.

It has to be GPIOG port.


Please fix this

Thanks

Phanirajkiran

#cubemx #bug
This topic has been closed for replies.
Best answer by Nawres GHARBI
Posted on May 21, 2018 at 11:10

Hi

Phanirajkiran,

When loading the board, please select init peripherals and the LPUART will be at the right port.

Enabling manually the peripheral will select the first available port and not the dedicated one on the board

3 replies

I
Imen.D
Technical Moderator
May 16, 2018
Posted on May 16, 2018 at 16:58

Hello

phanirajkiran.ma

,

Which CubeMx version are you using?

With Regards

Imen

"When your question is answered, please close this topic by clicking ""Accept as Solution"".ThanksImen"
Phanirajkiran M
Phanirajkiran MAuthor
Senior
May 16, 2018
Posted on May 16, 2018 at 17:05

Hi Imen,

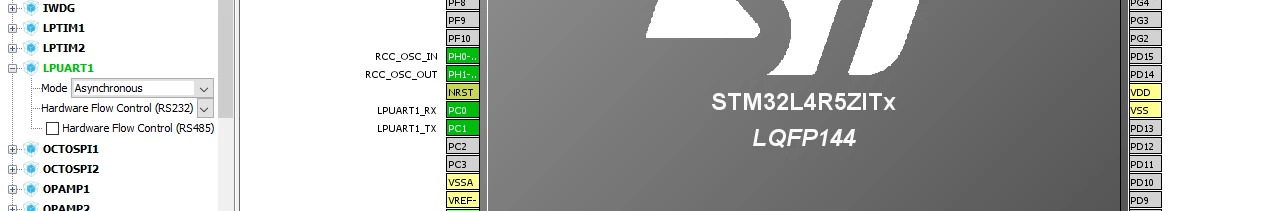

When  i clear pinouts and select LPUART it will go to GPIOC instead of GPIOG.

Thanks

Phanirajkiran

Tesla DeLorean
Tesla DeLorean
Guru
May 16, 2018
Posted on May 16, 2018 at 17:12

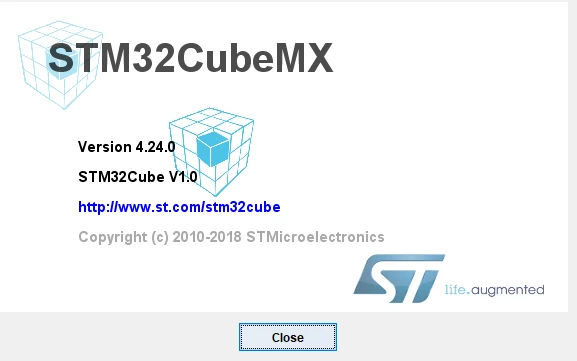

V4.24.0 is NOT current, try using the current version to confirm if the issue exists or has been fixed in the intervening months...

Tips, Buy me a coffee, or three.. PayPal VenmoUp vote any posts that you find helpful, it shows what's working..
Nawres GHARBI
Nawres GHARBIAnswer
Technical Moderator
May 21, 2018
Posted on May 21, 2018 at 11:10

Hi

Phanirajkiran,

When loading the board, please select init peripherals and the LPUART will be at the right port.

Enabling manually the peripheral will select the first available port and not the dedicated one on the board
