CUBE Bug? hall sensor TRGO MasterSlave selection

Posted on January 18, 2018 at 05:36

I am trying to configure the timers for a BLDC applications, so that the hall sensor change triggers another timer.

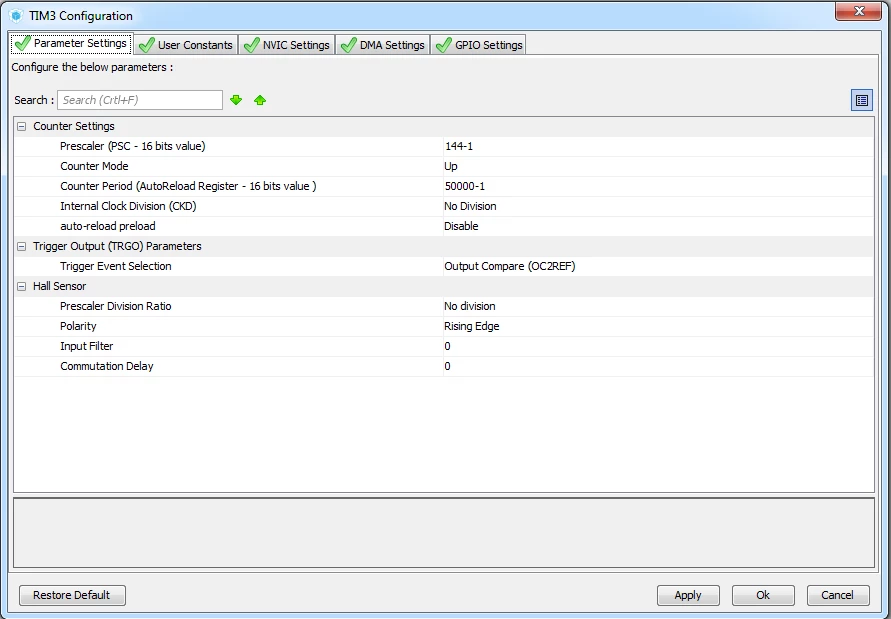

In cube, If you configure a timer as XOR ON/ Hall Sensor Mode, you can't configure it as a Master Timer.

In the configuration, the Master/Slave Mode disappears, and in the generated code, it automatically selects disabled.

Cube 4.23.0

#cubemx-configuration-tab #cube-mx #hall-effect-hall-timer #timer-master-slave #hall-sensors #bug
