CubeMX CAD models mixing LQFP144 and 208pinouts

  • October 21, 2024
  • 2 replies
  • 1345 views

Trying to export LQFP144 pinout to Altium CAD models with cubeMX.

But CubeMX is trying add pin #204 #202 #158, etc, on symbol for an L471 micro that doesn't even come in packages  bigger than 144 pins.  Altium chokes on this symbol, I imagine that's because the foot print only has 144pins.

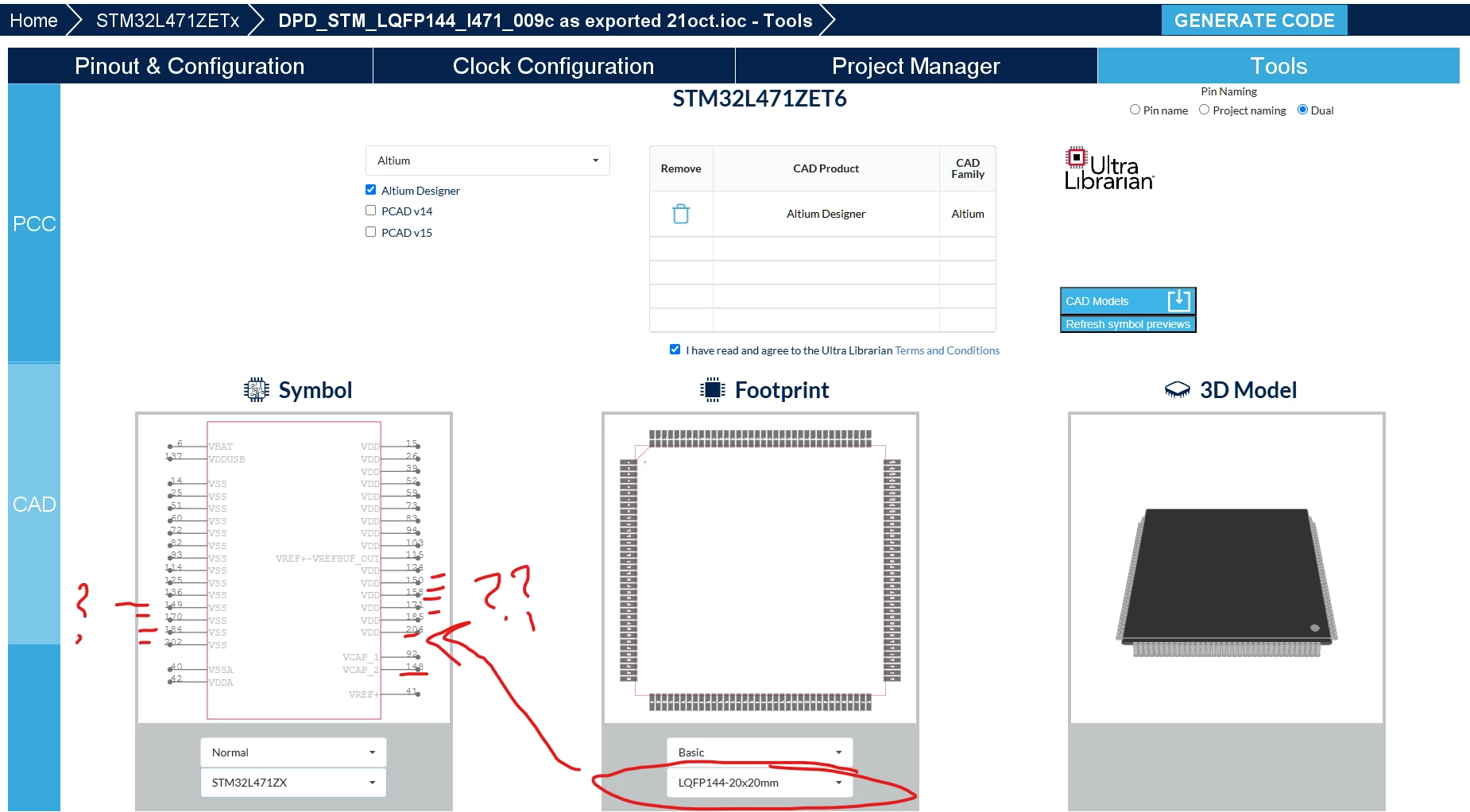

See screenshot below.  Will attach .ioc file if possible.



Screenshot 2024-10-21 180625.png

Best answer by Sarra.S

Hello @DixonDon,

This issue is fixed, please check new STM32CubeMX-6.14.0 published on st.com



2 replies

S
Sarra.S
ST Employee
October 22, 2024

Hello @DixonDon,

Thank you for spotting this!

This behavior will be investigated by the STM32cubeMX team (Internal ticket number: 194578), meanwhile, as a temporary workaround, you can manually edit the symbol in Altium Designer to remove the incorrect pins

To give better visibility on the answered topics, please click on Accept as Solution on the reply which solved your issue or answered your question.
S
Sarra.SAnswer
ST Employee
March 6, 2025

Hello @DixonDon,

This issue is fixed, please check new STM32CubeMX-6.14.0 published on st.com



To give better visibility on the answered topics, please click on Accept as Solution on the reply which solved your issue or answered your question.
