Inconsistent pin numbering

  • February 17, 2025
  • 2 replies
  • 991 views

Hi,

We are working on a board with the STM32H7S7Z8J6 in a BG144 package.

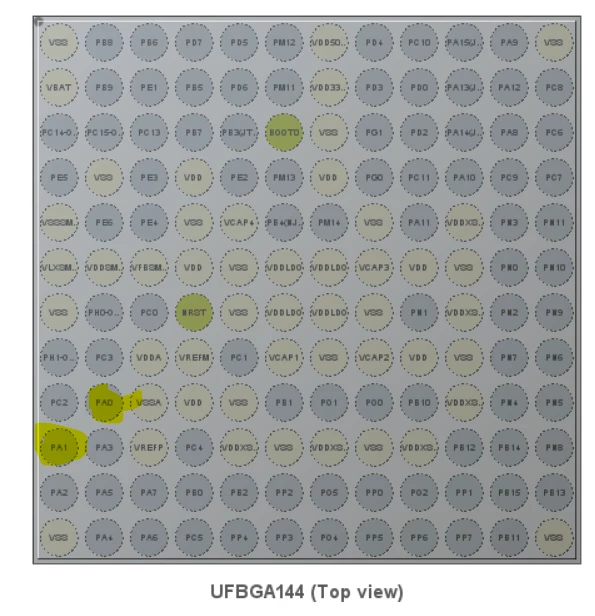

We use cubemx to create the correct pinout for this part, but we see the datasheet has different pinout then the CubeMX tool. Is this a bug in CubeMX?






Best answer by STTwo-32

Hello @leddel32

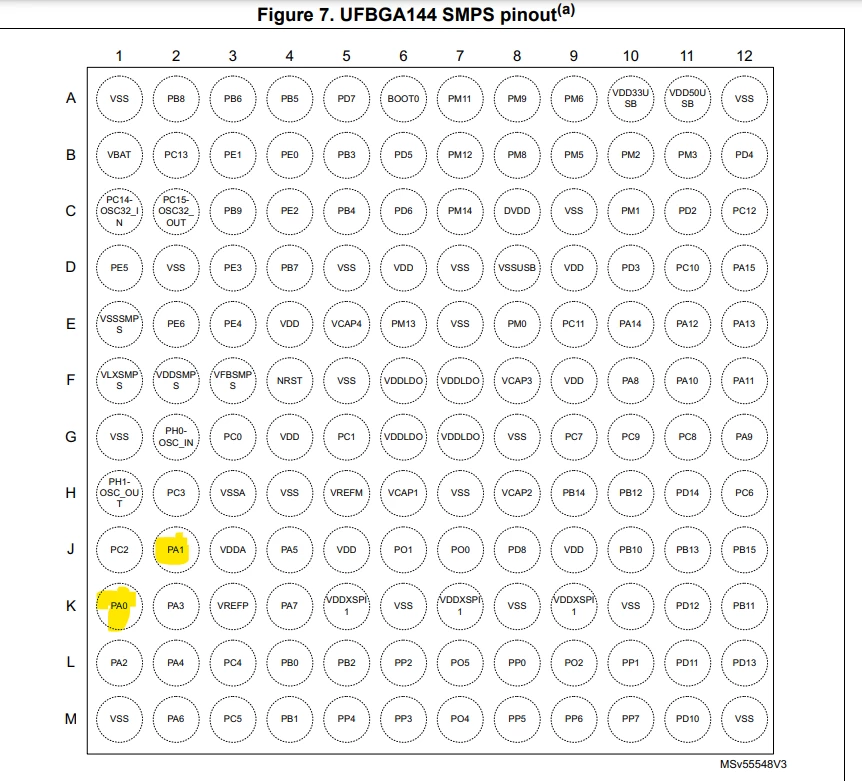

There is not any issue. The  Figure 7 of the DS14359 refer to the STM32H7S3Z8J6. The figure of the STM32H7S7Z8J6 is the figure 9 (same package but the STM32H7S7Z8J6 is clasified as GFx MCU. You can see this in table 2 of the datasheet).

Best Regards.

STTwo-32

2 replies

STTwo-32
STTwo-32Answer
Technical Moderator
February 17, 2025

Hello @leddel32

There is not any issue. The  Figure 7 of the DS14359 refer to the STM32H7S3Z8J6. The figure of the STM32H7S7Z8J6 is the figure 9 (same package but the STM32H7S7Z8J6 is clasified as GFx MCU. You can see this in table 2 of the datasheet).

Best Regards.

STTwo-32

To give better visibility on the answered topics, please click on Accept as Solution on the reply which solved your issue or answered your question.
L
leddel32Author
Associate II
February 18, 2025

You are right. We were looking at figure 7 instead of figure 9.

Thank you for your answer.
