Is it possible to automatically separate the code generated by STM32CubeIDE into headers and source files for each type of peripherals?

  • January 4, 2022
  • 2 replies
  • 3532 views

When I create a new project in STM32CubeIDE with the use of a configuration (.ioc) file, configure peripherals, and generate code, all handlers (such as I2C_HandleTypeDef, UART_HandleTypeDef, QSPI_HandleTypeDef, DMA_HandleTypeDef, etc.) and their initialization functions are placed in main.c file.

Is there a way to automatically split the code into multiple pairs of headers and source files (let's say, a header-source pair for UART, a header-source pair for I2C, etc.)?

I would like to define some custom parameters and functions related to my peripherals. Of course, I can create additional headers and source files. I would just prefer to group them all together without producing multiple files.

Thank you.

This topic has been closed for replies.
Best answer by TDK

> Is there a way to automatically split the code into multiple pairs of headers and source files (let's say, a header-source pair for UART, a header-source pair for I2C, etc.)?

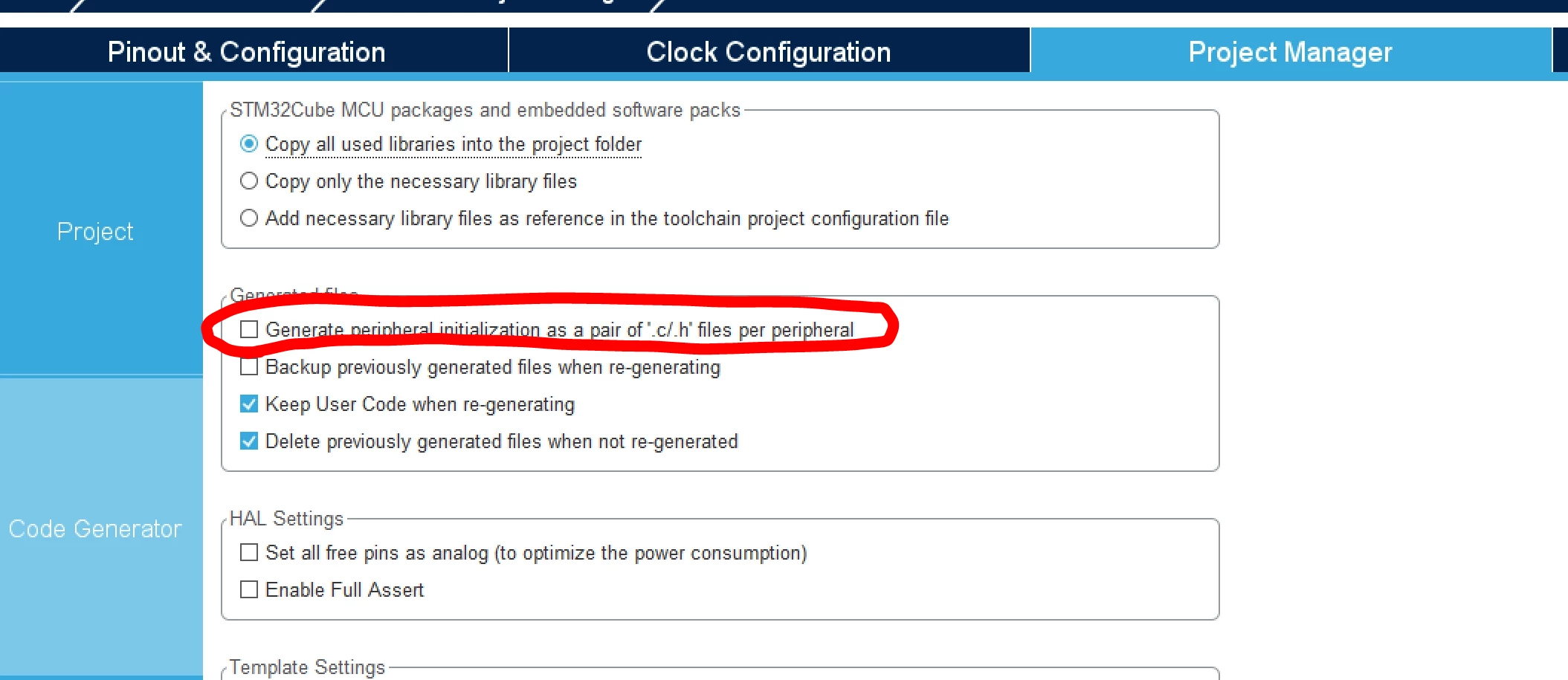

Yes. See the screenshot here:


2 replies

TDK
TDKAnswer
Super User
January 4, 2022

> Is there a way to automatically split the code into multiple pairs of headers and source files (let's say, a header-source pair for UART, a header-source pair for I2C, etc.)?

Yes. See the screenshot here:


"If you feel a post has answered your question, please click ""Accept as Solution""."
MKara.13
Associate
July 26, 2022

thanks!

VVakh.1
VVakh.1Author
Associate II
January 4, 2022

Thank you a lot! It helped, my issue is resolved.
