Servo not working with STM32F767Zi

I'm trying to control a Servo motor (MG90S) using the STM32F767Zi by leveraging the TIM2 Channel 1 (PA0).

The Servo requires a 50Hz frequency (20ms) signal.

The APB1 bus gives TIM2 timer port 108MHz frequency.

The Servo is powered through a 5V port through STM and STM is powered through USB type B cable from my laptop.

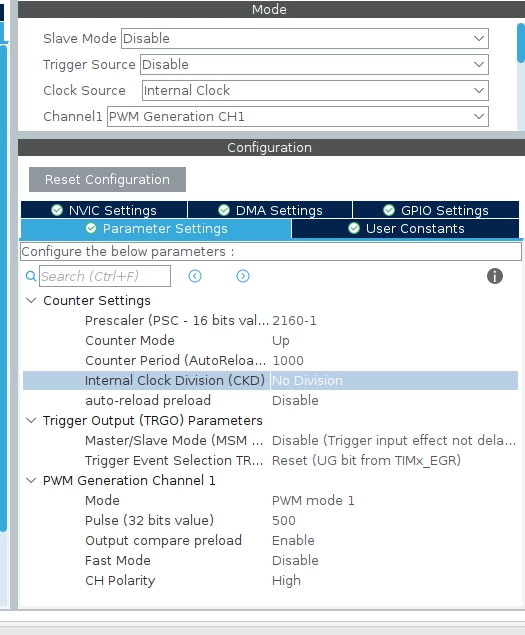

I'm using the below calculations for PSC and ARR and have given a Duty Cycle of 2.5% - 12.5%. (0.5ms - 2.5ms)

My Timer_freq TIM2(APB1) is 108MHZ(108000000)

Required Frequency is 50Hz

i.e PSC*ARR = 108000000/50 == 2160000

PSC = 2160-1

ARR = 1000

Duty Cycle given is: (since ARR = 1000 i.e 100%)

TIM2->CCR1 = 25 (0 degrees - 2.5%)

TIM2->CCR1 = 125 (180 degrees - 12.5%)

Code Snippet

MX_GPIO_Init();
 MX_TIM2_Init();
 /* USER CODE BEGIN 2 */
 HAL_TIM_PWM_Start(&htim2, TIM_CHANNEL_1);

 /* USER CODE END 2 */

 /* Infinite loop */
 /* USER CODE BEGIN WHILE */
 while (1)
 {
 /* USER CODE END WHILE */

 TIM2->CCR1 = 25; // 0 degrees
 HAL_Delay(500);

 TIM2->CCR1 = 75; // 90 degrees
 HAL_Delay(500);

 TIM2->CCR1 = 125; // 180 degrees
 HAL_Delay(500);

 /* USER CODE BEGIN 3 */
 }

My servo is not responding.

I used the same calculations to control my servo with STM32f103 (Bluepill) and it worked fine.

I tried connecting the servo to an external power supply (ground being common between the Servo, STM32F7 and the power source) - Still no response from the Servo. Again, the Bluepill works with the same setup.

I have checked the 5V port of STM32F7 using a multimeter and it gives the correct voltage reading.

So, the next step that I’m planning to do is to check the signal port using an oscilloscope/logic analyzer. I’ll update on that soon.

It would be great if anyone can point out if I’m doing something wrong or help me with the right direction.
