Sigh - another CubeMX bug...

  • February 27, 2018
  • 1 reply
  • 546 views
Posted on February 27, 2018 at 01:04

Version 4.24.0 STM32CubeMX - STM32F303RCTx has pin 18 as PF4 instead VSS - thought I had an extra signal!!

#cubemx-v4.24
This topic has been closed for replies.

1 reply

waclawek.jan
waclawek.jan
Super User
February 27, 2018
Posted on February 27, 2018 at 17:27

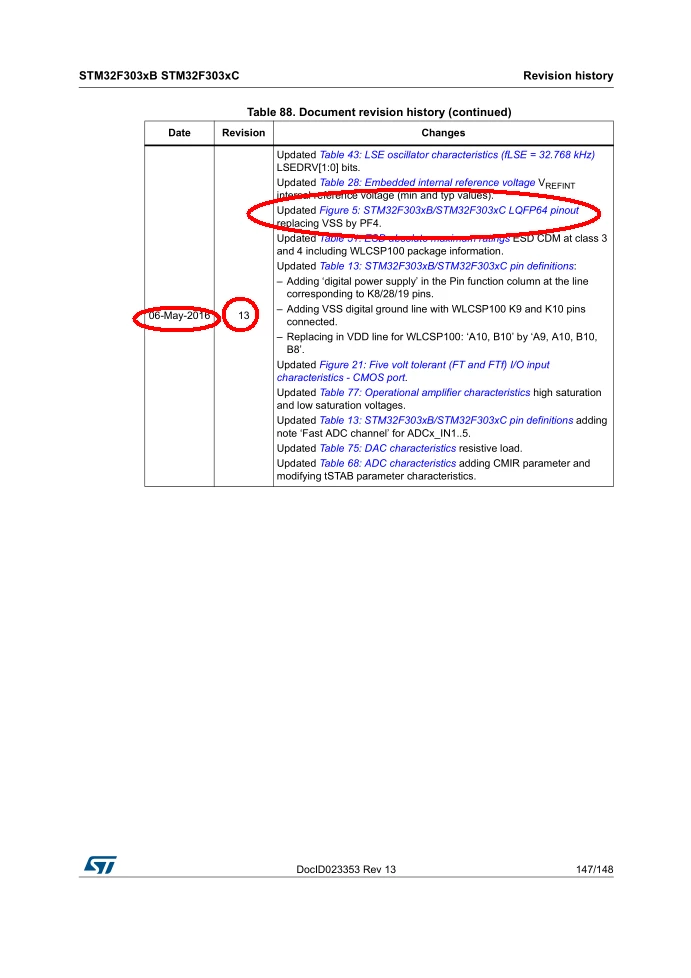

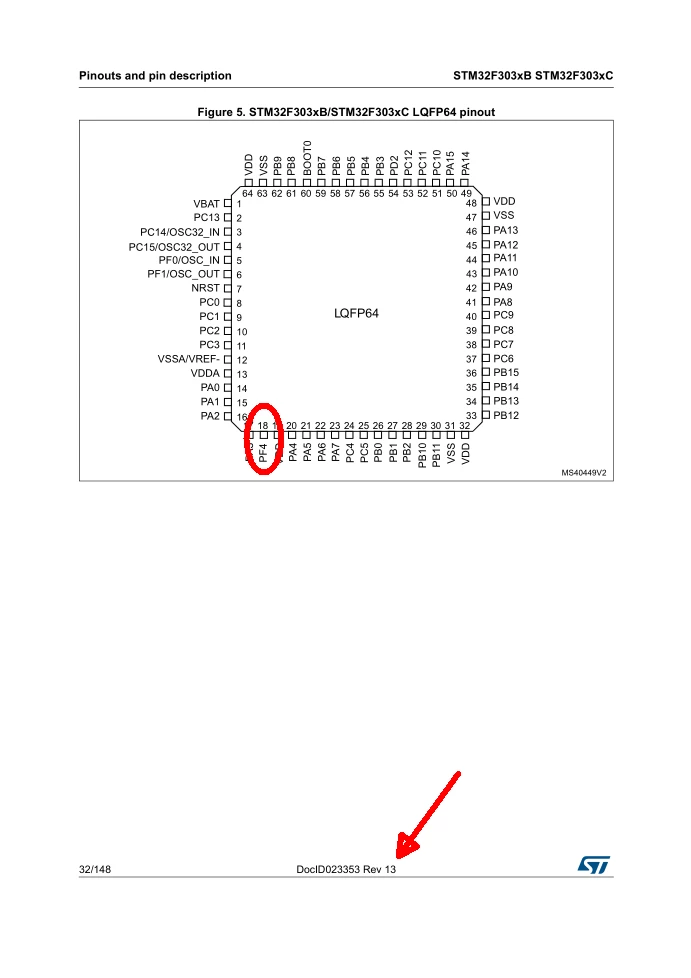

But it probably *is* PF4.


JW

frackers
frackersAuthor
Senior
February 28, 2018
Posted on February 28, 2018 at 11:25

Very well spotted - I hadn't considered that I had an old(er) version of the spec. I must have downloaded it just a month or so before the update as that is when I started using the F303.
