Some problems in STM32CubeMX Version 4.25.1

  • May 24, 2018
  • 3 replies
  • 1997 views
Posted on May 24, 2018 at 09:10

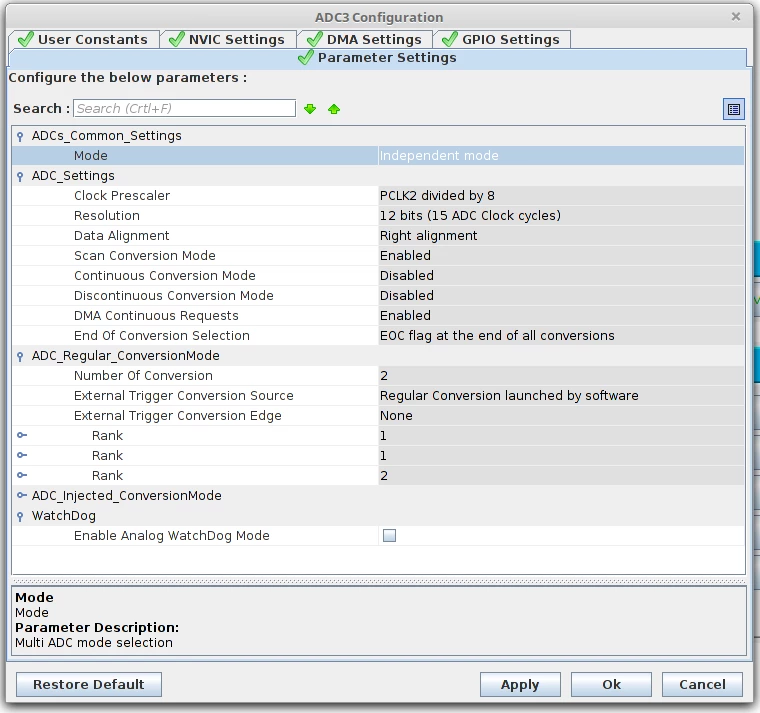

Extra line  Rank 1

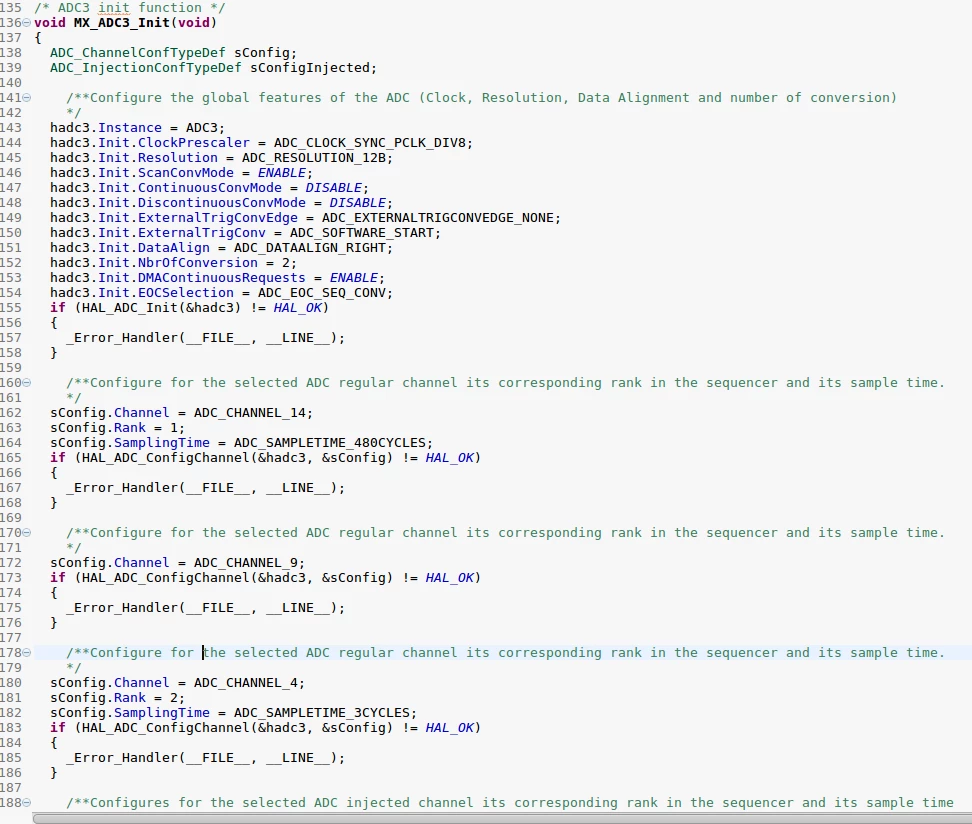

and the code is generated the same

ADC3 stopped working

How to fix the problem?

#stm32cubemx #adc3 #stm32cubemx-4.25.1
This topic has been closed for replies.
Best answer by Houda GHABRI
Posted on May 28, 2018 at 11:21

Hi

Vid.Max

,

Thanks for your feedback.

This issue will be fixed in a next CubeMX release (4.1).

Regards,

Houda

3 replies

op3 op3
op3 op3Author
Associate II
May 24, 2018
Posted on May 24, 2018 at 09:22

line ADC3.  in .ioc file

ADC3.Channel-0\#ChannelRegularConversion=ADC_CHANNEL_9

ADC3.Channel-205\#ChannelRegularConversion=ADC_CHANNEL_14

ADC3.Channel-206\#ChannelInjectedConversion=ADC_CHANNEL_4

ADC3.Channel-207\#ChannelInjectedConversion=ADC_CHANNEL_15

ADC3.Channel-208\#ChannelInjectedConversion=ADC_CHANNEL_6

ADC3.Channel-209\#ChannelInjectedConversion=ADC_CHANNEL_7

ADC3.Channel-210\#ChannelRegularConversion=ADC_CHANNEL_4

ADC3.Channel-IN14=ADC_CHANNEL_14

ADC3.Channel-IN15=ADC_CHANNEL_15

ADC3.Channel-IN4=ADC_CHANNEL_4

ADC3.Channel-IN6=ADC_CHANNEL_6

ADC3.Channel-IN7=ADC_CHANNEL_7

ADC3.Channel-IN8=ADC_CHANNEL_8

ADC3.Channel-IN9=ADC_CHANNEL_9

ADC3.ClockPrescaler=ADC_CLOCK_SYNC_PCLK_DIV8

ADC3.ContinuousConvMode=DISABLE

ADC3.DMAContinuousRequests=ENABLE

ADC3.DataAlign=ADC_DATAALIGN_RIGHT

ADC3.DiscontinuousConvMode=DISABLE

ADC3.EOCSelection=ADC_EOC_SEQ_CONV

ADC3.EnableAnalogWatchDog=false

ADC3.ExternalTrigConv=ADC_SOFTWARE_START

ADC3.ExternalTrigConvEdge=ADC_EXTERNALTRIGCONVEDGE_NONE

ADC3.ExternalTrigInjecConv=ADC_INJECTED_SOFTWARE_START

ADC3.ExternalTrigInjecConvEdge=ADC_EXTERNALTRIGINJECCONVEDGE_NONE

ADC3.IPParameters=Channel-IN4,Channel-IN6,Channel-IN7,Channel-IN8,Channel-IN9,Channel-IN14,Channel-IN15,ClockPrescaler,Channel-205\#ChannelRegularConversion,master,NbrOfConversion,NbrOfConversionFlag,Channel-0\#ChannelRegularConversion,Resolution,DataAlign,ScanConvMode,ContinuousConvMode,DiscontinuousConvMode,DMAContinuousRequests,EOCSelection,ExternalTrigConv,ExternalTrigConvEdge,InjNumberOfConversion,EnableAnalogWatchDog,Rank-0\#ChannelRegularConversion,SamplingTime-0\#ChannelRegularConversion,Rank-205\#ChannelRegularConversion,SamplingTime-205\#ChannelRegularConversion,Rank-206\#ChannelInjectedConversion,Channel-206\#ChannelInjectedConversion,SamplingTime-206\#ChannelInjectedConversion,InjectedOffset-206\#ChannelInjectedConversion,Rank-207\#ChannelInjectedConversion,Channel-207\#ChannelInjectedConversion,SamplingTime-207\#ChannelInjectedConversion,InjectedOffset-207\#ChannelInjectedConversion,Rank-208\#ChannelInjectedConversion,Channel-208\#ChannelInjectedConversion,SamplingTime-208\#ChannelInjectedConversion,InjectedOffset-208\#ChannelInjectedConversion,Rank-209\#ChannelInjectedConversion,Channel-209\#ChannelInjectedConversion,SamplingTime-209\#ChannelInjectedConversion,InjectedOffset-209\#ChannelInjectedConversion,Rank-210\#ChannelRegularConversion,Channel-210\#ChannelRegularConversion,SamplingTime-210\#ChannelRegularConversion,ExternalTrigInjecConv,ExternalTrigInjecConvEdge,InjectedConvMode

ADC3.InjNumberOfConversion=4

ADC3.InjectedConvMode=None

ADC3.InjectedOffset-206\#ChannelInjectedConversion=0

ADC3.InjectedOffset-207\#ChannelInjectedConversion=0

ADC3.InjectedOffset-208\#ChannelInjectedConversion=0

ADC3.InjectedOffset-209\#ChannelInjectedConversion=0

ADC3.NbrOfConversion=2

ADC3.NbrOfConversionFlag=1

ADC3.Rank-0\#ChannelRegularConversion=1

ADC3.Rank-205\#ChannelRegularConversion=1

ADC3.Rank-206\#ChannelInjectedConversion=1

ADC3.Rank-207\#ChannelInjectedConversion=2

ADC3.Rank-208\#ChannelInjectedConversion=3

ADC3.Rank-209\#ChannelInjectedConversion=4

ADC3.Rank-210\#ChannelRegularConversion=2

ADC3.Resolution=ADC_RESOLUTION_12B

ADC3.SamplingTime-0\#ChannelRegularConversion=ADC_SAMPLETIME_480CYCLES

ADC3.SamplingTime-205\#ChannelRegularConversion=ADC_SAMPLETIME_480CYCLES

ADC3.SamplingTime-206\#ChannelInjectedConversion=ADC_SAMPLETIME_480CYCLES

ADC3.SamplingTime-207\#ChannelInjectedConversion=ADC_SAMPLETIME_480CYCLES

ADC3.SamplingTime-208\#ChannelInjectedConversion=ADC_SAMPLETIME_480CYCLES

ADC3.SamplingTime-209\#ChannelInjectedConversion=ADC_SAMPLETIME_480CYCLES

ADC3.SamplingTime-210\#ChannelRegularConversion=ADC_SAMPLETIME_3CYCLES

ADC3.ScanConvMode=ENABLE

ADC3.master=1
Khouloud GARSI
Khouloud GARSI
Technical Moderator
May 24, 2018
Posted on May 24, 2018 at 09:42

Hi

Vid.Max

‌

Could you please precise the device you're using and if possible share your complete ioc file.

Khouloud.

op3 op3
op3 op3Author
Associate II
May 24, 2018
Posted on May 24, 2018 at 10:05

The original post was too long to process during our migration. Please click on the provided URL to read the original post. https://st--c.eu10.content.force.com/sfc/dist/version/download/?oid=00Db0000000YtG6&ids=0680X000006I6u1&d=%2Fa%2F0X0000000bxg%2FPRqzGRYWnMhb9Wb2qD9ehl18t7qBQFKjHokoCwssdH4&asPdf=false
Khouloud GARSI
Khouloud GARSI
Technical Moderator
May 24, 2018
Posted on May 24, 2018 at 11:39

Hello

Vid.Max

‌,

This forwarded to our CubeMX team. One of our experts will answer you ASAP.

Khouloud.

Houda GHABRI
Houda GHABRIAnswer
ST Employee
May 28, 2018
Posted on May 28, 2018 at 11:21

Hi

Vid.Max

,

Thanks for your feedback.

This issue will be fixed in a next CubeMX release (4.1).

Regards,

Houda
