STM32cubeIDE Board Selector creates incorrect (?) default RCC initialization settings for STM32H735G-DK Discovery Kit.

@Piranha pointed me to a fault in the configuration of the RCC in an example related to LW-IP.

I have the impression that this fault is also created when STM32cubeIDE creates the default settings for the STM32H735G -DK Discovery kit.

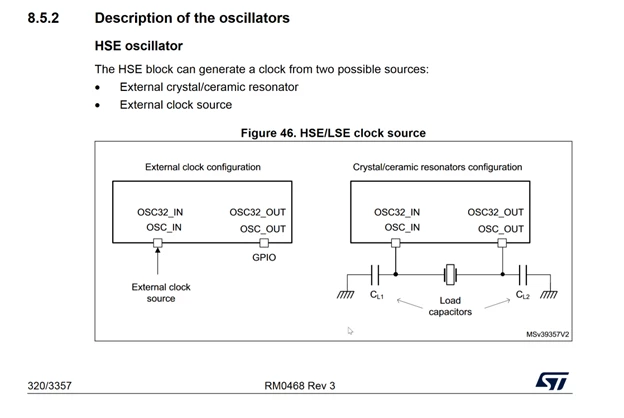

The manual RM0468 is clear:

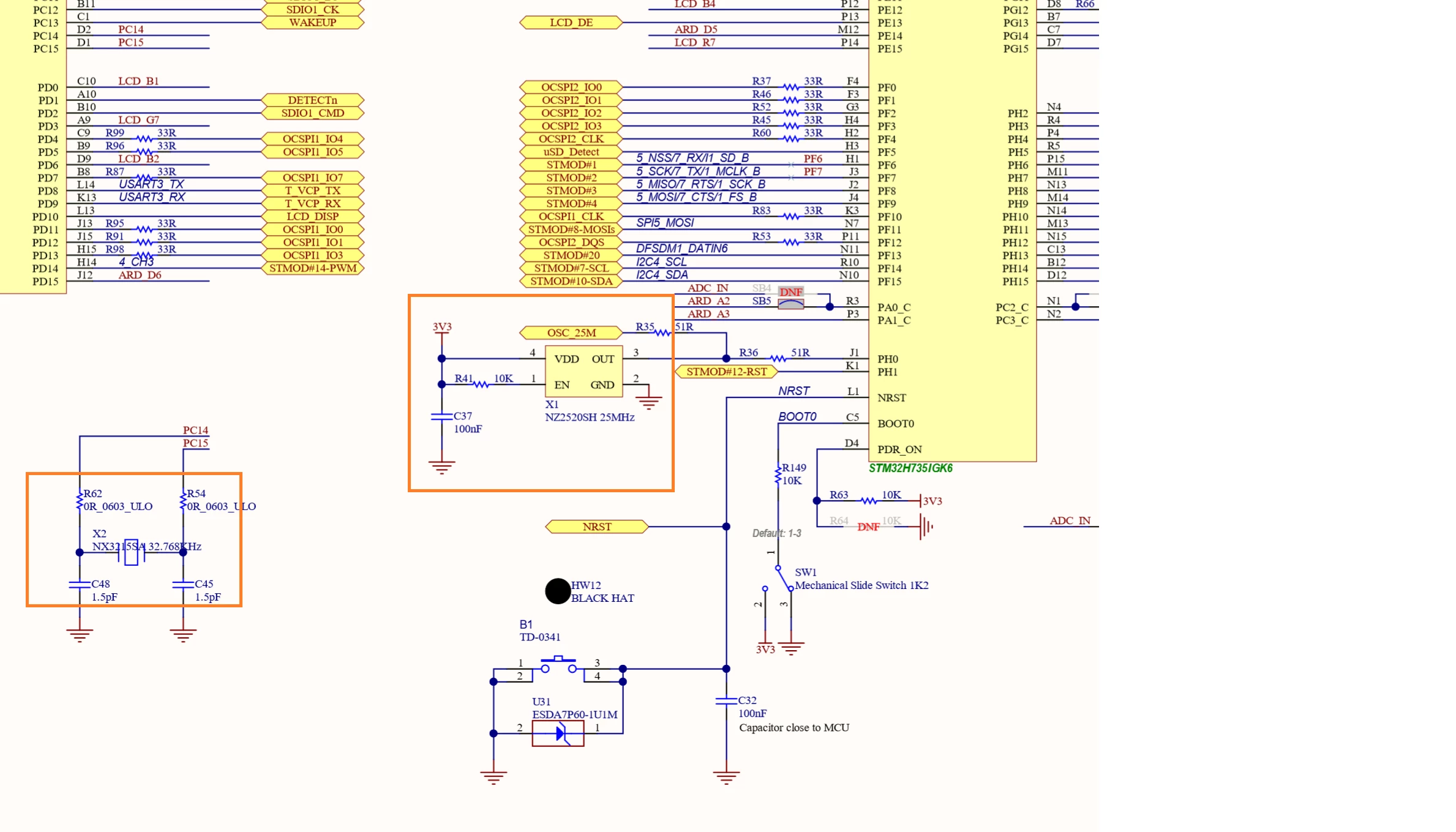

The schematic of the STM32H735G-DK kit:

X2 is a crystal, X1 is an oscillator:

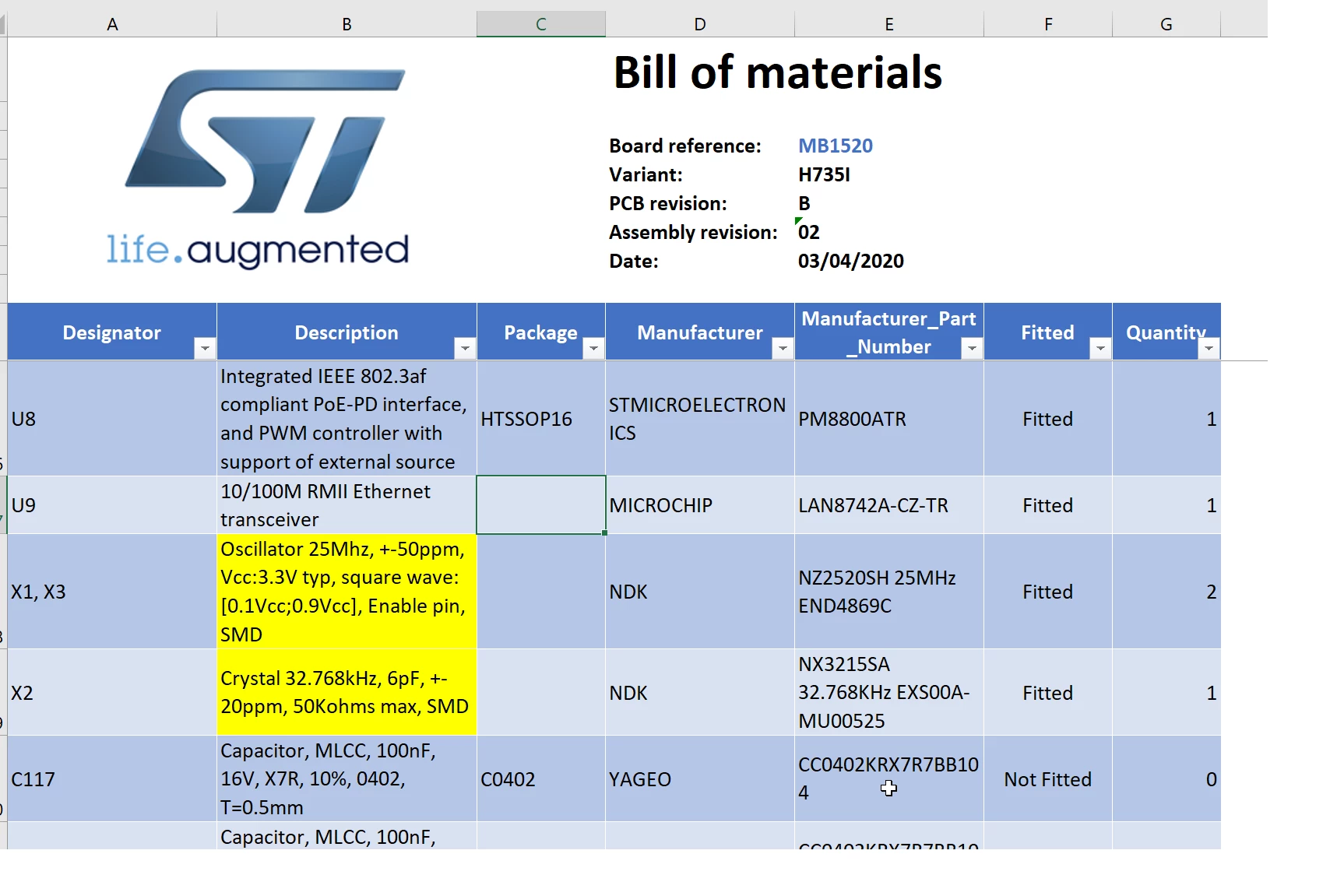

BOM says the same:

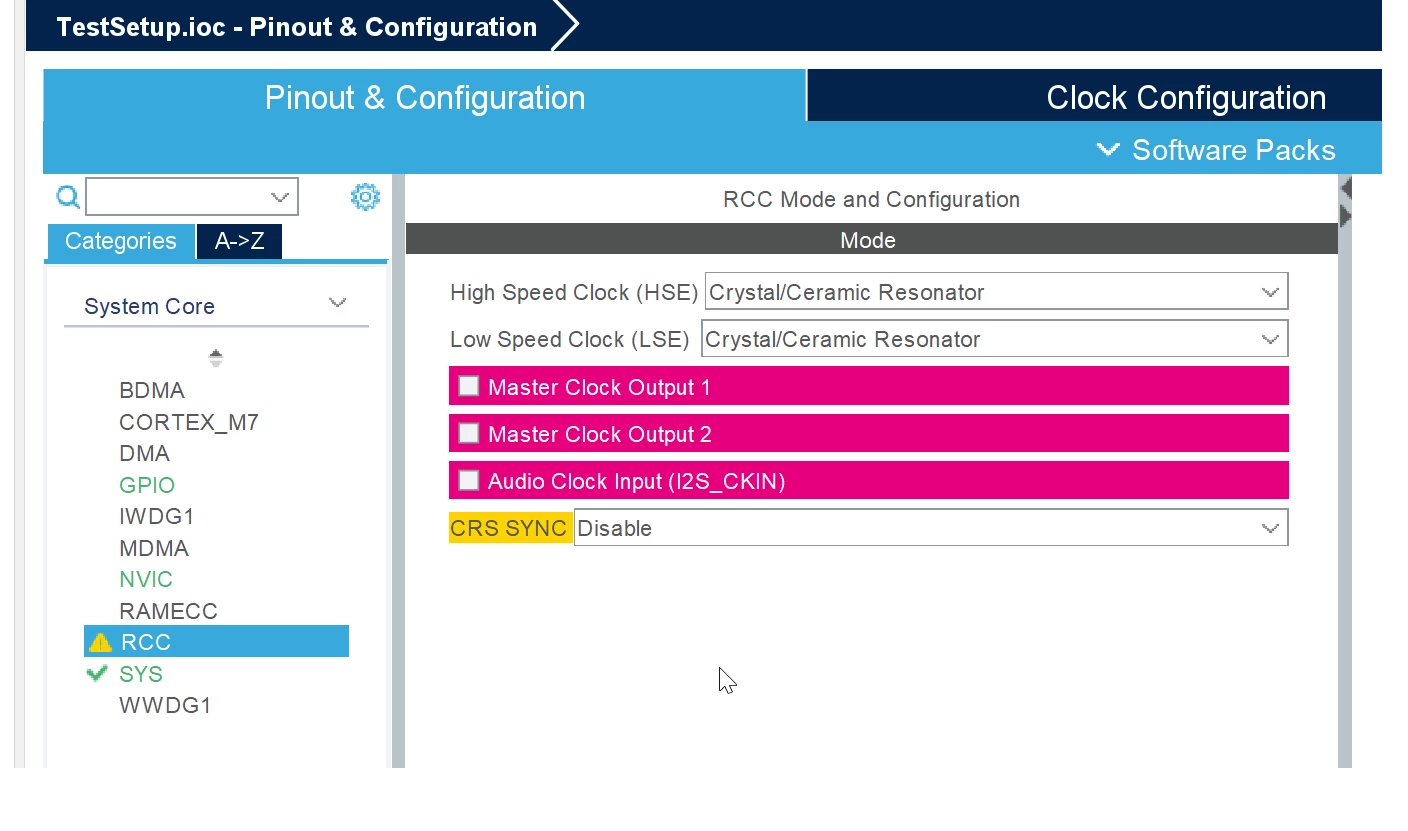

But STM32CubeIDE initialized as per the board:

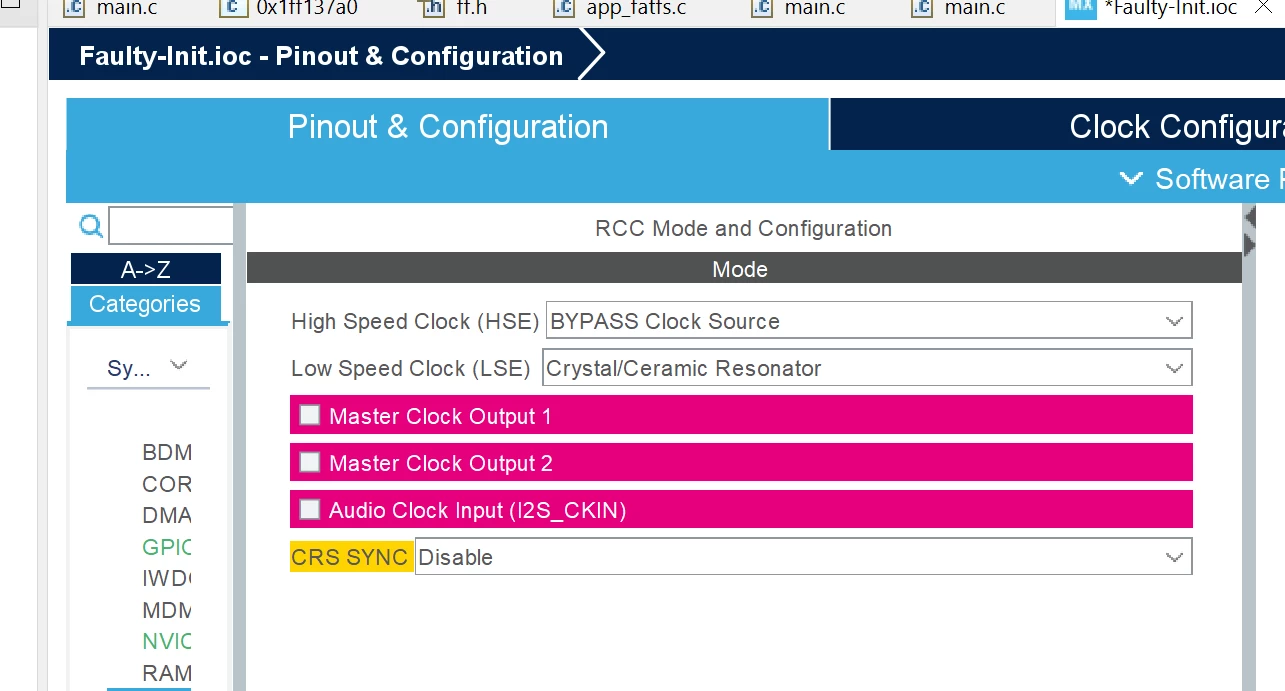

And should be: (IMHO)

My question: Is my analysis correct or did I overlook something?
