STM32CubeIDE not creating middleware USB_Device.

Good morning @SShar.16​

I used stm32cubeMX 6.6.1 and stm32cubeIDE 1.10.1 and Nucleo-F767ZI in order to show you how to configure USB _Device mode

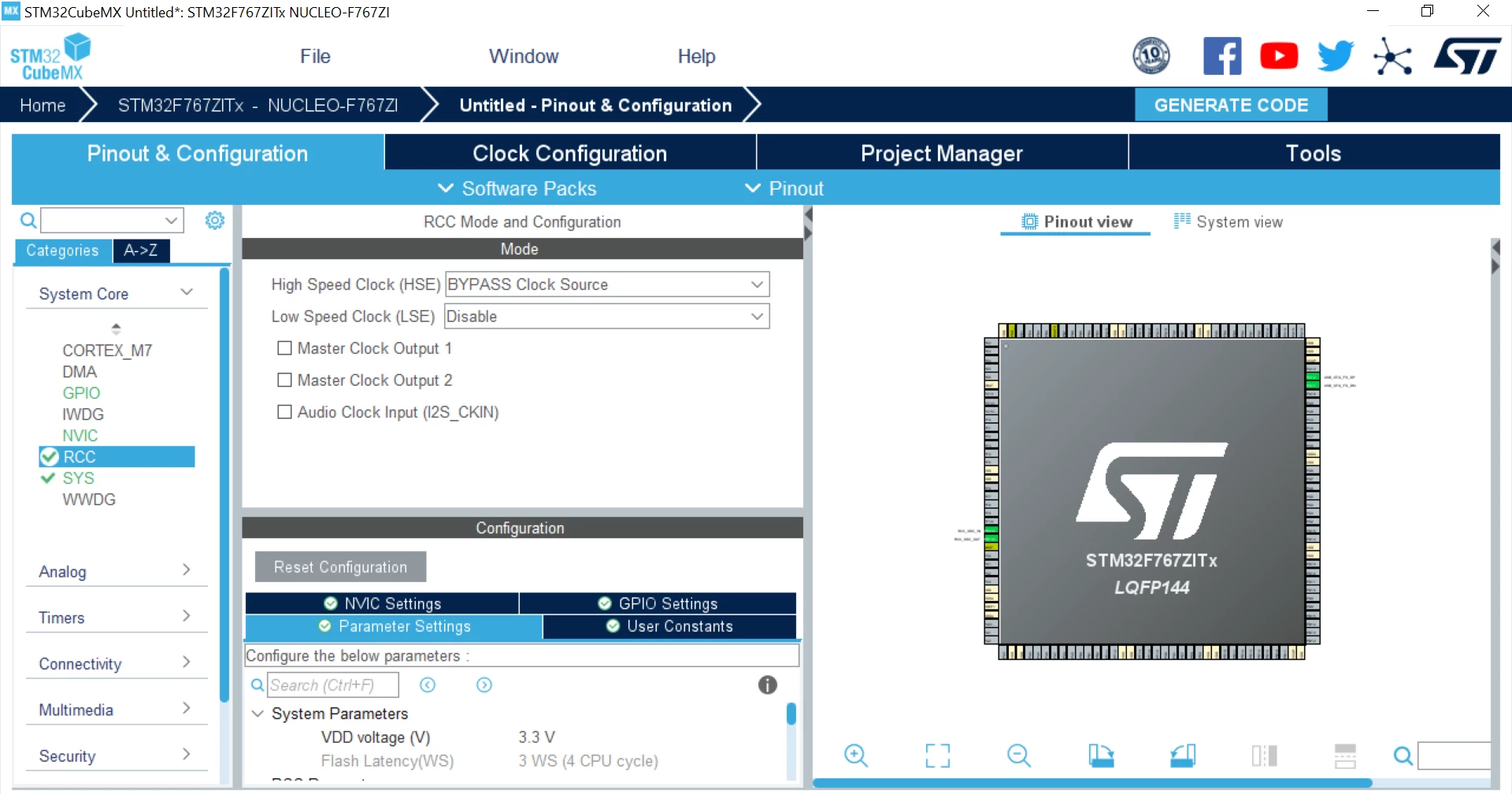

• First go to System Core ==> select RCC ==> click on High speed Clock and choose "BYPASS clock source "

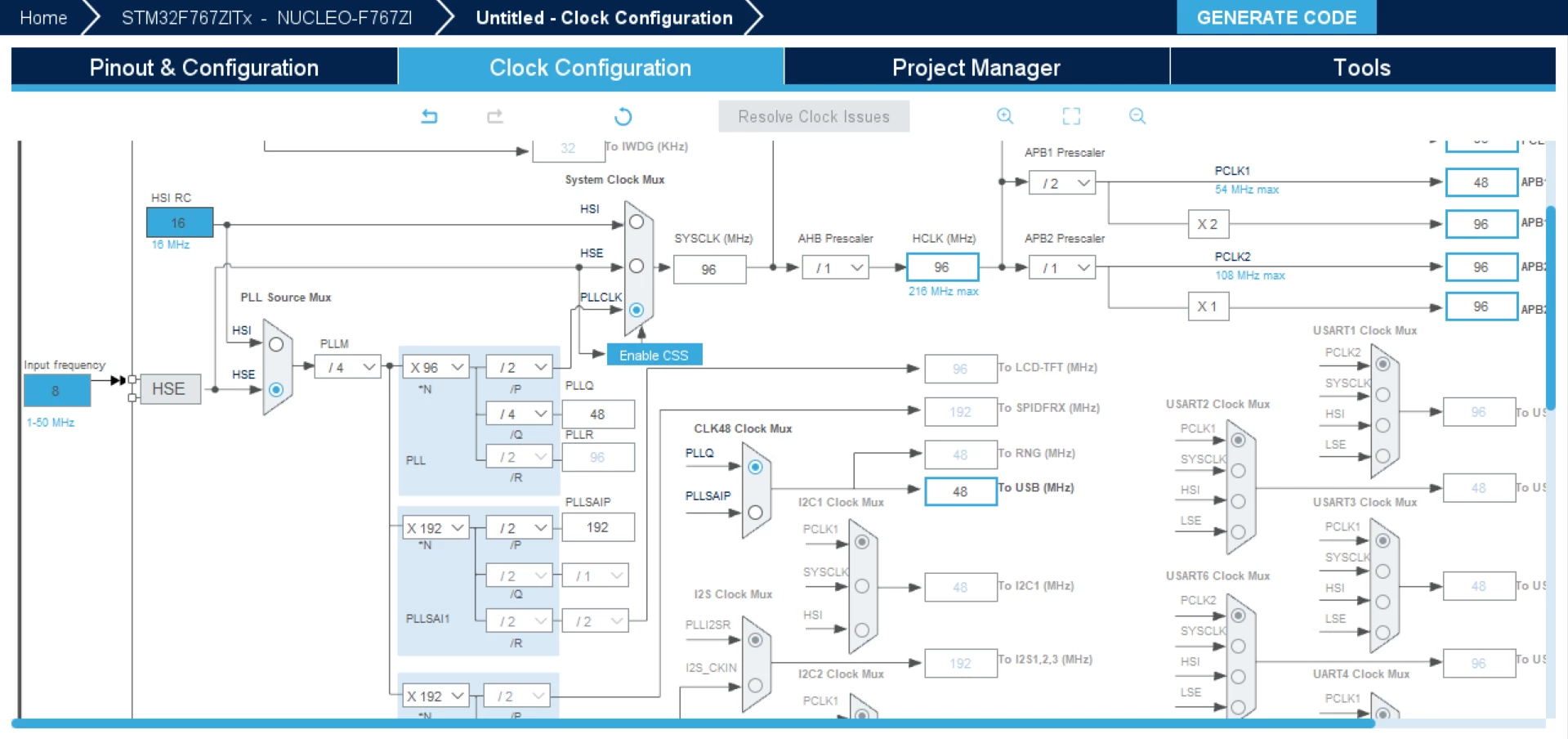

• Second go to "clock configuration " make sure that the input frequency is 8 MHZ

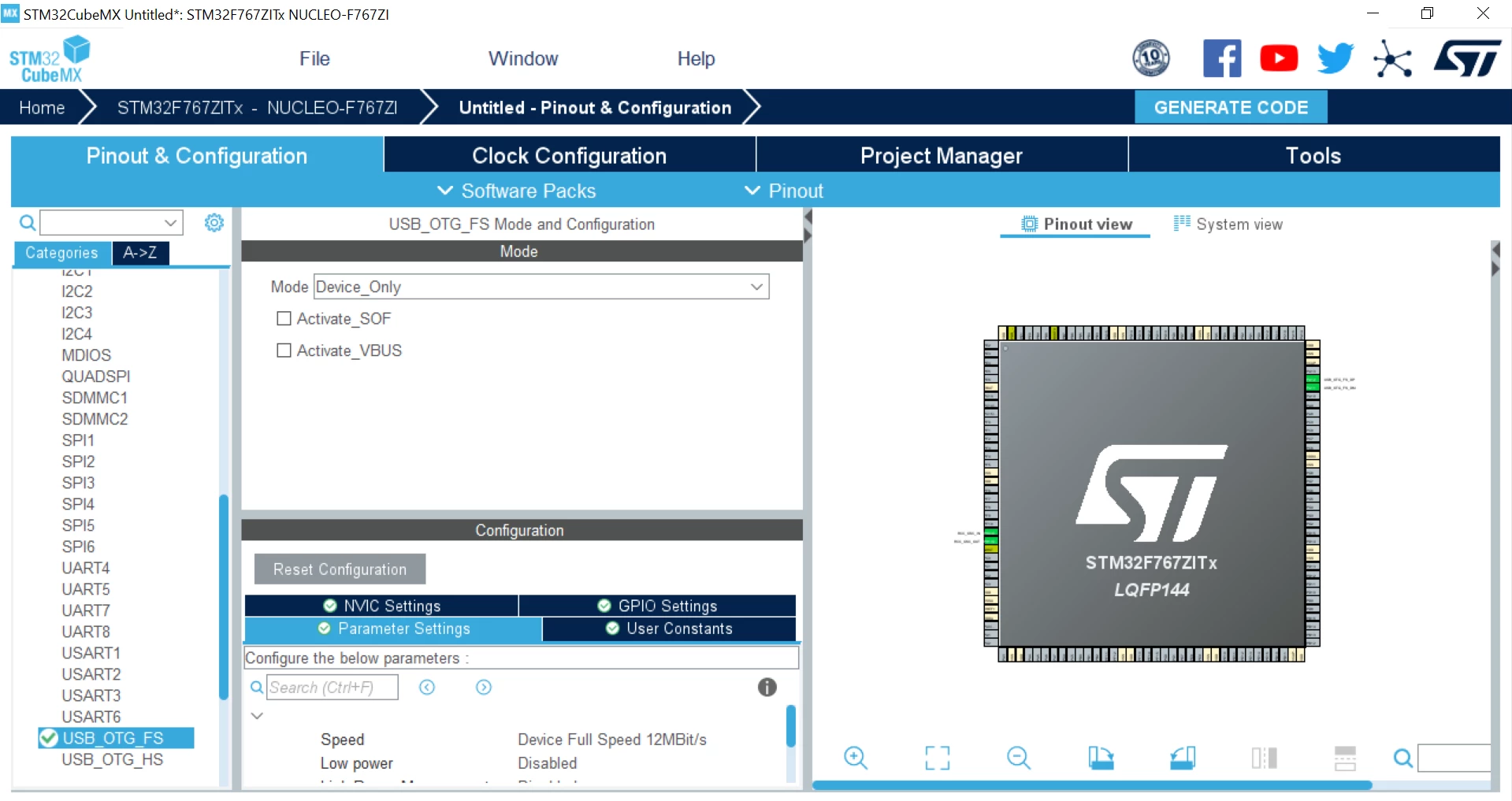

• Third go to "connectivity" and select USB_OTG_FS click on Mode and select "device only"

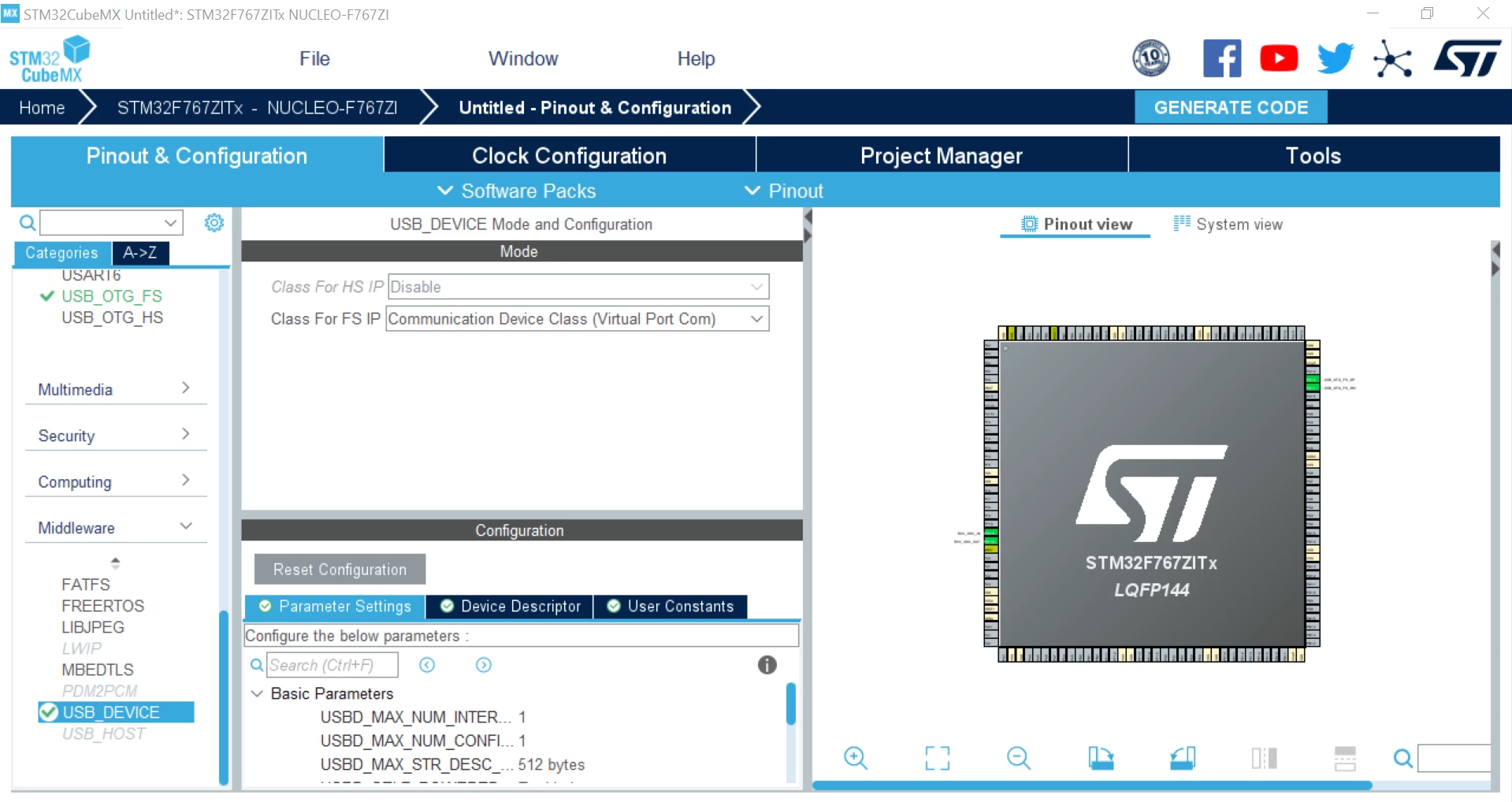

• Then go to "middleware " click on "USB _DEVICE" click on Class FO FS IP and choose Communication Device Class

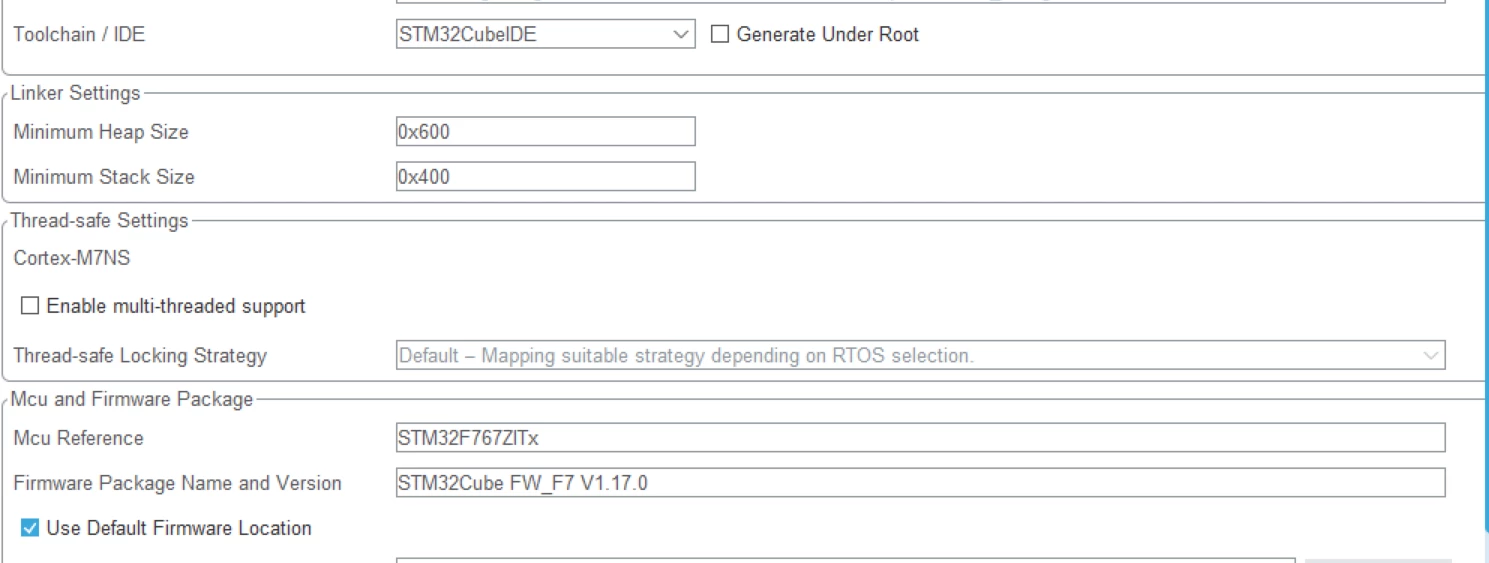

• finally go to "project manager " and increase the Heap size to 0x600 and generate your code

you will find bellow the cubeMX file please have a look

Ghofrane
