STM32CubeMX and HAL error after project generation

  • March 28, 2018
  • 1 reply
  • 2192 views
Posted on March 28, 2018 at 22:42

Hi everyone,

I use Keil v5.23

STM32Cube 4.25

I always worked with stdperiph lib and I would like to switch to HAL

I tried to start a simple project with my STM32F103C8T6 but when I want to compile a project from cube, I have a lot of errors in Keil and can't manage to get rid of them.

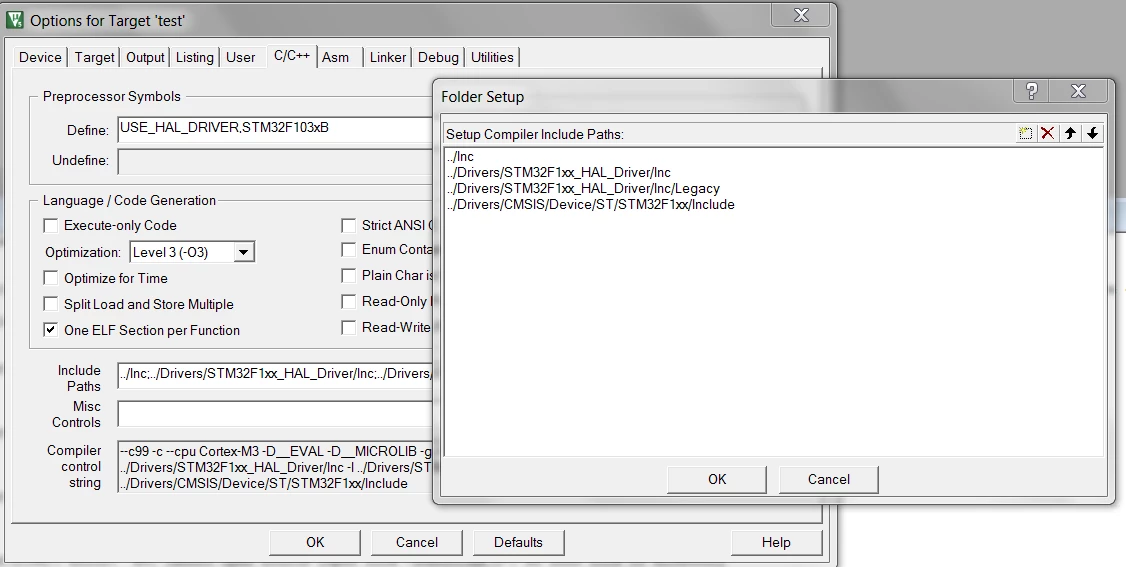

Here is my setup:

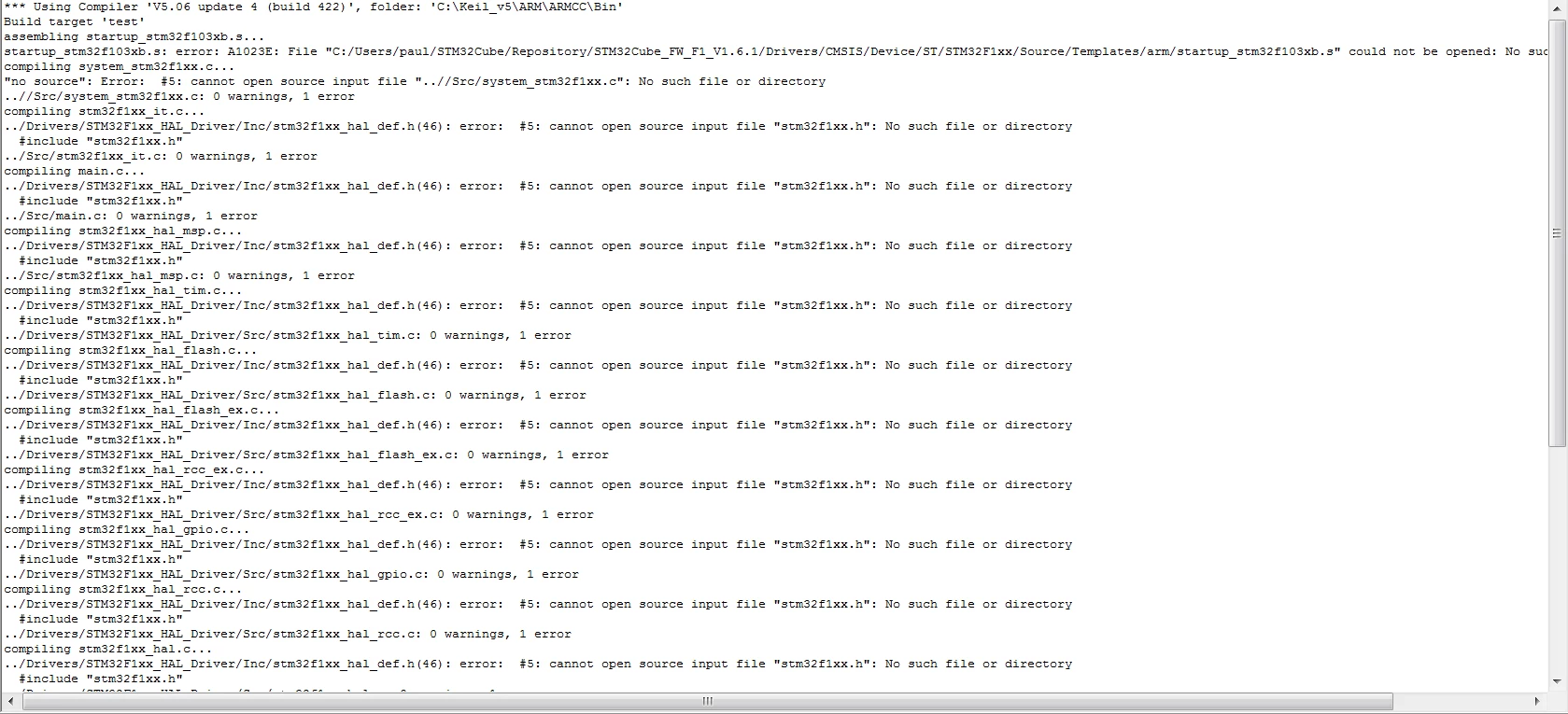

and the bunch of error messages


what is strange is that I changed nothing to the original setup so it should work...

Any idea?

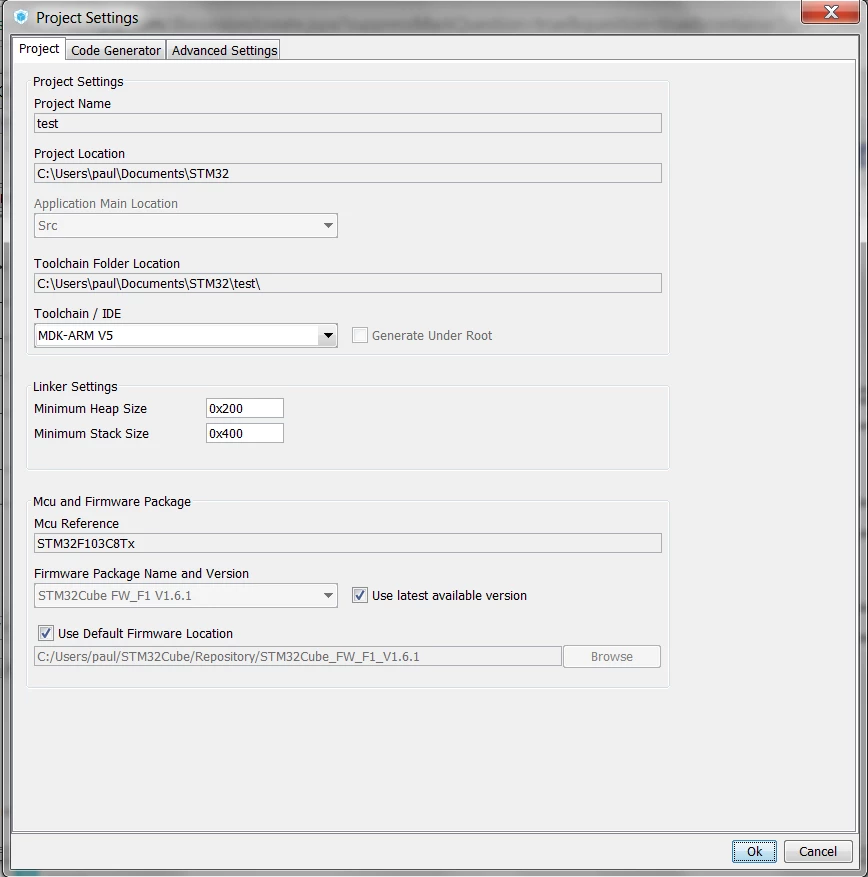

Cube setup:


Thank you for your help

#stm32cubemx-4.25
This topic has been closed for replies.
Best answer by paul sauv
Posted on March 29, 2018 at 08:20

I made some progress:

The package was not correctly installed in STM32CubeMX, I removed and installed it again, it seems to be better, less error message

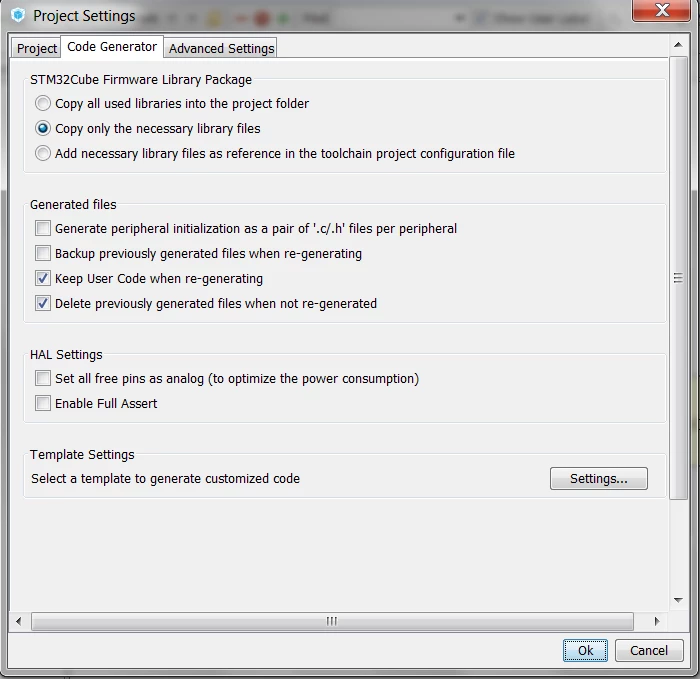

Edit: and now it's working well  the second mistake was here:


I copied only necessary library and it's good

1 reply

paul sauv
paul sauvAuthorAnswer
Associate III
March 29, 2018
Posted on March 29, 2018 at 08:20

I made some progress:

The package was not correctly installed in STM32CubeMX, I removed and installed it again, it seems to be better, less error message

Edit: and now it's working well  the second mistake was here:


I copied only necessary library and it's good
