STM32CubeMX Bug Report - CAN bus configurator

Posted on March 06, 2015 at 01:30

I also recommend

to add to CAN configurator

the calculated

sample

point

.

It's a very

important value

.

What kind of value are we shooting for in an ideal CAN implementation?

Posted on March 08, 2015 at 14:41

What kind of value are we shooting for in an ideal CAN implementation?

Each implementation

of the CAN

bus

should be specified:

-

speed

-s

ample

point

-SJW

-

number of

sample/bit (if avalaible)

to

guarantee a good

compatibility of all

nodes.

It is also necessary

to

check

the number of

TQ/bit (SYNC_SEG+PROP_SEG+PHASE_SEG1+PHASE_SEG2). I

t

should be

in the range of

8 to 25

.

Most controllers configurators show in the table all possible settings.

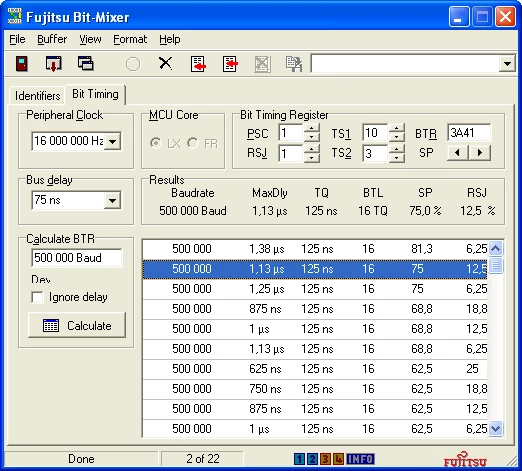

For example Fujitsu Bitmixer:

If

STM32CubeMX

CAN

configurator

has a different

philosophy

,

then it would

be useful

show the CAN bus speed,

the sample point

and

indicate

if number of

TQ

<

8.
