STM32F107vct6 cubemx+ RMII+DP83848+LWIP

Posted on July 11, 2018 at 07:31

Hello

I want config STM32F107vct6 in cubemx to use RMII+DP83848+LWIP without oscilator(I connect PA1 and PA8 to X1)

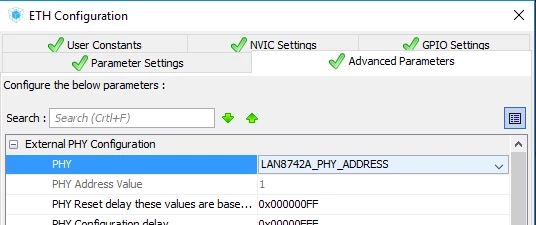

but in STM32CubeMX->Configuration->ETH->External PHY configuration->PHY is LAN8742A_PHY_ADDRESS and can not find DP83848

If i must define User PHY , how do it?

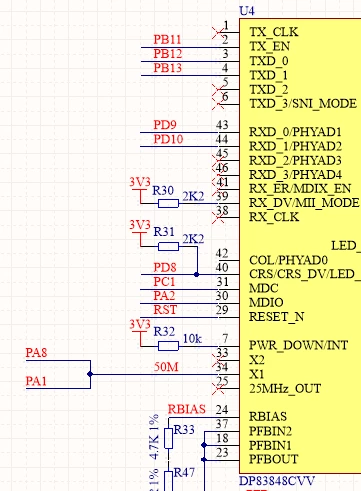

My DP83848

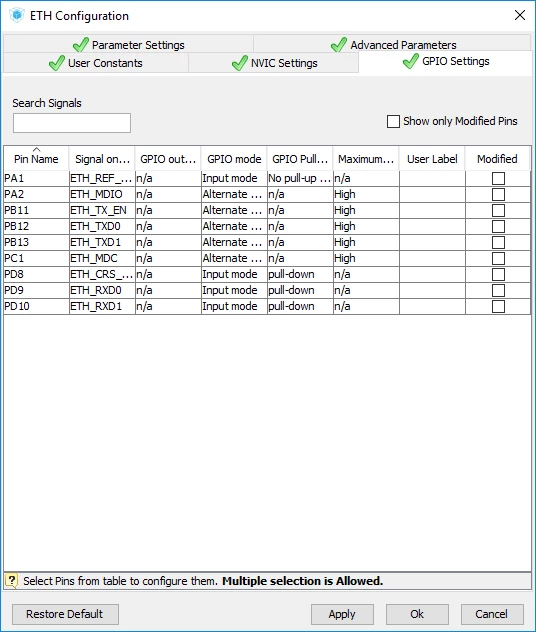

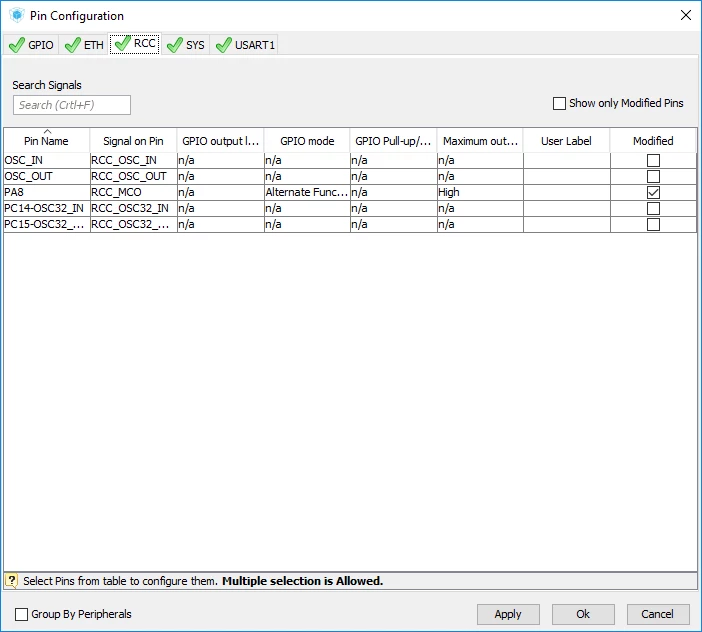

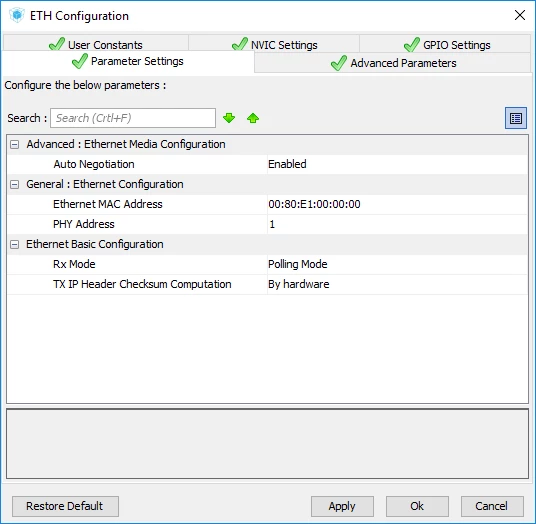

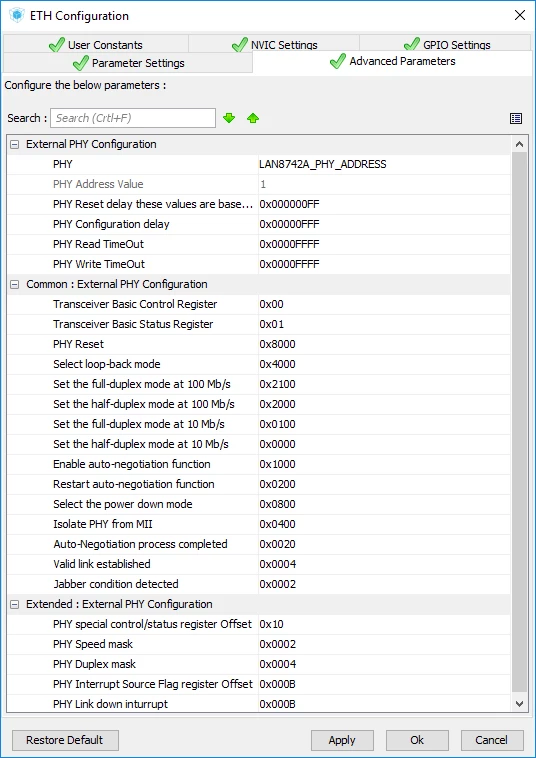

My Config

#rmii #cubemx #lwip #dp83848

This topic has been closed for replies.

Associate II

Posted on July 14, 2018 at 09:45

Please help me to config cube

thanks
