STM32F446 - why PB12 conflicts with USB PHY?

  • March 6, 2018
  • 1 reply
  • 2457 views
Posted on March 07, 2018 at 00:16

Why CubeMX 4.24 says that PB12 conflicts with USB_OTG_HS when external HS PHY is not is use?

The MCU is F446ZCT, its USB HS core is in FS, host only mode, Activate_SOF and Activate_VBUS unchecked.

PB12 can have two alternate functions for USB HS core - but both are related only to HS mode, correct?

So why conflict with the PHY in FS internal PHY mode?

(and, by the way, what does ''Activate_VBUS'' in host mode? I use a different output pin to switch VBUS to the port).

Thanks,

-- pavel


#usb-fs #cubemx-v4.24
This topic has been closed for replies.
Best answer by Khouloud GARSI
Posted on March 07, 2018 at 18:53

Hi

pavel_a

‌,

On the datasheet, we are mentioning that the STM32F446 MCU have:

  • USB 2.0 full-speed device/host/OTG controller with on-chip PHY : (OTG1_FS through GPIOA ).

  • USB 2.0 high-speed/full-speed device/host/OTG controller with dedicated DMA, on-chip full-speed PHY (OTG2_FS through GPIOB) and ULPI (OTG2_HS).

If you are using the second on chip FS PHY (GPIOB), the related pins are described as HS because they are linked to the USB 2.0 high-speed/full-speed device/host/OTG controller.

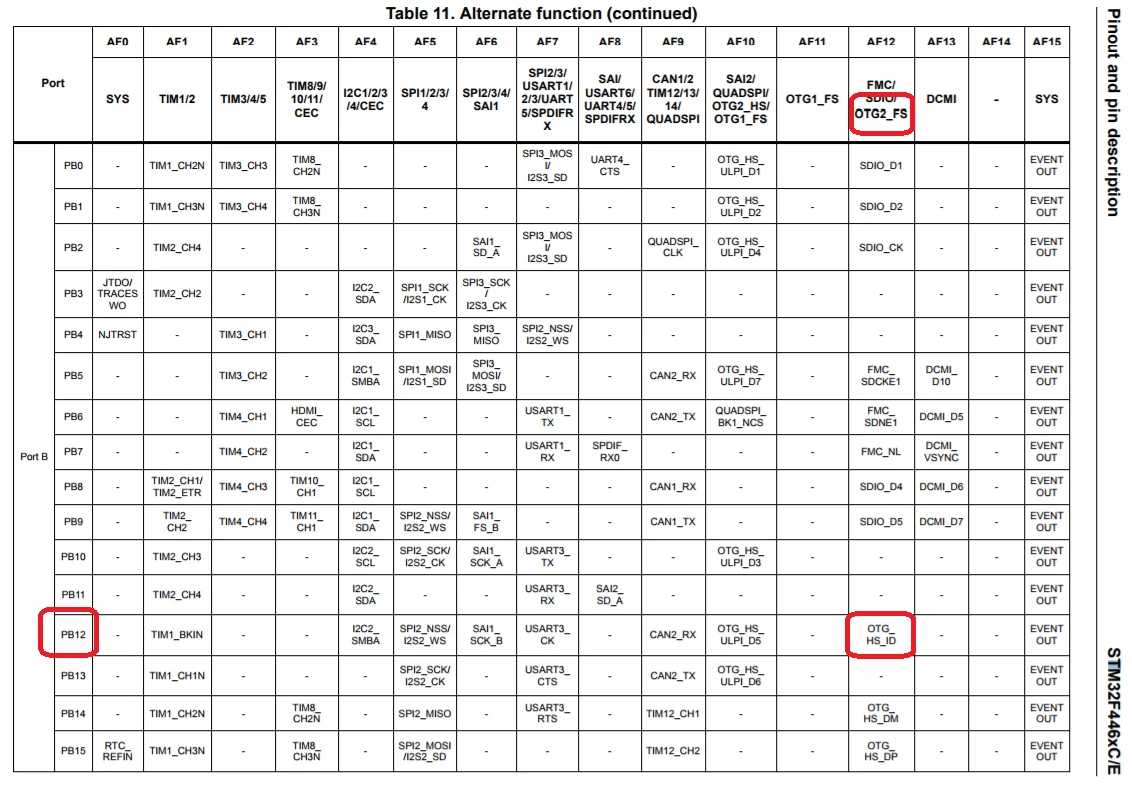

On the datasheet, you may notice that the PB12 is the OTG_HS_ID in the OTG2_FS peripheral.

You may also notice that also PB14 and PB15 are mentioned as ''USB_OTG_

H

S_DM'' and ''USB_OTG_

H

S_DP''.


Thus, the if you are using the USB FS PHY through the GPIOB port, the PB12 should not be used by another peripheral.

Khouloud.
