[STM32F746] UART Interrupt using CubeMX generated code
I want to get UART Interrupted data to vary LED blinking speed.
For example,If I send 1 then speed 100ms or send 2 then speed 200ms.
I made a cod using CubeMX and Interrupting with just pressing ''Enter'' works perfect(Not sending any data)

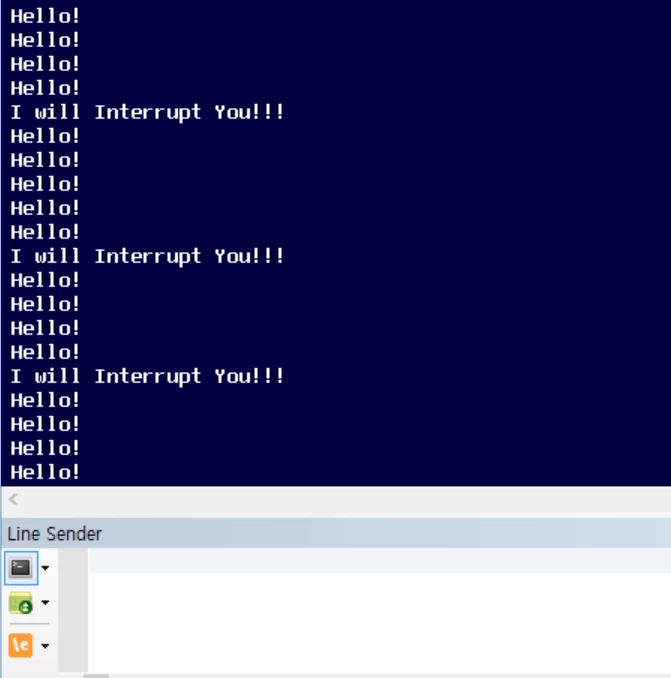

(I pressed ''Enter'' 3 times in Line Sender)

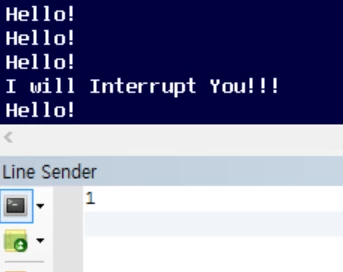

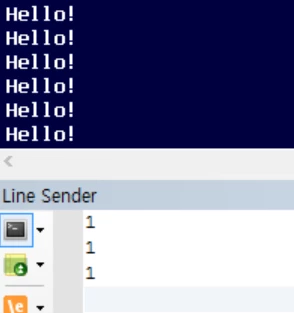

but If I send some character like below, It iterrupts just one time and never interrupt again with my further interrupt action.
Here is my Code.
First of al,l I am getting Terminal ''printf''output into Serial usingcode below in function ''HAL_UART_MspDeInit''in usart.c.
/* USER CODE BEGIN 1 */
#ifdef __GNUC__
/* With GCC/RAISONANCE, small printf (option LD Linker->Libraries->Small printf set to 'Yes') calls __io_putchar() */
#define PUTCHAR_PROTOTYPE int __io_putchar(int ch)
#else
#define PUTCHAR_PROTOTYPE int fputc(int ch, FILE *f)
#endif /* __GNUC__ */
/**
* @brief Retargets the C library printf function to the USART.
* @param None
* @retval None
*/
PUTCHAR_PROTOTYPE{
/* Place your implementation of fputc here */
/* e.g. write a character to the EVAL_COM1 and Loop until the end of transmission */ HAL_UART_Transmit(&huart1, (uint8_t *)&ch, 1, 0xFFFF);
return ch; }
/* USER CODE END 1 */
in my main.c
while (1)
{
HAL_Dealy(100);
printf(''Hello!\r\n'');
}
in stm32f7xx_it.c
viod USART1_IRQHandler(void)
{
/* USER CODE BEGIN USART1_IRQn 0 */
if ((_HAL_UART_GET_FLAG(&huart1, UART_FLAG_RXNE) != RESET) && (__HAL_UART_GET_IT_SOURCE(&hurat1, UART_IT_RXNE) != RESET)
{
printf(''I will Interrupt You!!!\r\n'');
}
__HAL_UART_CLEAR_PEFLAG(&huart1);
/* USER CODE END USART1_IRQn 0 */
HAL_UART_IRQHandler(&huart1);
}
Do you have any idea what went wrong here?
#stm32f746-uart #stm32f746-discovery #uart #stm32f746-cubemx
