STM32H5 TIM12 no TRGO section in CubeMX

Hello Everyone

I am using CubeMX 6.17.0 and Embedded Software Package STM32H5 1.6.0:

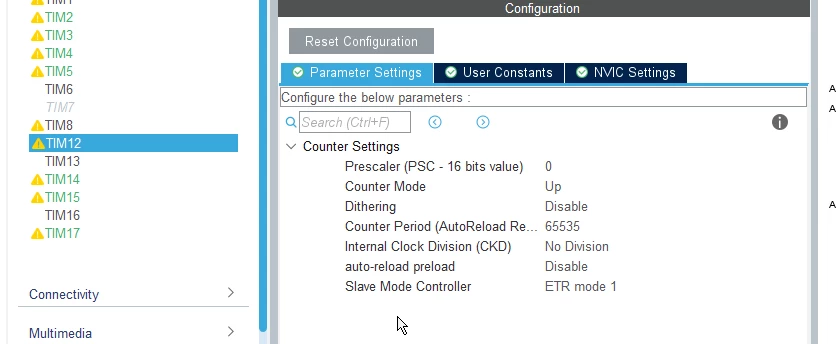

Is there a control missing to setup "Trigger Output (TRGO) Parameters?

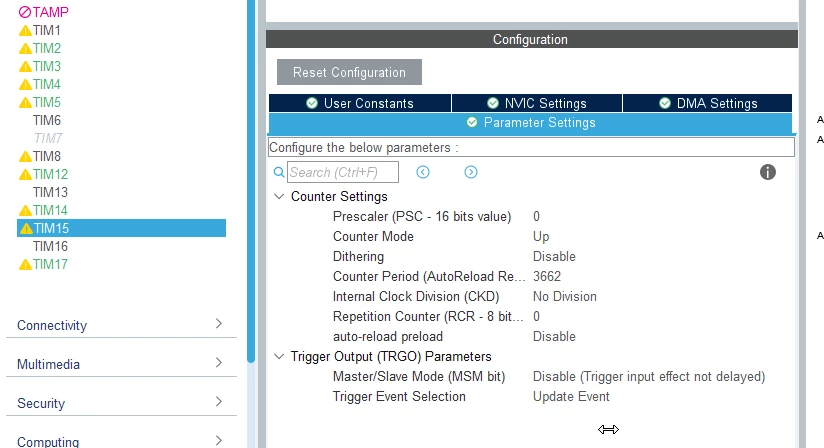

In comparison to e.g. Tim15:

Technical Moderator

Hello @JohVis71

Could you provide the name of MCU and the mode that you selected in TIM12?

KR, Souhaib

To give better visibility on the answered topics, please click on Accept as Solution on the reply which solved your issue or answered your question.

Associate II

STM32H573RITx LQFP64
[cid:image001.png@01DCD7CA.C90A8DF0]
