System Workbench build error new project from CubeMX

Posted on January 09, 2017 at 21:58

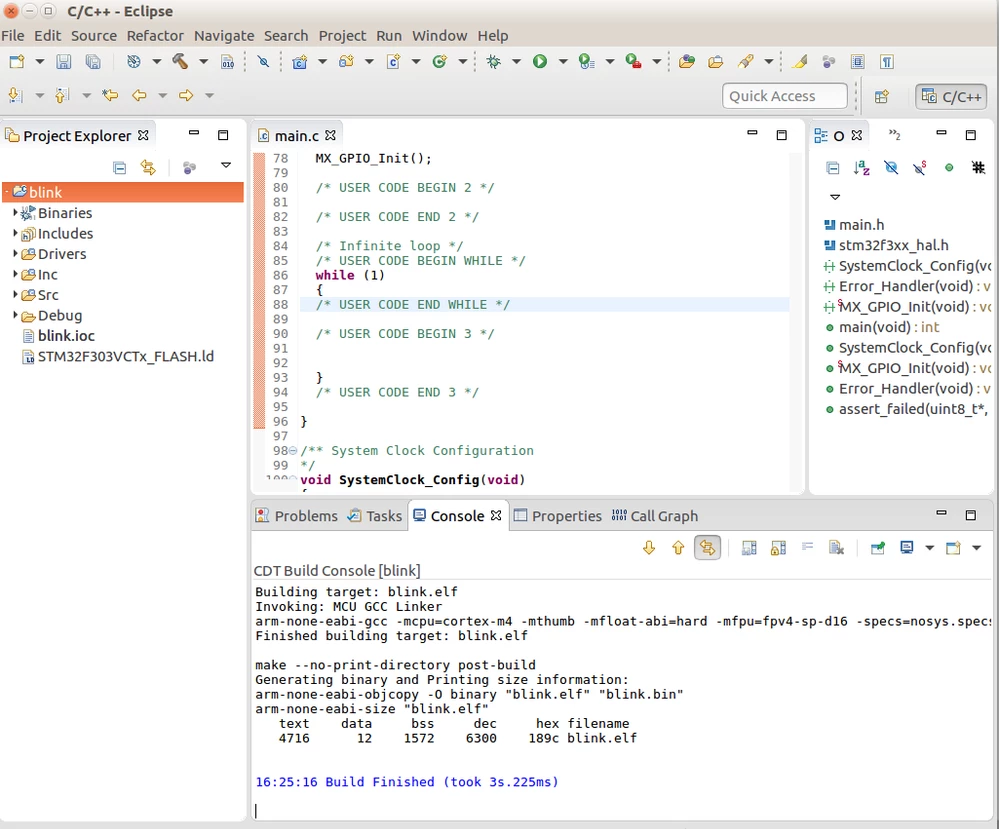

Summary of 2 days investigations for CubeMX and System Workbench

For success build without errors imported project generated in CubeMX, need fix generated symbols

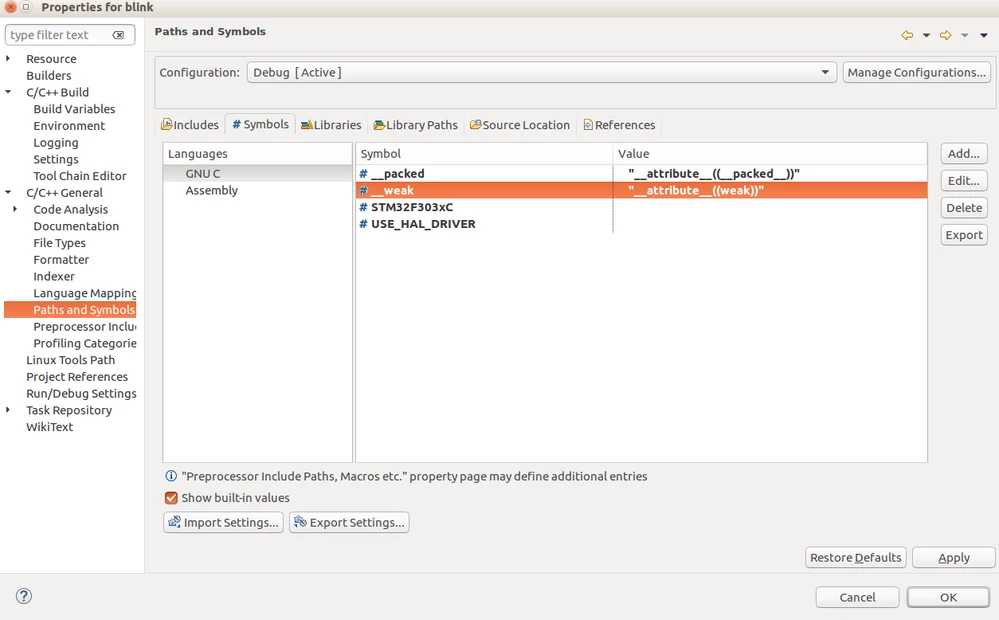

In Project->Properties->C/C++ Builds->Settings->MCU GCC Compiler->Symbols

__weak=__attribute__((weak))

__packed=__attribute__((__packed__))

need set values __attribute__((XXXXX)) in double quotes - '__attribute__((XXXXX))'

Sample:

__weak='__attribute__((weak))'

__packed='__attribute__((__packed__))'

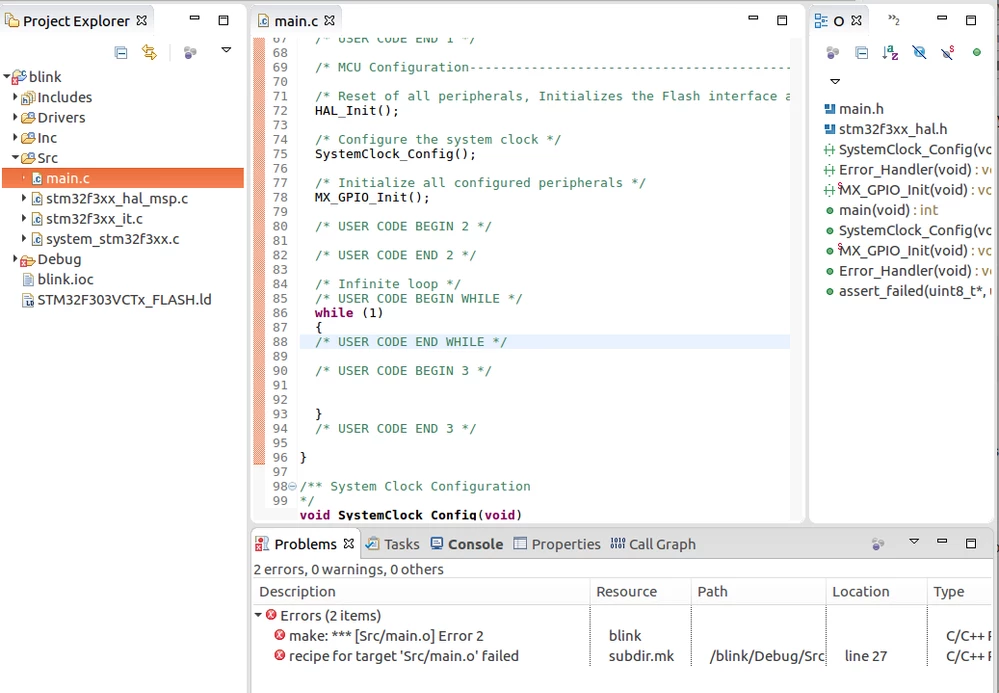

Else you can see follow errors after import

23:19:10 **** Incremental Build of configuration Debug for project blink ****

make all

Building file: ../Src/main.c

/bin/sh: -c: line 0: syntax error near unexpected token `('

/bin/sh: -c: line 0: `arm-none-eabi-gcc -mcpu=cortex-m4 -mthumb -mfloat-abi=hard -mfpu=fpv4-sp-d16 -Dweak=attributeweak? -Dpacked=attributepacked? -DUSE_HAL_DRIVER -DSTM32F303xC -I'/Users/asergeev/stm/workspace/blink/Inc' -I'/Users/asergeev/stm/workspace/blink/Drivers/STM32F3xx_HAL_Driver/Inc' -I'/Users/asergeev/stm/workspace/blink/Drivers/STM32F3xx_HAL_Driver/Inc/Legacy' -I'/Users/asergeev/stm/workspace/blink/Drivers/CMSIS/Device/ST/STM32F3xx/Include' -I'/Users/asergeev/stm/workspace/blink/Drivers/CMSIS/Include' -Os -g3 -Wall -fmessage-length=0 -ffunction-sections -c -fmessage-length=0 -MMD -MP -MF'Src/main.d' -MT'Src/main.o' -o 'Src/main.o' '../Src/main.c''

make: *** Src/main.o Error 2

Invoking: MCU GCC Compiler

/Users/asergeev/stm/workspace/blink/Debug

arm-none-eabi-gcc -mcpu=cortex-m4 -mthumb -mfloat-abi=hard -mfpu=fpv4-sp-d16 -Dweak=attributeweak? -Dpacked=attributepacked? -DUSE_HAL_DRIVER -DSTM32F303xC -I'/Users/asergeev/stm/workspace/blink/Inc' -I'/Users/asergeev/stm/workspace/blink/Drivers/STM32F3xx_HAL_Driver/Inc' -I'/Users/asergeev/stm/workspace/blink/Drivers/STM32F3xx_HAL_Driver/Inc/Legacy' -I'/Users/asergeev/stm/workspace/blink/Drivers/CMSIS/Device/ST/STM32F3xx/Include' -I'/Users/asergeev/stm/workspace/blink/Drivers/CMSIS/Include' -Os -g3 -Wall -fmessage-length=0 -ffunction-sections -c -fmessage-length=0 -MMD -MP -MF'Src/main.d' -MT'Src/main.o' -o 'Src/main.o' '../Src/main.c'

#cube-mx-ac6-system-workbench-iap #stm32cubemx
