What is "CK_PWR"?

  • September 14, 2022
  • 3 replies
  • 1597 views

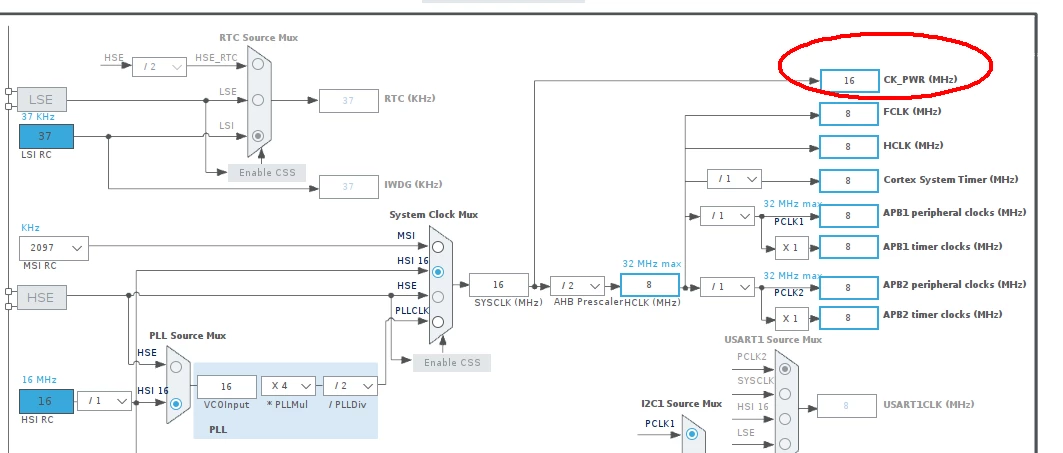

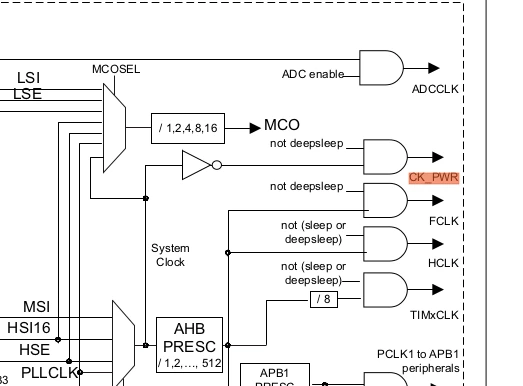

In STM32CubeMX clock schematic and in the clock schematic of the reference manual CK_PWR is mentioned. It is never explained what it does and what it is for.

I'd like to know what it is for and how it affects current consumption (since it is before the AHB prescaler).

This topic has been closed for replies.
Best answer by KDJEM.1

Hi @Community member​ ,

The CK_PWR is an internal signal must be removed in the next update of the references Manuals and of the STM32CubeMx clock schematic.

Also, I recommended the AN4445 “STM32L0xx ultra-low power features overview�? to optimize the power consumption.

Thank you for your contribution.

When your question is answered, please close this topic by choosing Select as Best. This will help other users find that answer faster.

Kaouthar

3 replies

KDJEM.1
KDJEM.1Answer
Technical Moderator
September 16, 2022

Hi @Community member​ ,

The CK_PWR is an internal signal must be removed in the next update of the references Manuals and of the STM32CubeMx clock schematic.

Also, I recommended the AN4445 “STM32L0xx ultra-low power features overview�? to optimize the power consumption.

Thank you for your contribution.

When your question is answered, please close this topic by choosing Select as Best. This will help other users find that answer faster.

Kaouthar

To give better visibility on the answered topics, please click on Accept as Solution on the reply which solved your issue or answered your question.
KDJEM.1
KDJEM.1
Technical Moderator
September 16, 2022

Hi @Community member​ ,

I reported this issue internally.

Internal ticket number: 134792 (This is an internal tracking number and is not accessible or usable by customers).

Kaouthar

To give better visibility on the answered topics, please click on Accept as Solution on the reply which solved your issue or answered your question.
Semer CHERNI
Semer CHERNI
ST Employee
November 29, 2022

Hello @Community member​

The issue is fixed in the STM32CubeMx 6.7.0 release found under this link.

Semer.
