Why is it not possible to select CAN in STM32CubeMX with the STM32F042F6P6 MCU. According to the datasheet this MCU has a CAN it is also listed in CubeMX, just not possible to select. Why?

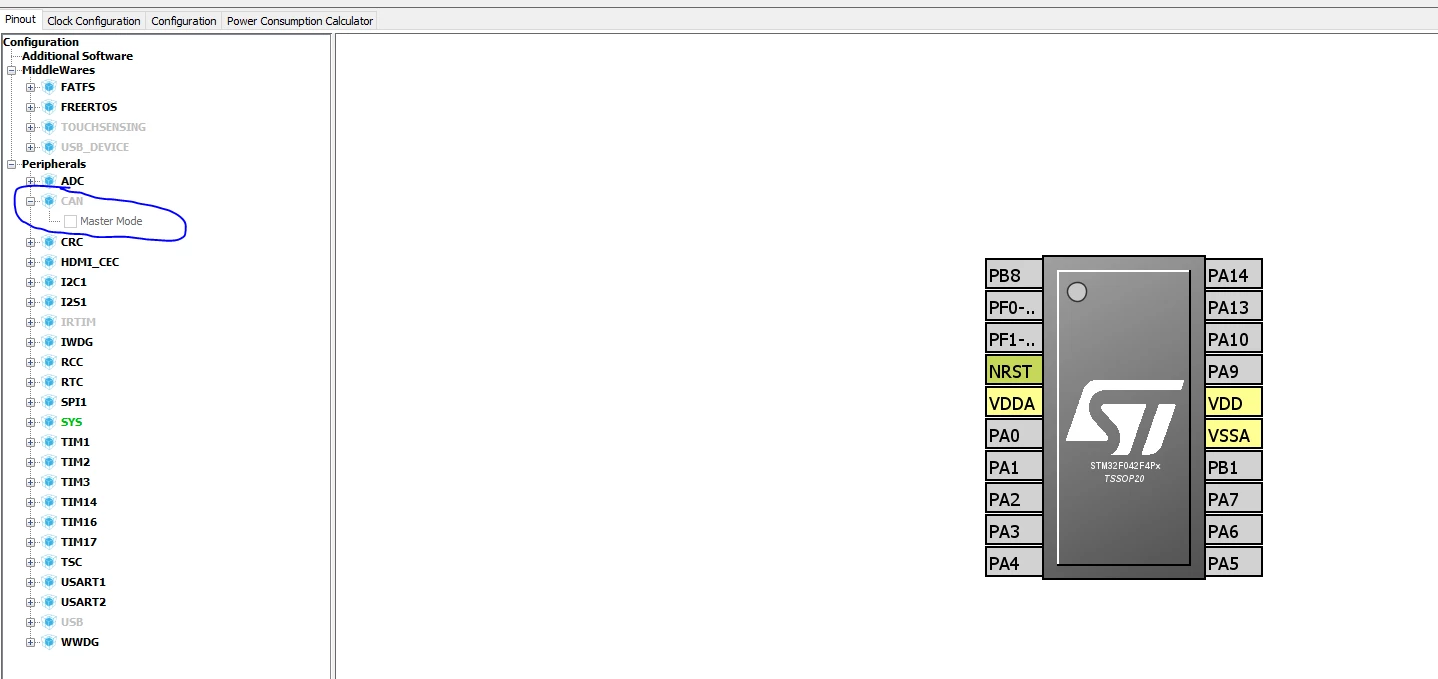

For more details check the screenshot.

Thanks!

This topic has been closed for replies.

Guru

What clock source is selected for the part?

Tips, Buy me a coffee, or three.. PayPal VenmoUp vote any posts that you find helpful, it shows what's working..

Associate III

I tryed with Crystal/Ceramic Resonator and with the internatl clock. Both do not work

Lead III

This package doesn't have enough pins ...

You need to set PA11_PA12_RMP in SYSCFG_CFGR1, in CubeMX there's a corresponding checkbox "Remap PA9/10 to PA11/12".

Associate III

Thank you very much, Andreas!

Best regards, Benjamin
