Cannot make STLINK v2 connection with STM32WL33

  • February 13, 2025
  • 1 reply
  • 1471 views

Hi ,

I am using STM32WL33 in my design and just received my first PCB assembled.

i am trying to flash the board with basic program but no success yet , it would be great if you can help to find the problem.

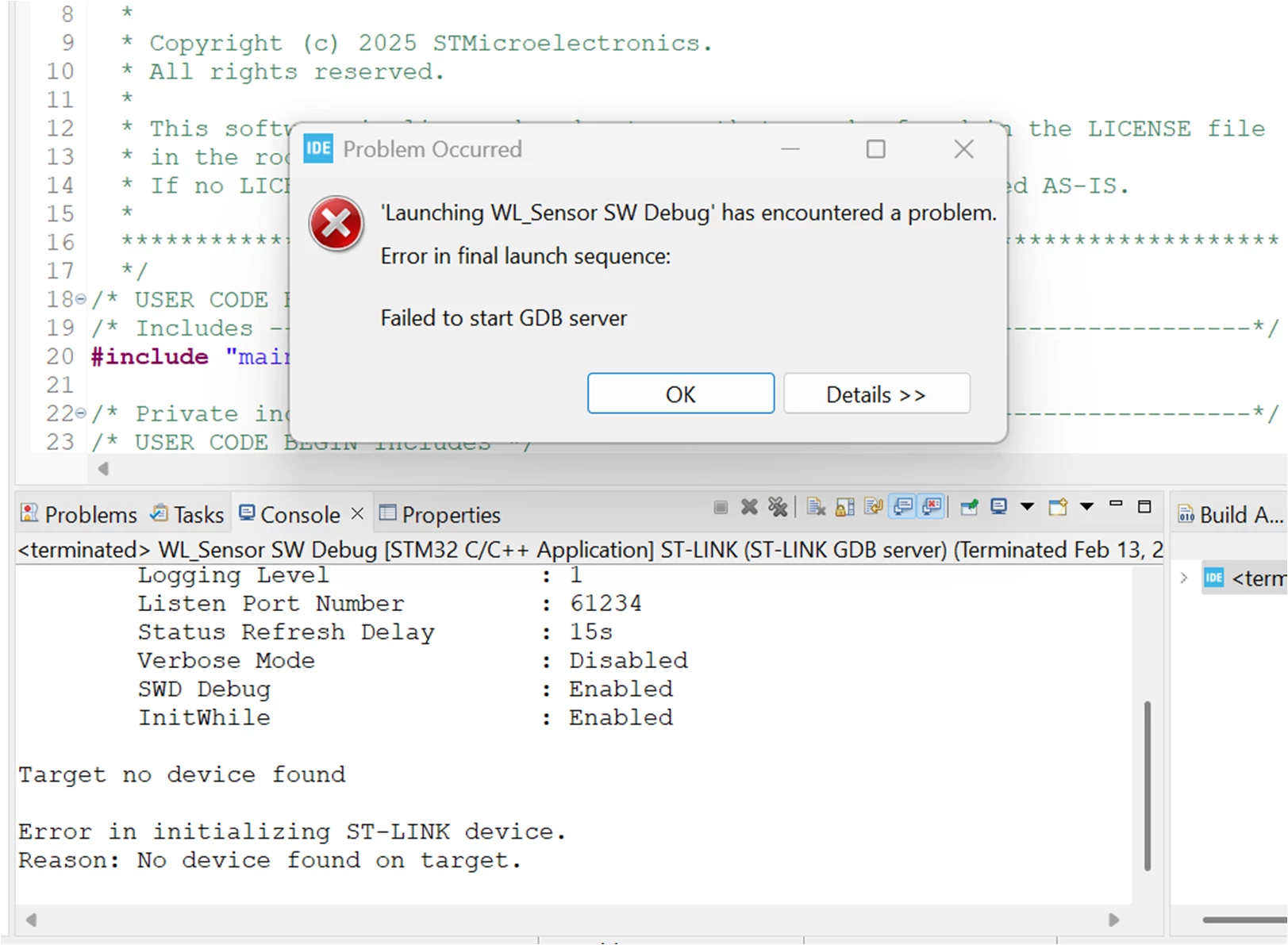

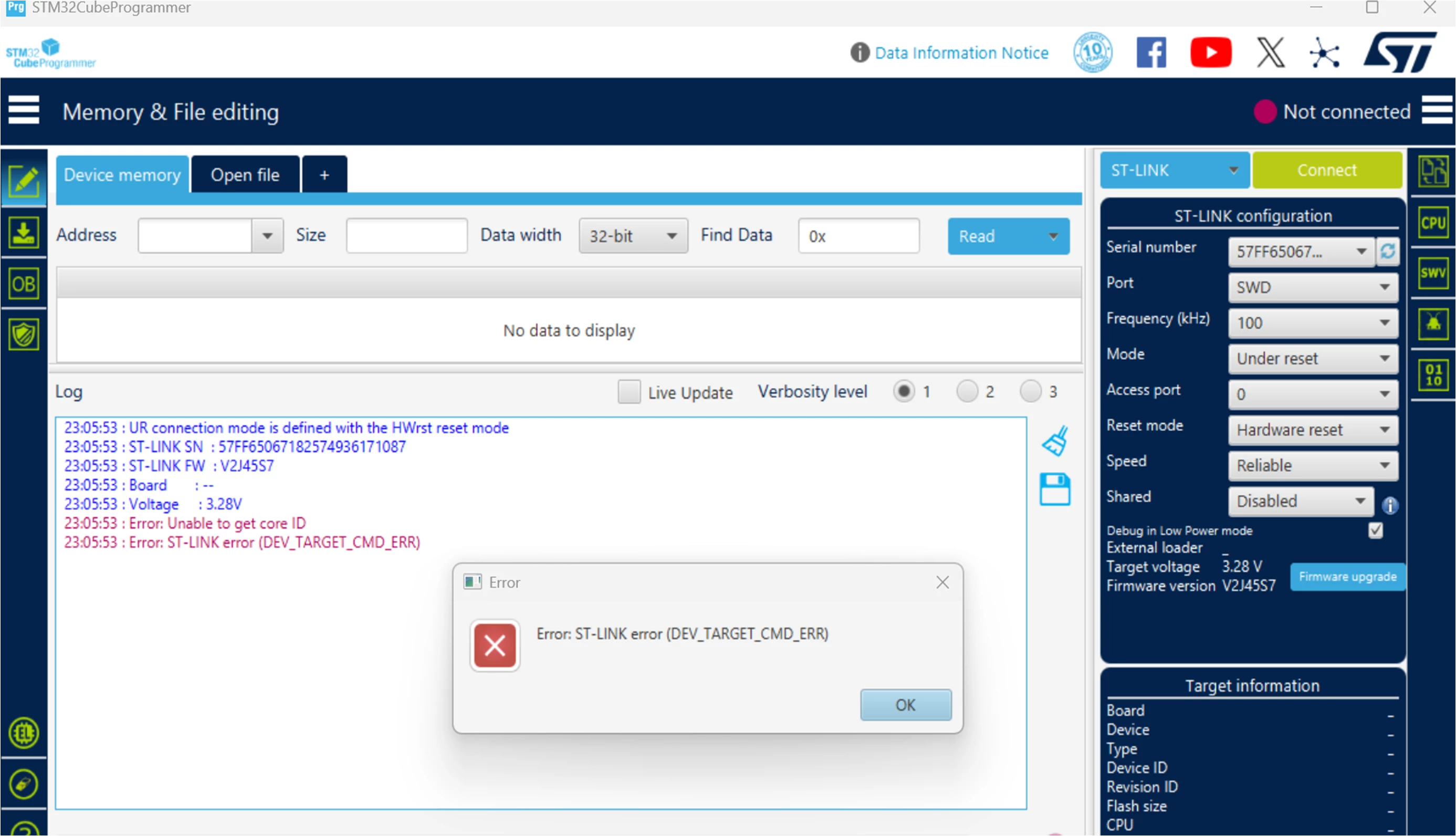

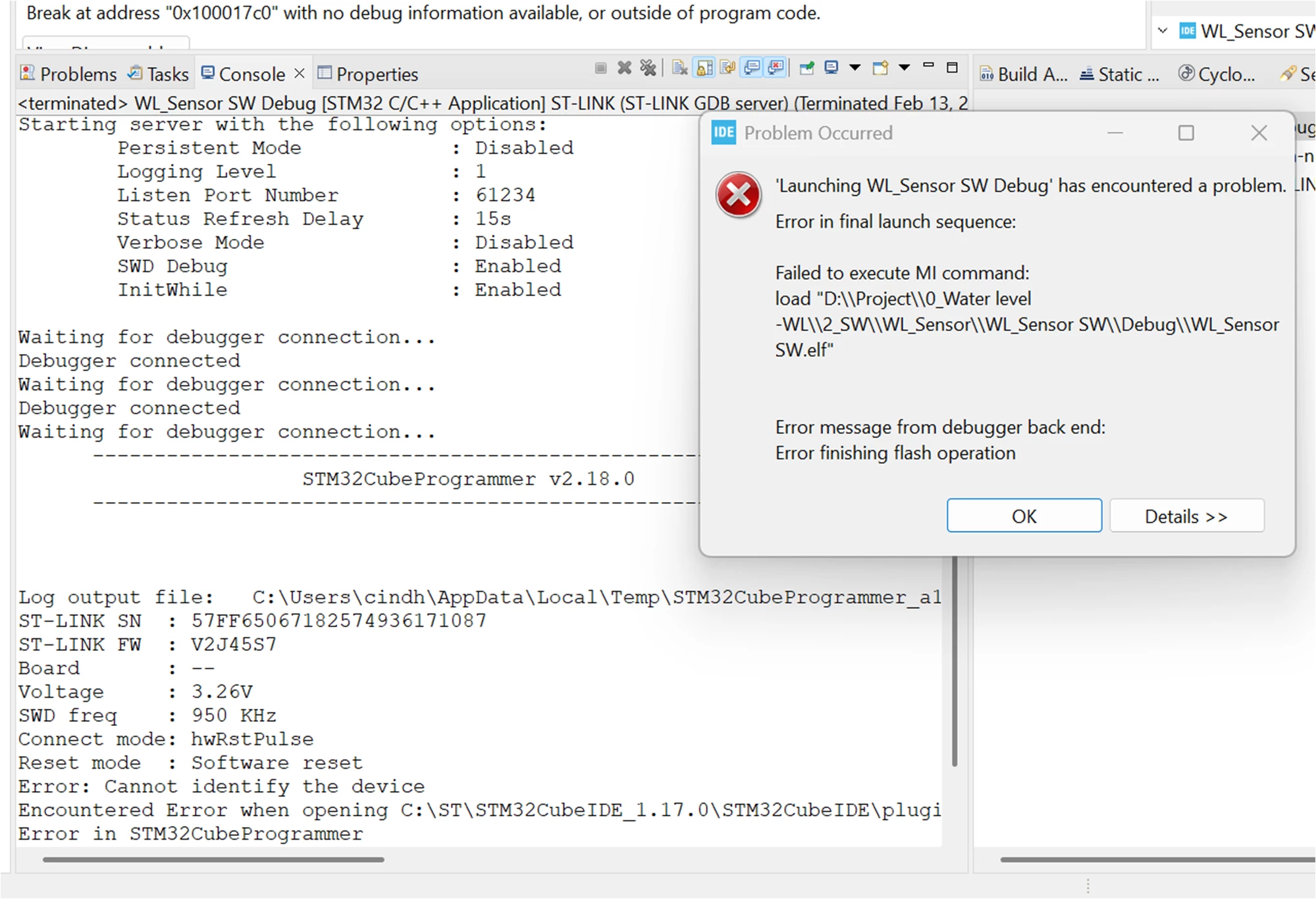

i have tried with both CubeIDE and Cubeprogramer with STlink V2 , seems like debugger is connected but not going to further steps .here is the screen shots

i have used same ST linkV2 and setup in another board (STM32WLE5) and i can connect.

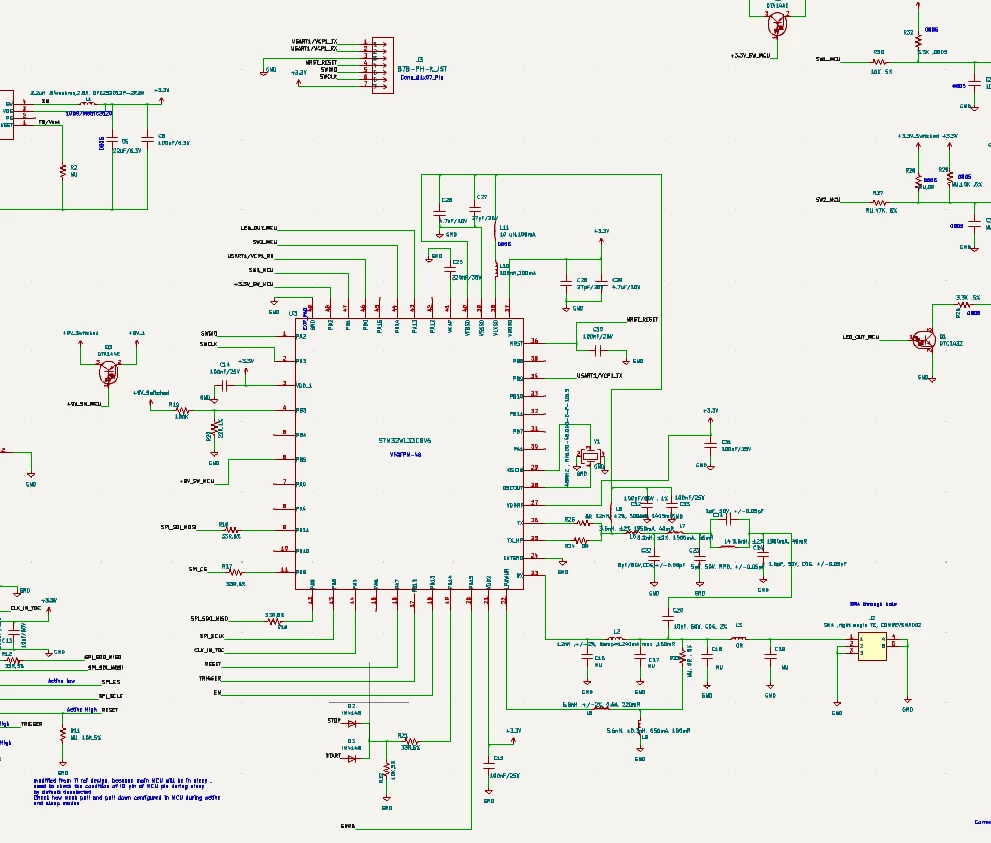

schematic:




 I checked the SWDIO, SWCLK, VDD, GND and NRST pin connection to ST link it looks okay

I checked the voltages VDD : 3.3V, VCAP:1.2V , NSRST:3.3V , VFBSD(SMPS output):1.4V

No pullup resistor in NRST and PA10 pin is floating.

Circuit is design based on ST reference design

Any help is appreciated

//Karthik





Best answer by Maryem

Hello @KarthikGo,



I apologize for the delayed response.

I have successfully connected an STM32WL33 using the ST-Link V2 with version 2.19.0 of STM32CubeProgrammer.


Could you please try again using this version? You can download it from the following Link.



Maryem.



1 reply

Maryem
MaryemAnswer
Technical Moderator
March 4, 2025

Hello @KarthikGo,



I apologize for the delayed response.

I have successfully connected an STM32WL33 using the ST-Link V2 with version 2.19.0 of STM32CubeProgrammer.


Could you please try again using this version? You can download it from the following Link.



Maryem.
