CubeProgrammer current firmware unknown

Forum|Forum|1 year ago
September 15, 2024
3 replies
1877 views

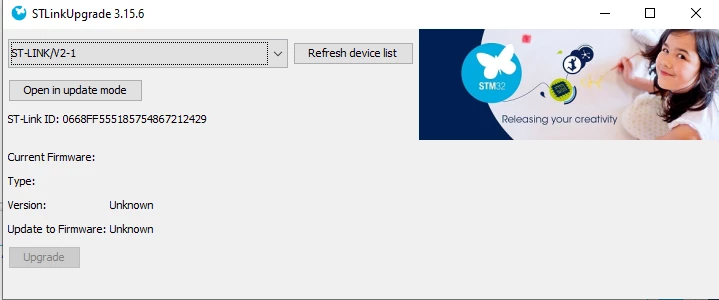

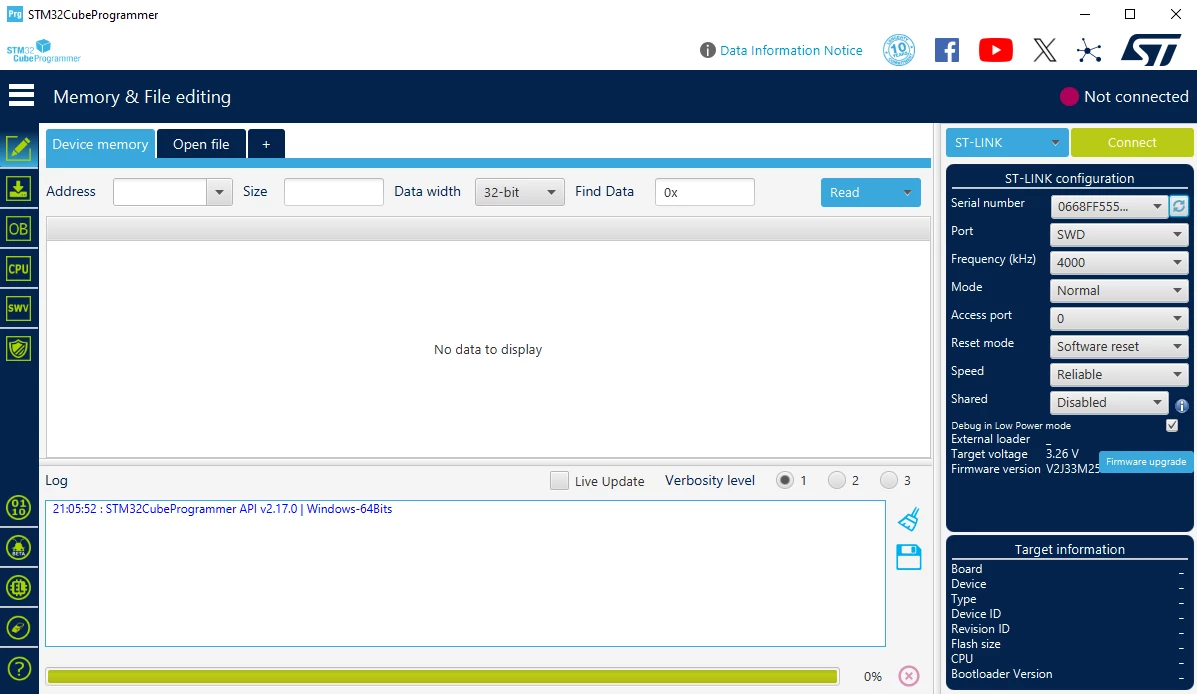

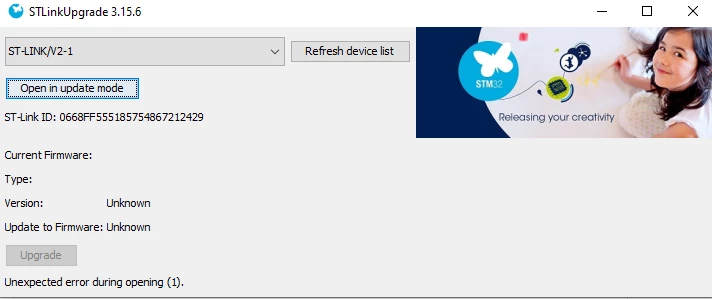

How can i solve this ? My board is a nucleo lnucleo-l476rg (genuine i think) but i cant do anything bc my cubeprogrammer dont works

STM32CubeProgrammer

Best answer by jlourencao

I managed to update the firmware after removing the IDD jumper, but i didn't understand why, since i didn't read anything about having to remove this jumper for this ...
Anyway, thanks guys :) .

Peter BENSCH

Technical Moderator

Welcome @jlourencao, to the community!

I haven‘t seen any faked NUCLEO yet, so I assume it’s a genuine one.

Did you tried another USB cable and/or another USB port?
Sometimes these are only charging cables or not suitable for USB data transfer.

Regards
/Peter

In order to give better visibility on the answered topics, please click on Accept as Solution on the reply which solved your issue or answered your question.

mƎALLEm

Technical Moderator

Hello @jlourencao and welcome to the community,

Disconnect and reconnect the cable and try again.

Try to use STLink firmware upgrade downloadable from here: https://www.st.com/en/development-tools/stsw-link007.html

If It doesn't work, use STLINK utility (a depricated tool) to update the STlink firmware,

downloadable from here.

Hope it helps.

To give better visibility on the answered topics, please click "Best answer" on the reply which solved your issue or answered your question.

J

jlourencaoAuthorAnswer

Associate II

I managed to update the firmware after removing the IDD jumper, but i didn't understand why, since i didn't read anything about having to remove this jumper for this ...
Anyway, thanks guys :) .
