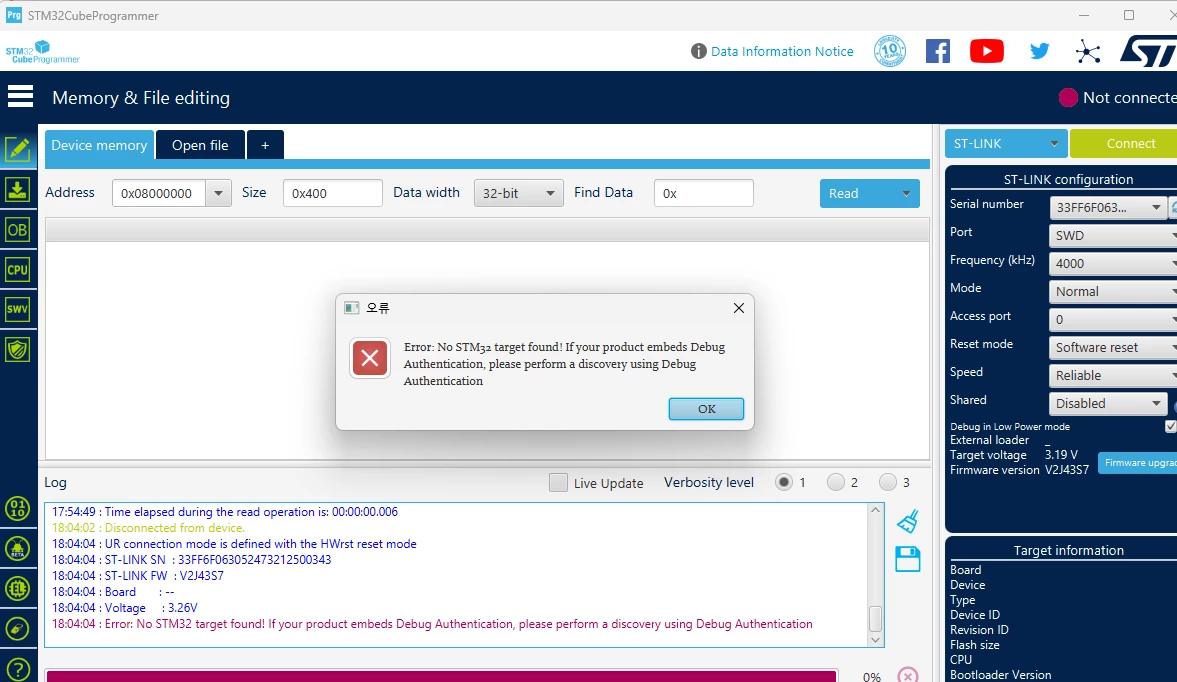

Error: No STM32 target found! If your product embeds Debug Authentication In stm32 Programmer

  • June 18, 2024
  • 2 replies
  • 1735 views

Hi Everybody,



I try to flash my firmware into NUCLEO-STM32F410CBT6,



first, I didn't remove CN2 Jumpers for nucleo ST-link V2.

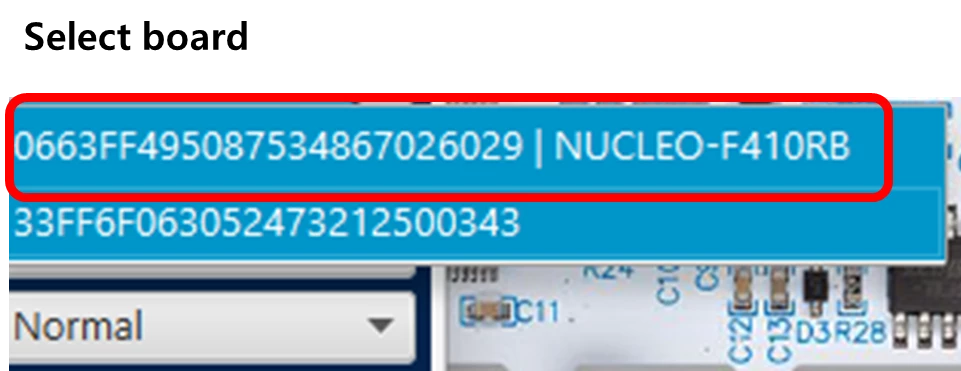

and then, select nucelo board in cube32Programmer




after that, click connect button, it works well.



but, I want to flash program to use ST-Link V2, not nucleo board.

In the datasheet for ST-link V2, 2x10 20pin connector.

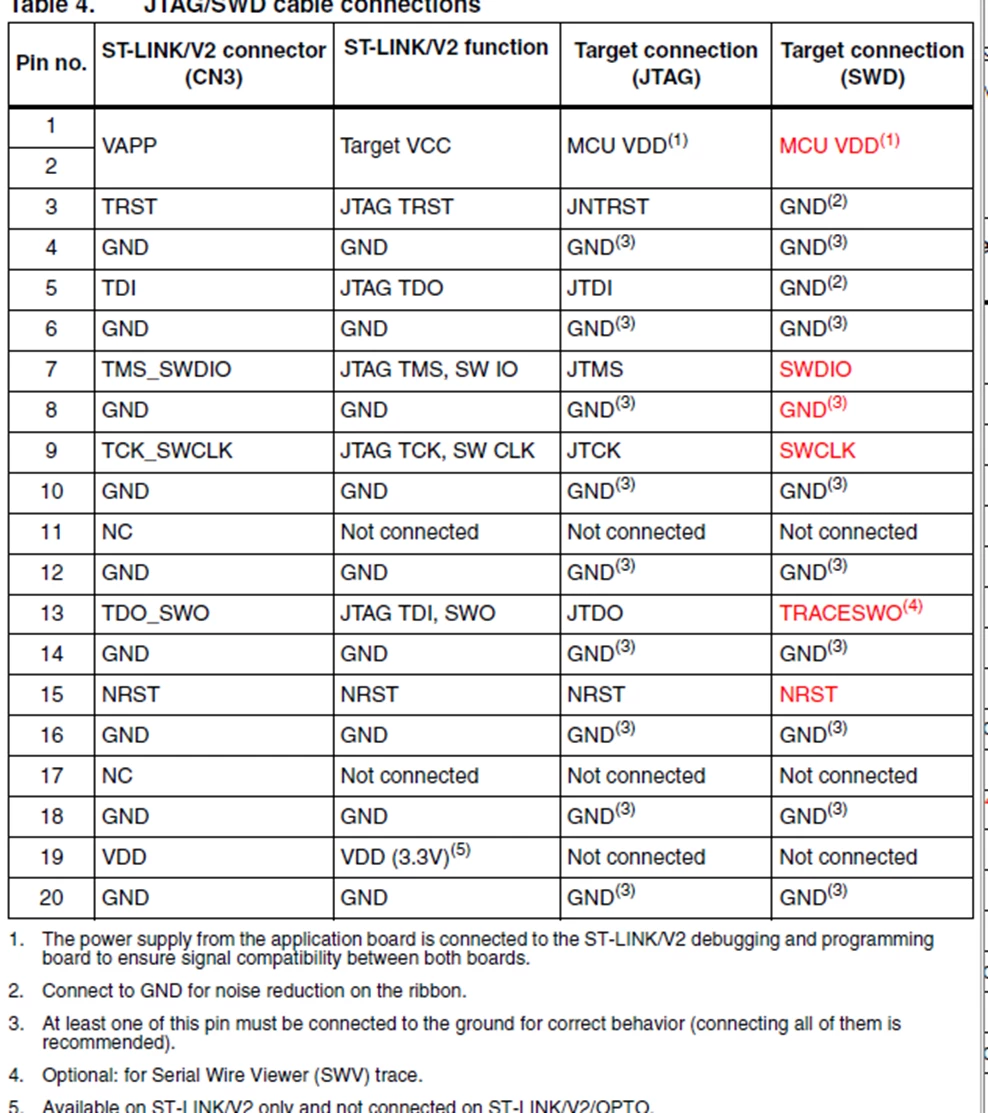

To use JTag or SWD flash, at lease VDD, JTMS, JTCK, GND, JTDO, NRST are need.

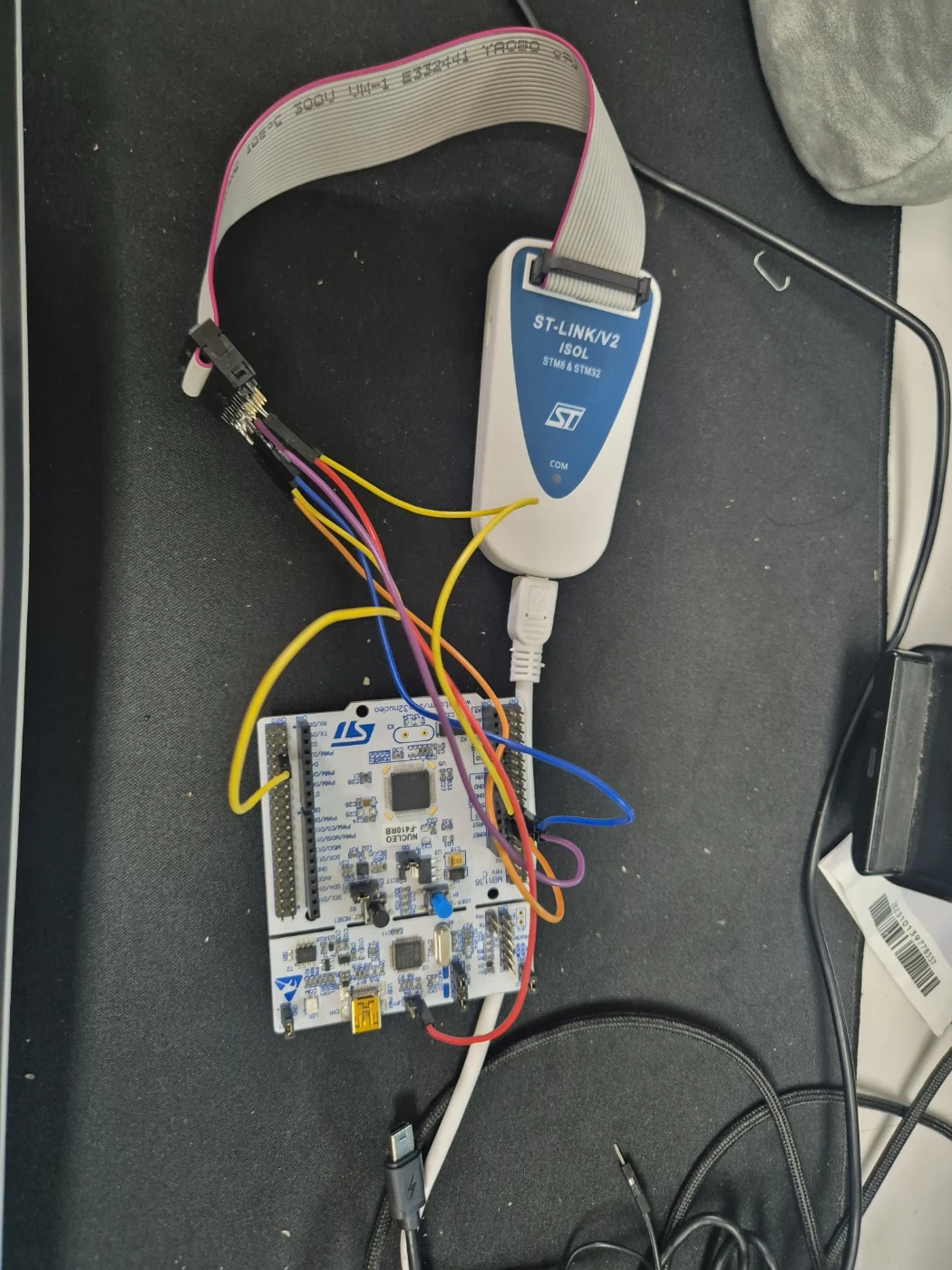

So, I connect wire to St-link V2 pin to Nucleo Board, it is not work.






How can I do that?



Thanks











2 replies

Peter BENSCH
Peter BENSCH
Technical Moderator
June 18, 2024

I don't quite understand what you want to achieve. Do you have a separate ST-LINK/V2 with which you want to programme the target (STM32F410) on the NUCLEO, i.e. instead of the integrated ST-LINK/V2-1?

In order to give better visibility on the answered topics, please click on Accept as Solution on the reply which solved your issue or answered your question.
BSang
BSangAuthor
Associate II
June 19, 2024

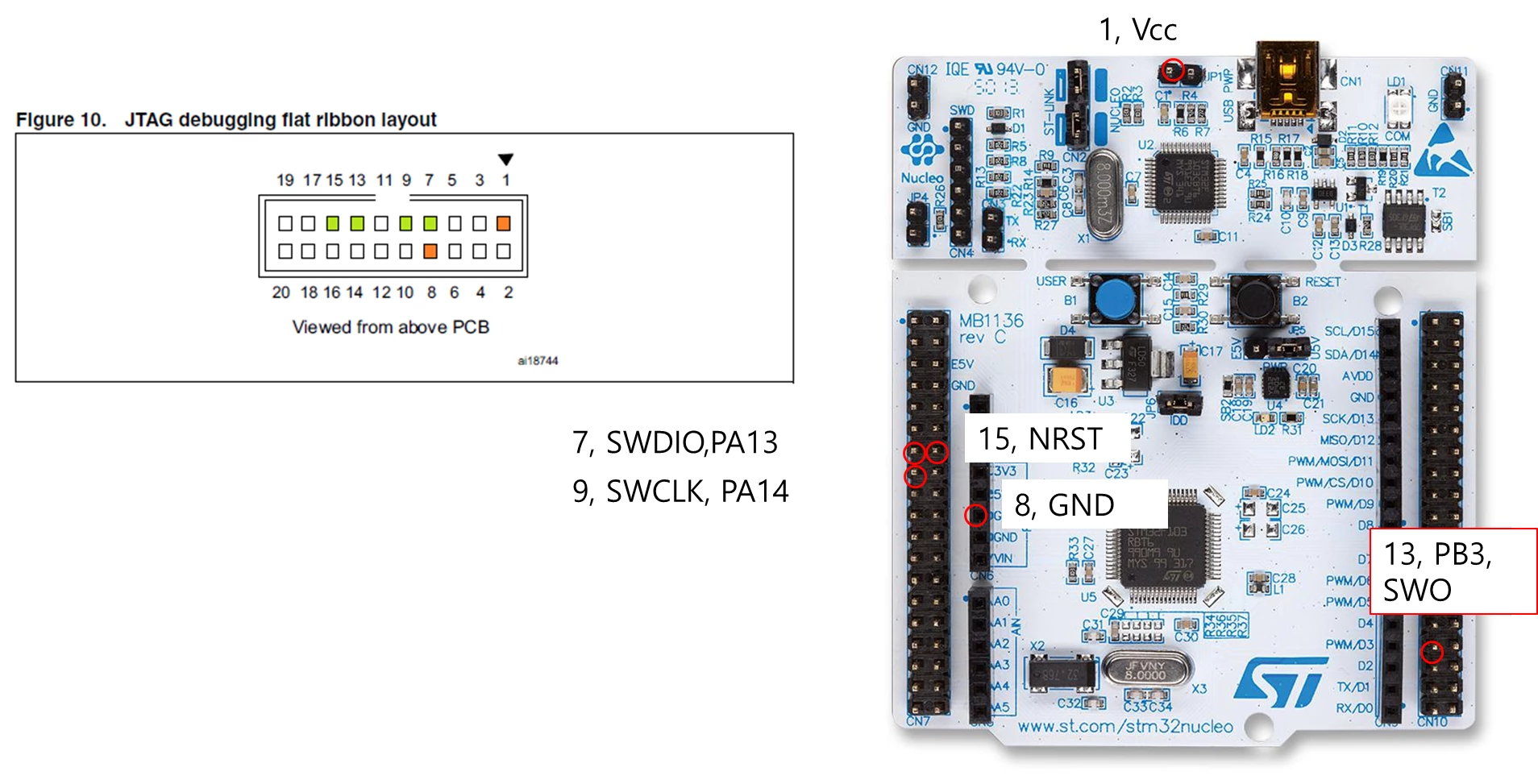

Hi, I want to flash using external ST-Link/V2, not using nucleo internal ST-LINK/V2 module like this.








Peter BENSCH
Peter BENSCH
Technical Moderator
June 19, 2024

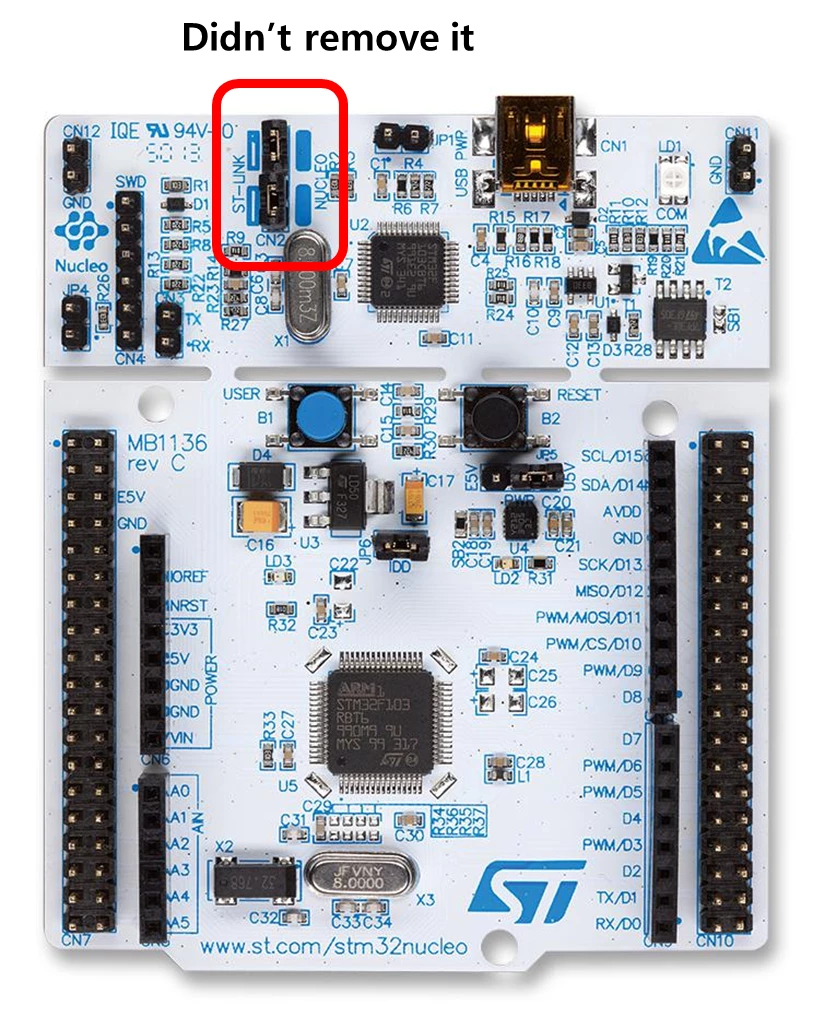

With the current setup, you have two ST-LINKs in parallel, which of course cannot work. You must remove the two jumpers from CN2 so that the embedded ST-LINK/V2-1 is disconnected from the target.

BTW: there is no NUCLEO with STM32F410CBT6, you probably mean the NUCLEO-STM32F410RB?

Please note that the target currently gets its HSE from the MCO of the ST-LINK/V2-1. If you want the target to be independent and have its own HSE, you must:

  • Open SB50
  • Close R35 and R37 or fit them with 0-ohm resistors
  • Fit X3, C33 and C34

(see also the schematics, page 3)

Regards
/Peter

In order to give better visibility on the answered topics, please click on Accept as Solution on the reply which solved your issue or answered your question.
