STM32 cube programmer HEX file loading

  • May 4, 2026
  • 2 replies
  • 138 views

Hello Community,

I’m facing an issue while loading a firmware HEX file using STM32CubeProgrammer. The HEX file is not downloading successfully. Could you please suggest what might be wrong or provide guidance on how to resolve this?

2 replies

isikli
isikli
Associate III
May 4, 2026

This issue is usually not related to the HEX file itself but to configuration or connection problems. You may want to check points:

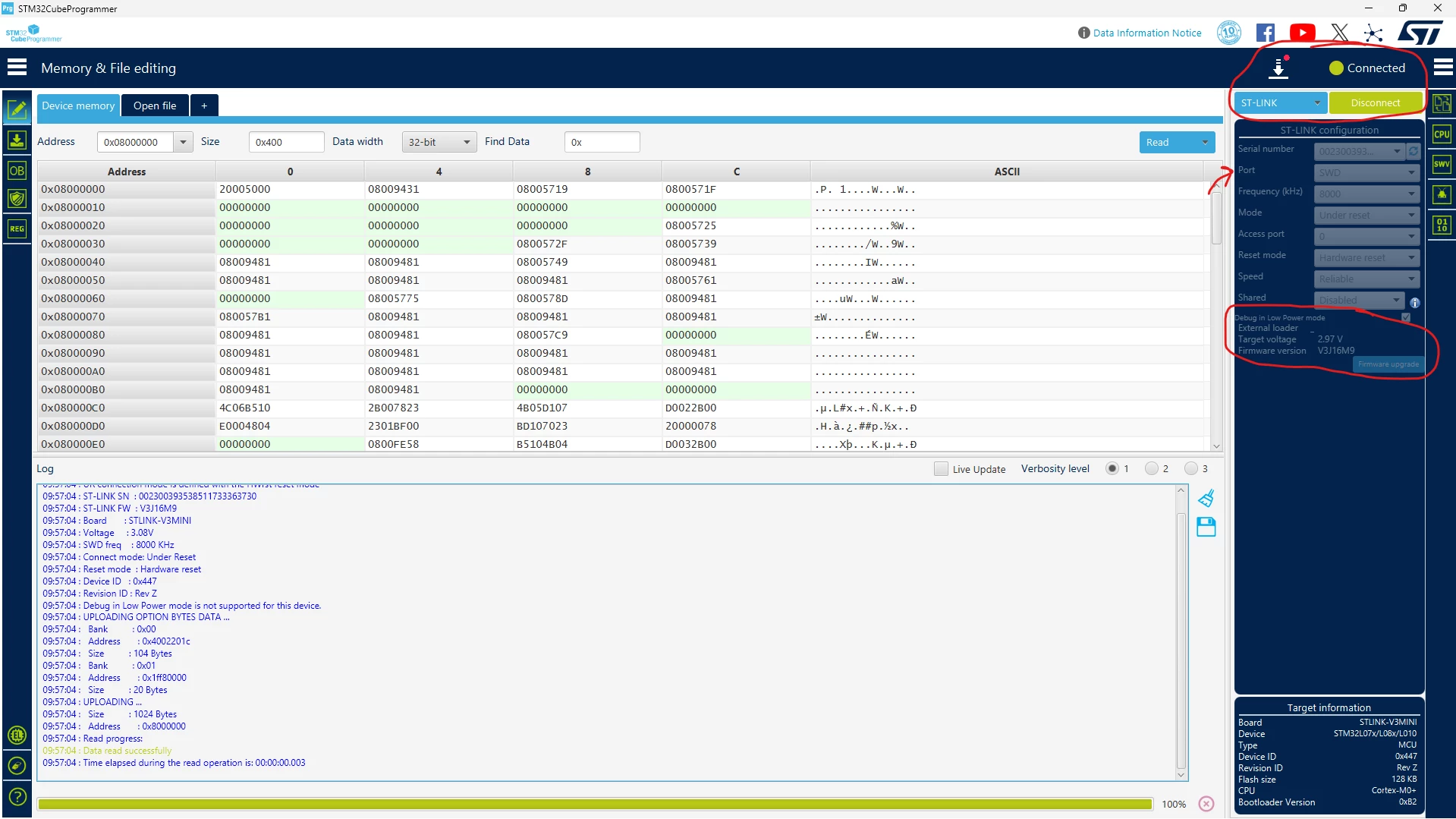

1) connection is ok ? make sure you selected the correct interface(st-link or uart or usb..)
2) mcu is powered ? if voltage is not detected, programming will fail.

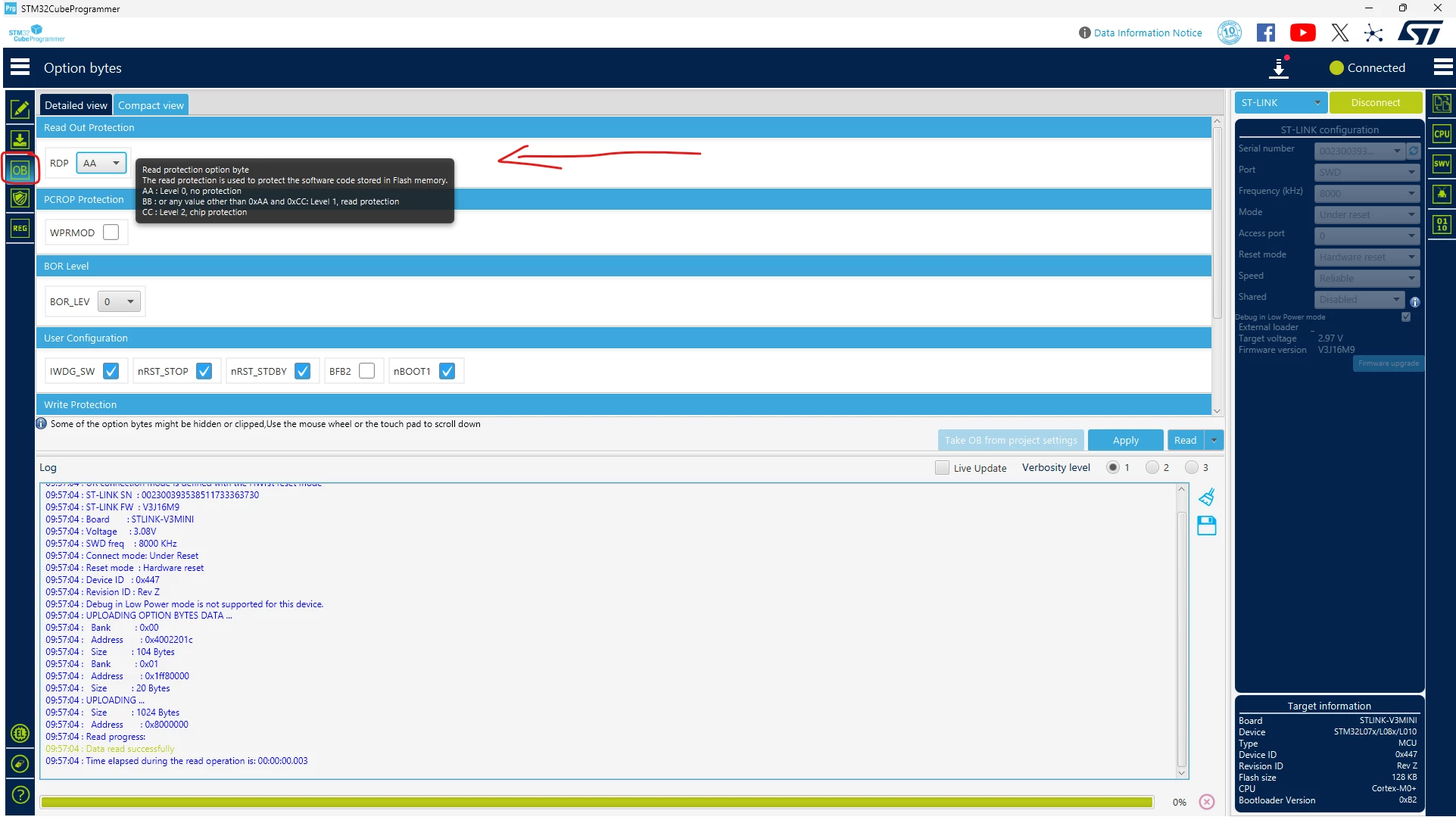

3) if the mcu is protected RDP, can't programmed.
4) check your options bytes



Also please share the log output from the programmer.



    Andrew Neil
    Andrew Neil
    Super User
    May 11, 2026
    @harshpanchal_6 wrote:

    The HEX file is not downloading successfully.

    Please give full details of what, exactly, you're using and how, exactly, it fails:

    How to write your question to maximize your chances to find a solution



    Can you download anything else to this target?

    Can you download to any other target?

    A complex system that works is invariably found to have evolved from a simple system that worked.A complex system designed from scratch never works and cannot be patched up to make it work.
