Bug: STM32CubeIDE - FreeRTOS debug windows are missing

Forum|Forum|7 years ago
May 10, 2019
8 replies
4498 views

The FreeRTOS debugging tools (as present in Atollic, NXP MCUxpresso, etc) seem to be missing in STM32CubeIDE. These include task view with stack use, semaphore/mutex view, queue view. Those of us using FreeRTOS need these!

What's going on? Are available as a plug-in somewhere?

Thanks!

Best Regards, Dave

This topic has been closed for replies.

Best answer by Stefano Oliveri

You can try the Stateviewer plugin starting from here: https://www.highintegritysystems.com/down-loads/stateviewer-plug-in/

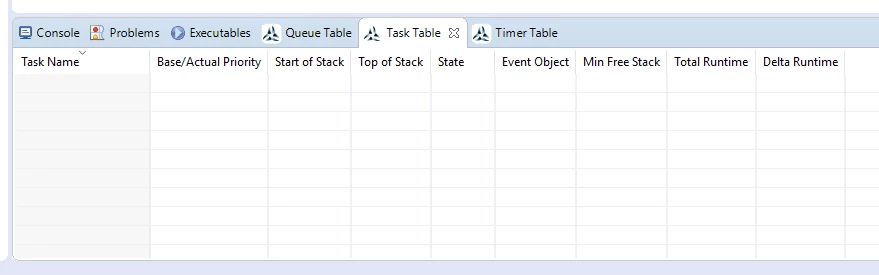

It provides the Task / Queue / Timer table.

Best regards,

Stefano

Stefano OliveriAnswer

ST Employee

You can try the Stateviewer plugin starting from here: https://www.highintegritysystems.com/down-loads/stateviewer-plug-in/

It provides the Task / Queue / Timer table.

Best regards,

Stefano

Goof Ball

Associate III

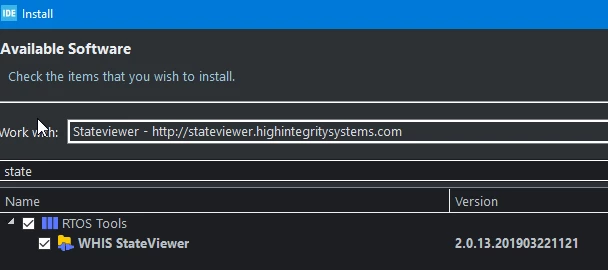

How does one install this plugin into stm32cubeide? The plugin, as downloaded from HighIntegritySystems, is a zip with a .dll, not a .jar

Goof Ball

Associate III

Figgered it out - it is included in @Stefano Oliveri_O 's .p2f clump of plugins

Dave NadlerAuthor

Senior III

Thanks @Stefano Oliveri_O - that works fine.

Unfortunately there are too many other bugs in STM32CubeIDE; we'll need to continue using Atollic for now...

Dave NadlerAuthor

Senior III

@Stefano Oliveri_O - ST will fix this so FreeRTOS plug-in is included out-of-the-box in STM32CubeIDE, right?

Markus GIRDLAND

ST Employee

Yes, it's on the road map but I can't say for sure when.

qua

Associate III

Not in the next 3 years apparently.

Stefano Oliveri

ST Employee

Hi Dave,

I am not in the position to answer this question because I am a FAE working with our customers to make their products. But I will say "trust ST".

At the moment I working to figure out how to migrate my projects from TrueSTUDIO to CubeIDE because one thing is very important to me is that CubeIDE is based on the latest Eclipse platform (v4.11.0), and that is enough to make an effort.

I am not seeing bugs, as you reported in your comment, but other missing features.

For the missing features can be useful the attached (p2f) file:

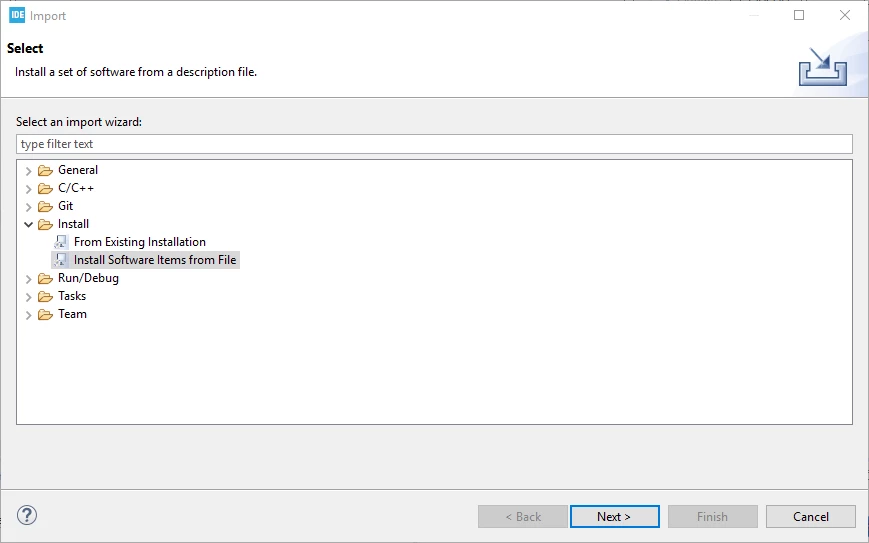

Select the "File > Import" menu command to open the Import wizard
In the "Import / Select" step select "Install Software Items from File"
In the "Import / Import Software Configuration" step press the "Browse..." button and select the attached file
You will see a list of the missing features plus few other plug-ins I use to manage the whole firmware development life-cycle.
Select what you want and complete the wizard.

I hope this can help to restore your favorite IDE.

About the bugs, what in particular is preventing you to move from Atollic to CubeIDE? I will appreciate if you have time to share your valuable experience.

TrueSTUDIO_2_CubeIDE.zip
