Bug with single wire UART

  • June 7, 2019
  • 0 replies
  • 758 views

Hey there,

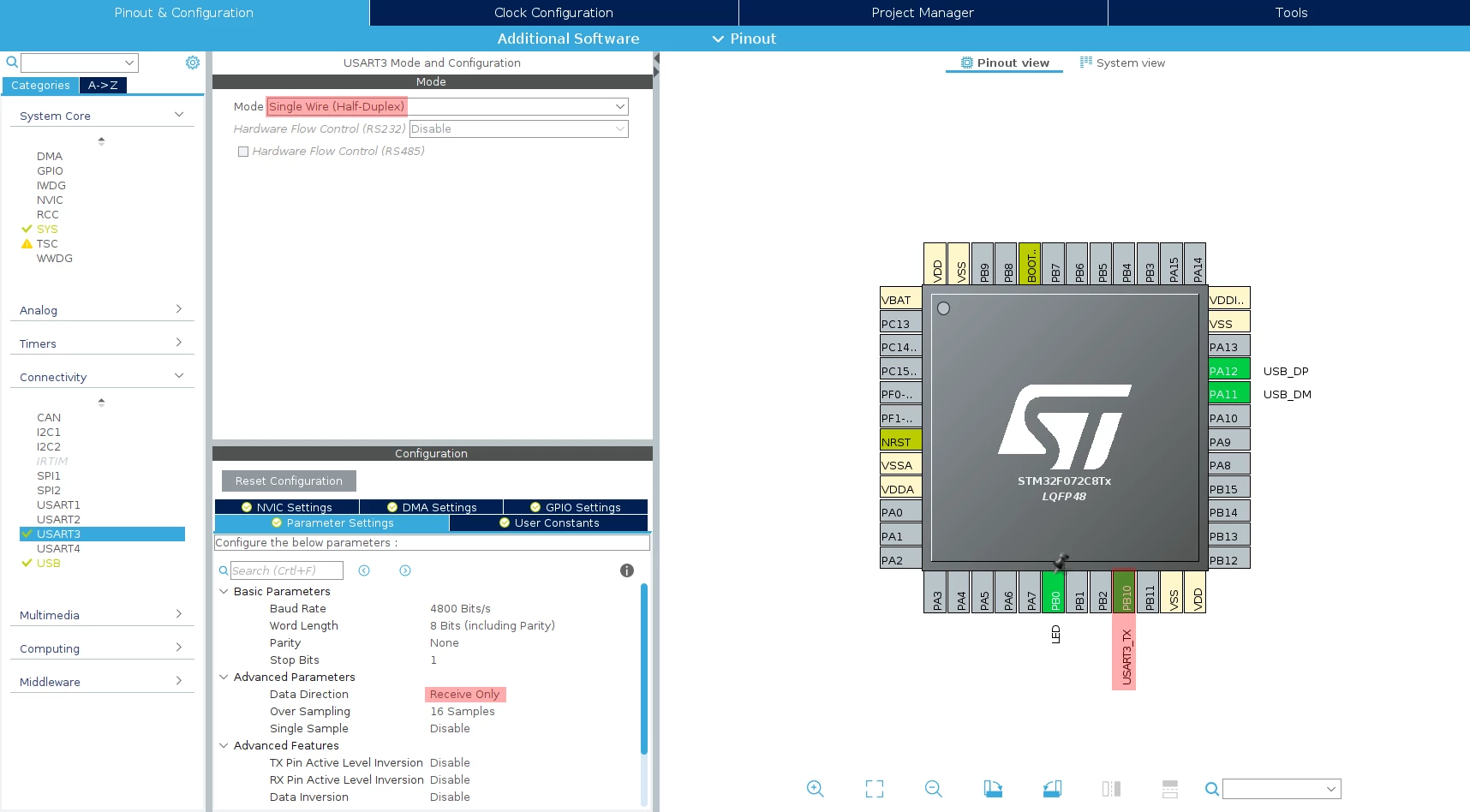

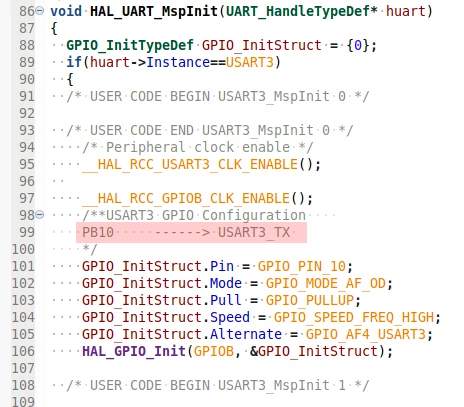

it's no big deal, but rather annoying. If I select one UART to be Half-Duplex the RX pin disappears from the pinout even if I select receive only. It doen't matter if I select RX only or TX only, the RX-pin won't show up again. The generated code also initializes only the TX pin. Boooo.

I'm using STM32CubeIDE

Version: 1.0.0

Build: 2872_20190423-2022 (UTC)

This topic has been closed for replies.
