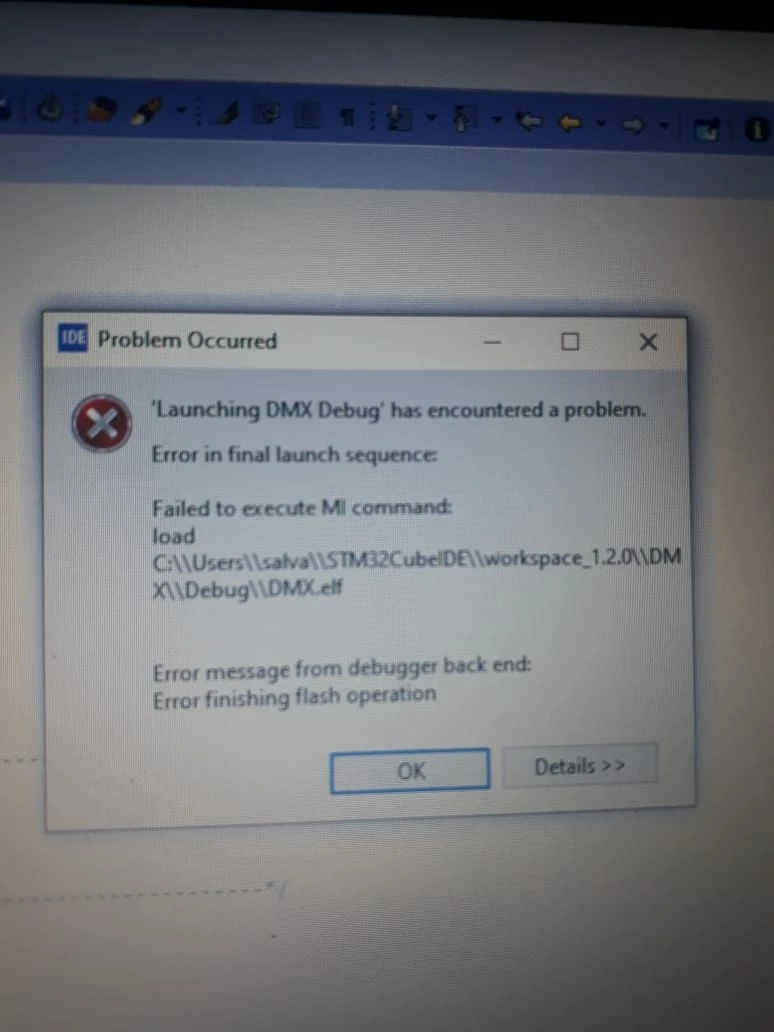

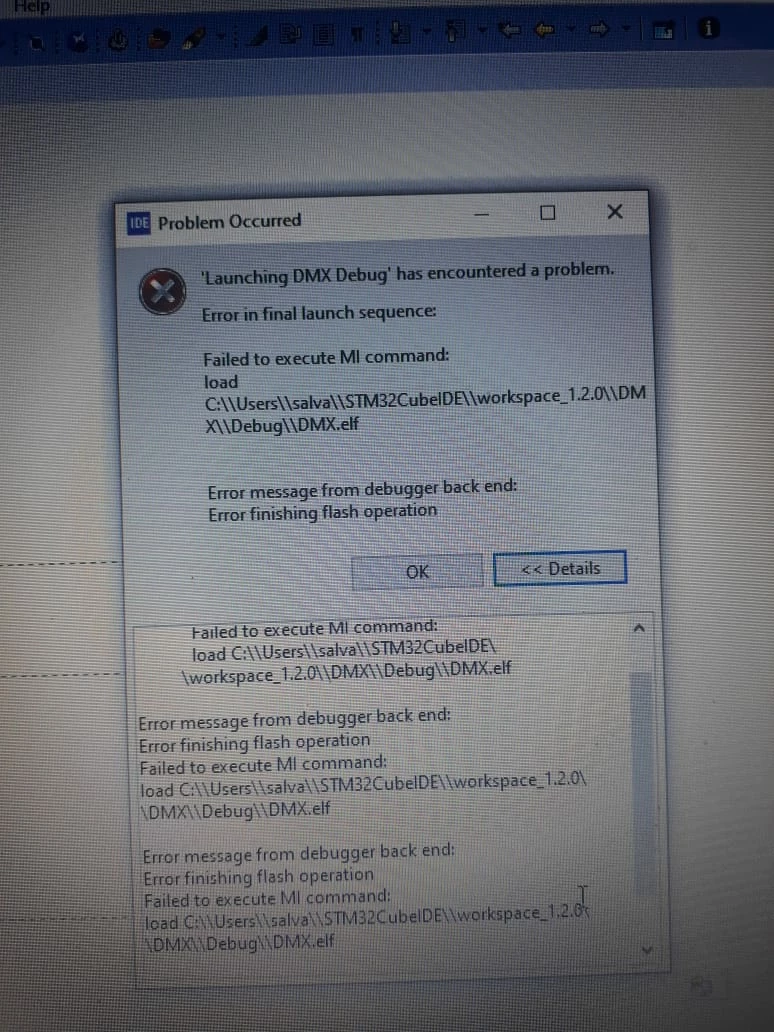

HELP.... Error in final launch sequence: Failed to execute MI command

Question

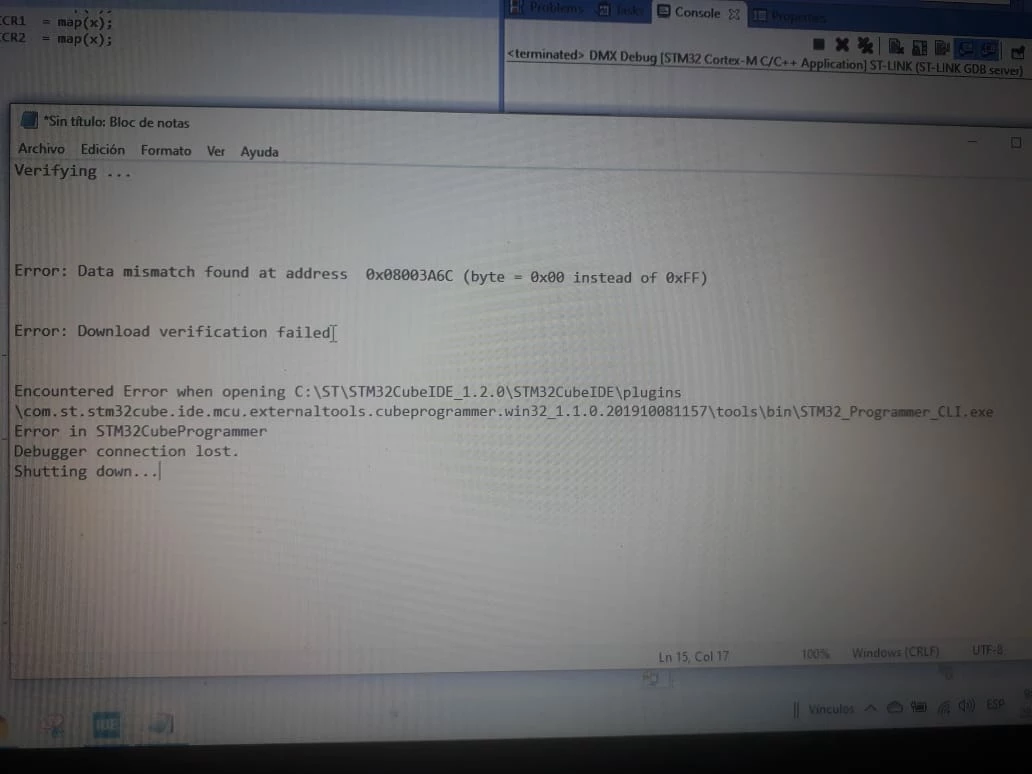

Hello ​I'm trying a project with a STM32L051R8T6 microcontroller and STM32CubeIDE, I already finished my code and tested in a board, everything worked fine . I've not modified the code, anf now I can't enter in Debbug mode.​I​ tested the ST-Link with other of my projects and it is working fine, the problem is with this new development that I'm trying. I have three boards prototype and the error still occurring with all of them.Please check the attached files with error message​.​Can you help me to solve?

EGonz.11 · Answer

This is the output in Console:--------------------------------------------------------------------------------------------STMicroelectronics ST-LINK GDB server. Version 5.4.0Copyright (c) 2019, STMicroelectronics. All rights reserved.Starting server with the following options:    Persistent Mode      : Disabled    LogFile Name        : C:\Users\salva\STM32CubeIDE\workspace_1.2.0\DMX\Debug\st-link_gdbserver_log.txt    Logging Level       : 31    Listen Port Number     : 61234    Status Refresh Delay    : 15s    Verbose Mode        : Enabled    SWD Debug         : Enabled    InitWhile         : EnabledTarget connection mode: Under resetHardware watchpoint supported by the target COM frequency = 4000 kHzST-LINK Firmware version : V2J35S7Device ID: 0x417PC: 0x8001220ST-LINK device status: HALT_MODEST-LINK detects target voltage = 3.21 VEnter STM32_AppReset() function NVIC_DFSR_REG = 0x0000000BNVIC_CFGFSR_REG = 0x00000000ST-LINK device status: HALT_MODEST-LINK device initialization OKWaiting for debugger connection...Waiting for connection on port 61234...Accepted connection on port 61234...Debugger connectedEnter STM32_AppReset() function NVIC_DFSR_REG = 0x00000008NVIC_CFGFSR_REG = 0x00000000 ------ Switching to STM32CubeProgrammer -----    -------------------------------------------------------------------            STM32CubeProgrammer v2.3.0             -------------------------------------------------------------------Log output file:  C:\Users\salva\AppData\Local\Temp\STM32CubeProgrammer_a06320.logST-LINK SN : 56FF71067878545233240667ST-LINK FW : V2J35S7Voltage   : 3.21VSWD freq  : 4000 KHzConnect mode: Under ResetReset mode : Hardware resetDevice ID  : 0x417Device name : STM32L05x/L06x/L010Flash size : 64 KBytesDevice type : MCUDevice CPU : Cortex-M0+Memory Programming ...Opening and parsing file: ST-LINK_GDB_server_a06320.srec File     : ST-LINK_GDB_server_a06320.srec Size     : 16084 Bytes Address    : 0x08000000 Erasing memory corresponding to segment 0:Erasing internal memory sectors [0 125]Download in Progress:�������������������������������������������������� 0%�������������� 28%�������������� 57%�������������� 85%�������� 100%Error: failed to download Segment[0]Error: failed to download the FileTime elapsed during download operation: 00:01:02.659Verifying ...Read progress:�������������������������������������������������� 50%������ 12%��� 19%��� 25%��� 31%���� 38%��� 44%��� 50%��� 57%��� 63%���� 70%��� 76%��� 82%��� 89%��� 95%��� 100%Error: Data mismatch found at address 0x08003A6C (byte = 0x00 instead of 0xFF)Error: Download verification failedEncountered Error when opening C:\ST\STM32CubeIDE_1.2.0\STM32CubeIDE\plugins\com.st.stm32cube.ide.mcu.externaltools.cubeprogrammer.win32_1.1.0.201910081157	ools\bin\STM32_Programmer_CLI.exe ------ Switching context ----- Error in STM32CubeProgrammerDebugger connection lost.Shutting down...--------------------------------------------------------------------------------------------
