i am trying to inteface between stm32f429 nulceo board with lan8742A. If any clue you have then please tell me. Using HAL library in CUBEMxIDE

Forum|Forum|3 years ago
July 25, 2022
10 replies
3021 views

Please any one done this project please give me.I am trying too many times.

This topic has been closed for replies.

Best answer by RROY.1

Andrew Neil

Super User

So what, exactly, have you tried? Where are you stuck?

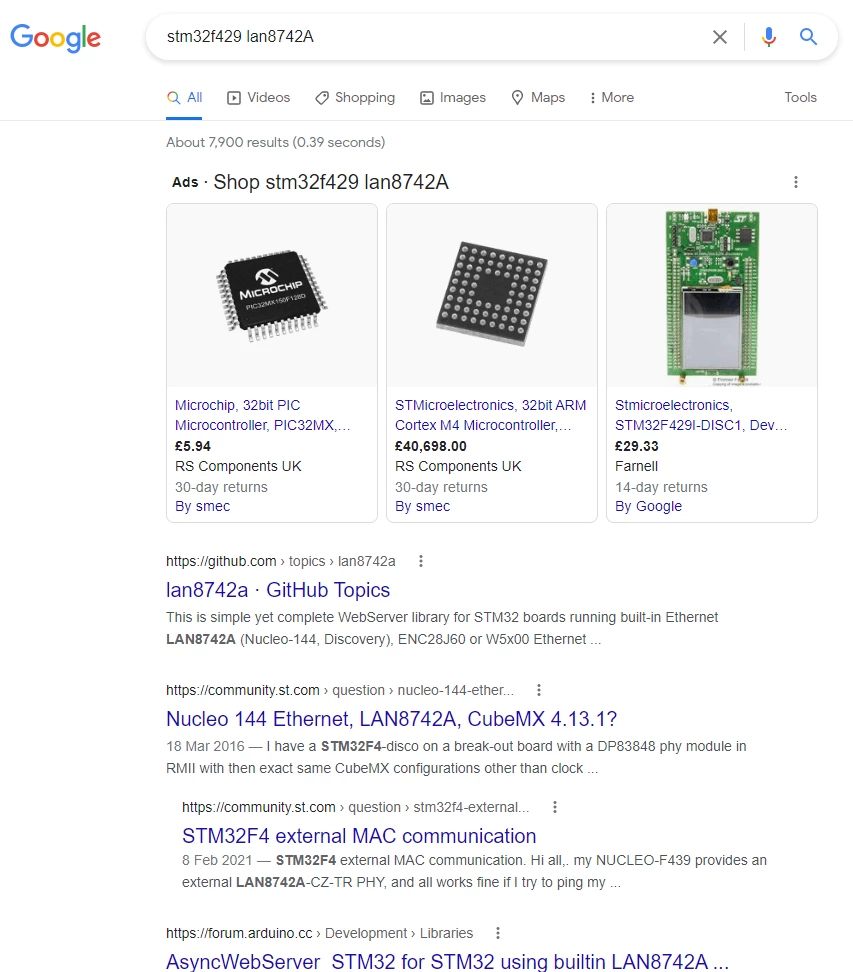

Did you try a Google search?

When searching for code, GitHub is a good place to search ...

A complex system that works is invariably found to have evolved from a simple system that worked.A complex system designed from scratch never works and cannot be patched up to make it work.

RROY.1Author

Associate

I have a stm32f429 nucleo board.and in that board already attached lan8742a chip and ethernet port also.I cant hardware configure.I searched google and github also no clue i have found. whenever I write in cmd prompt "ipconfig" that time default ip shows every time. I want to show my static ip like 192.168.001.111.

Bob S

Super User

OK, so you have the NUCLEO-F429ZI. Hardware should be OK then.

> "whenever I write in cmd prompt 'ipconfog'"

A command prompt on your PC? Or do you have a command prompt running on your NUCLEO board?

> "default IP shows every time"

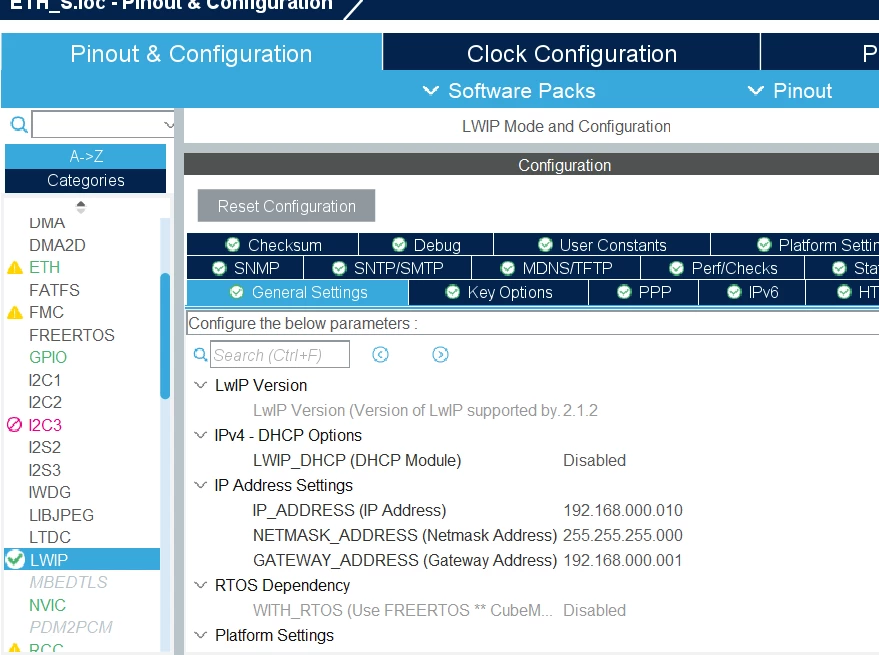

What "default IP"? How are you expecting your NUCLEO board to get the 192.168.... IP address? Did you edit the STM32 source code? If so, show the code. Or are you trying to get your PC to use that address (as implied by mentioning IPCONFIG)? That is unclear to me from your posts.

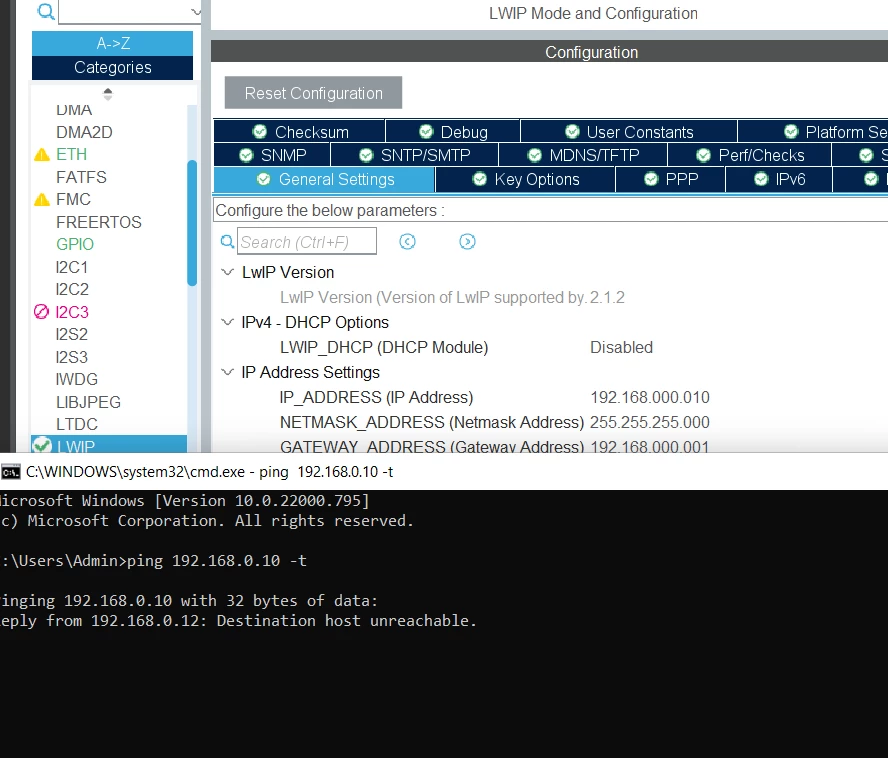

RROY.1AuthorAnswer

Associate

Bob S

Super User

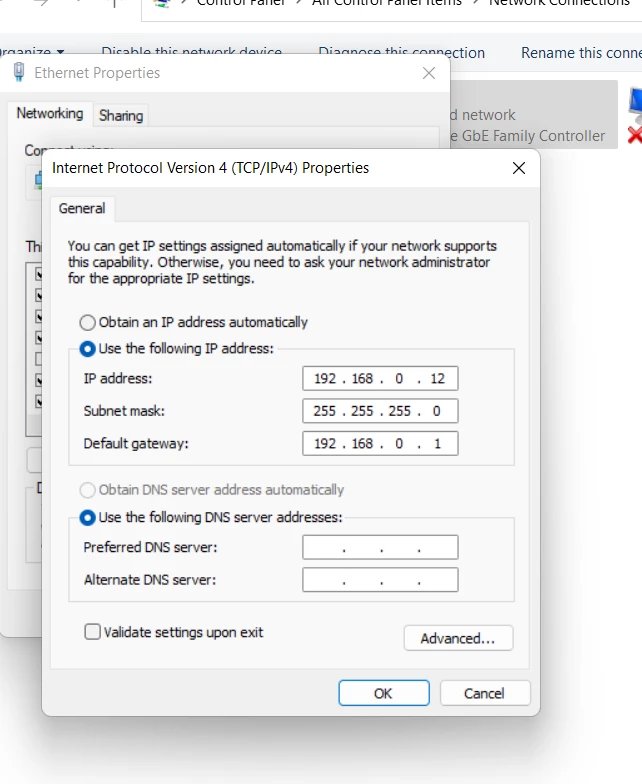

What are the IP settings on your PC (IP add, netmask and gateway). Is there a router/gateway between your PC and the NUCLEO board? Or just an Ethernet switch?

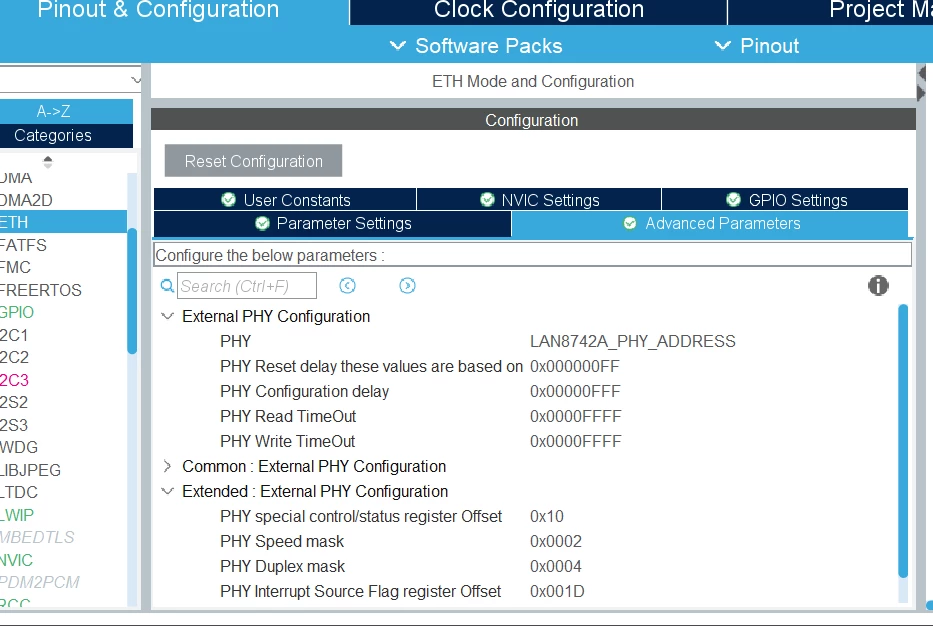

Check the CubeMX Ethernet "Advanced Parameters" tab. In my experience (using CubeMX 6.3, can't recall if I've tested with later versions), CubeMX defaults to some incorrect register addresses and bit field values. You will need to double-check those values with the LAN8742 data sheet. Specially the "Extended External PHY Config" registers, but double-check all those settings.

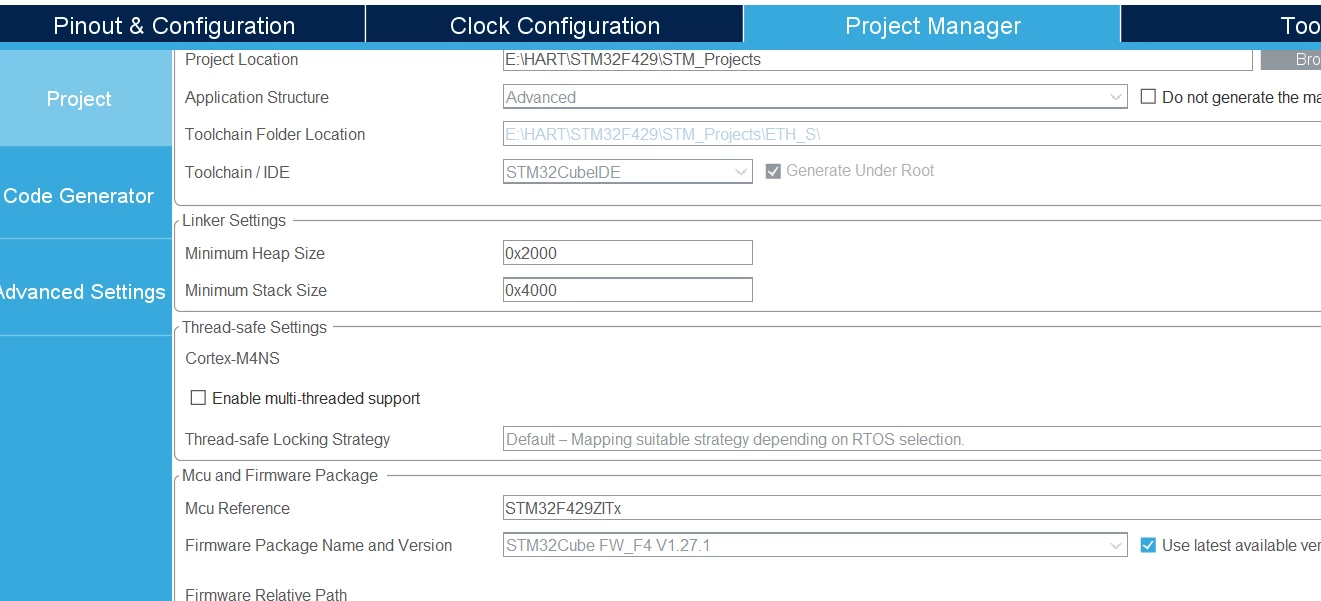

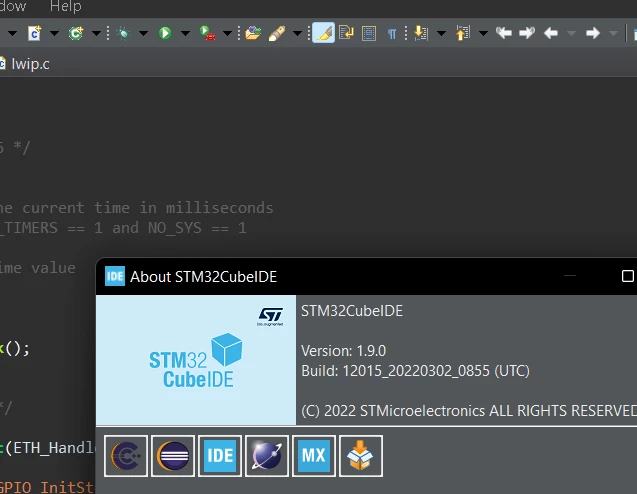

Which version of CubeMX and the CubeF4 library are you using to generate this code?

Is the Ethernet cable plugged into the Nucleo board when it is powered on (or the firmware started from the debugger)?
