Live Expression stopped working "Failed to evaluate expression" For 2 years I have been using STM32CubeIDE debugging with Live Expression view without any problems. Starting Oct 2022 I only get "Failed to...."

Hello @wvan .1​

First let me thank you for posting.

Could you please provide the GDB client and server log, so I be able to further analyze the issue.

Kind regards,

Semer.

i have similar problem: in debug / beakpoint no more variables shown at all ! shows declaration as if its in C editor mode. live expressions also no more working...just error msg.

see:

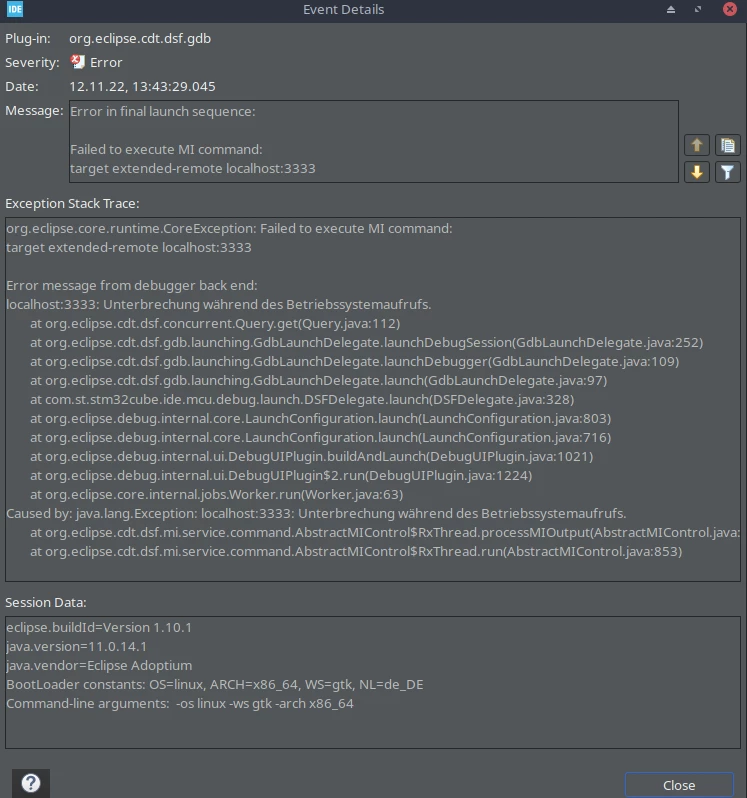

and blue -> detail:

is still same, when on OpenOCD instead of ST-LINK GDB-server.

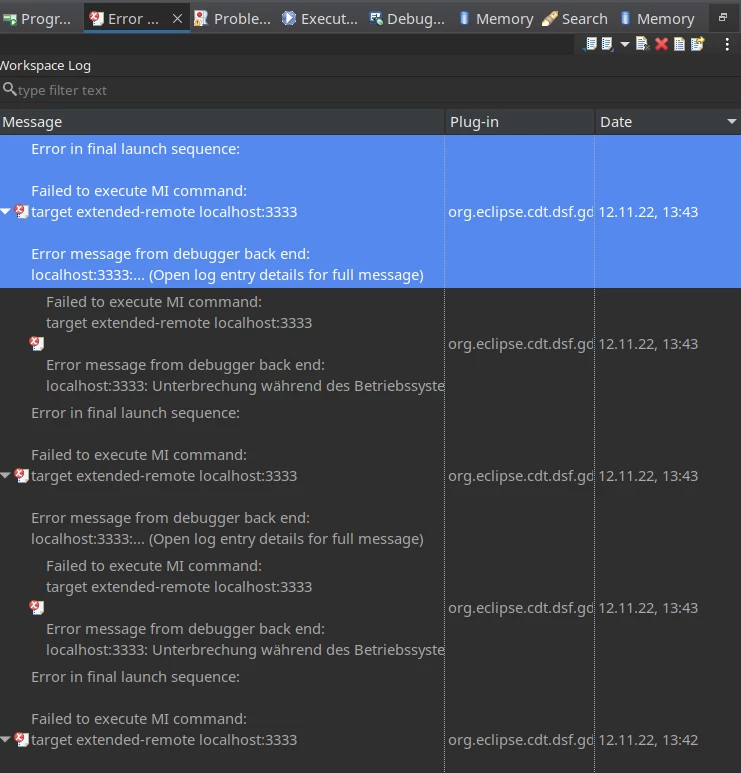

problem maybe here:

 or here, the root of all evil ?

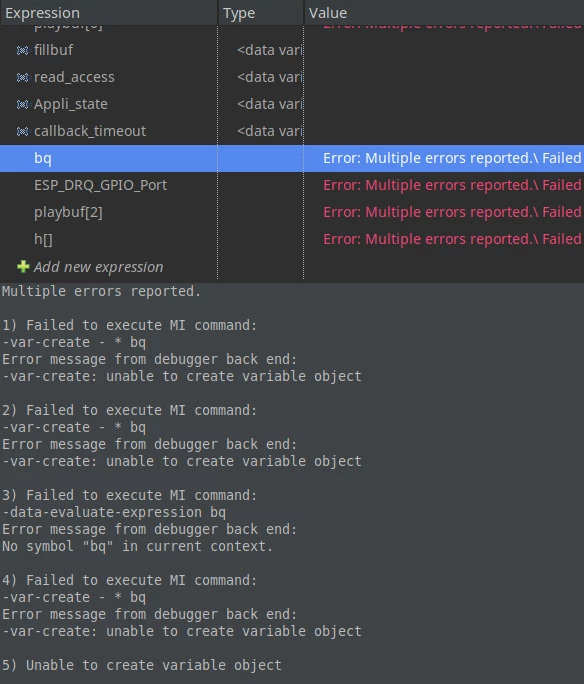

 and view expressions is now :

what can i do now , to get it working again ?

Java in linux system seem ok, all up to date.

$ java -version

openjdk version "1.8.0_332"

To analyze this further we need full log-files. Not only screenshots.

• GDB traces
• ST-LINK GDB server log-file

Is it even possible for you to share the projects with us? Would they be possible to run on an ST board? ... Hard to re-produce this issue!

What if you create a new debug configuration in the project with issues?

What if you create a new project, do you still have the same problem?

If same issue in a new project, then what if you change workspace?

Same problem? Re-installation of CubeIDE?

... Trying to go from a narrow scope to a wider scope to understand the issue.

Kind regards, Mattias

thx for your answer , Mattias .

-- even hard to describe all the "symptoms". :)

+

just some "impressions" from last days:

• debug session start is/was at "main" (default). now it shows a line in startup.s file -- but running.
• switching from "C/C++" to Cube/configuration perspective was always perfect (on this linux system), now looks like IDE "forgot" something: switch to xx.ioc file opens big window for Cube/configuration perspective, renders chip picture and left menu - then switch back to "C/C++" perspective , but showing chip/Cube in center "C" editor window. click on "MX" then opens big Cube window again, as it did before. (since CubeIDE 1.0.0. to 1.10.1 Build: 12716_20220707_0928 it worked without such problem ).
• opening an old (test) project, with F303 cpu, nothing changed, just click "debug" , shows same behaviour : debug running, but on stop cannot see actual variables, just declaration, as in "C/C++" perspective.
• so seems not a problem with the H743 project, more a problem in IDE /java scripts.
• maybe has any relation to the problem, that came after update to CubeIDE 1.10.1 : no more building , just error msg. see here:
• https://community.st.com/s/feed/0D53W00001fQbmMSAS

 i installed older toolchain (gnu-tools-for-stm32.9-2020-q2-update), then working again.

i suppose, this actual problem is not to reproduce, because something happened in the IDE, similar a crash. I closed IDE , restart, looks ok. But was not really ok....

next i try to find some log files... and as test: make new project, as you recommend.

ok, big problem found : sitting at keyboard . :smirking_face:

for a speed test, i changed in a test project many optimizer and other setting, just also debug:

for some (idiot) reason, seems all projects got changed settings.... so turn to standard:

now variables shown in debug session again and start at "main" again.

other (small) problems with curious window switching in IDE still there.

need a beer now.

Dear Matthias, Ascha3,

Thanks for responding to my question on this forum. Un fortunately I am not able to share the code/project in which this problem occurred. I have however the following additional remarks:

1. I was using a 'blue pill' as hardware (STM32F103C8T6)
2. I could circumvene the problem by initializing the variables in the 'user code 2' section (in main just before while(1) section). If I initialize the varibles in the declaration itself ('User code PV' ) the problem remains.
3. In a later, completely new started project, i do not have this problem.
4. As already mentioned I am using Windows 10, not Linux.

I am not a proficient SDK specialist and do not know how to extract the GDB log files.

Friendly regards Willem
