Question

STM32 cube examples?

  • May 15, 2026
  • 2 replies
  • 109 views

So I have the STM32 CUBE suite - and I remember there is a means to select example projects to start from.

HOWEVER - I cannot find that any more :(

Mr Google tells me to do this:

Start STM32-CUBE, select FILE->NEW->OTHER->Create New STM32 Project

This does not provide me with ready made examples to choose from. These are very stripped down, not even hello world, just a main() with a endless for(;;) loop. With the default oscillator/clock.

I'm sure you have seen the BOARD selector, you select the chip, the board and you can pick examples

That is what I am looking for.  Where is that?





2 replies

AScha.3
AScha.3
Super User
May 15, 2026

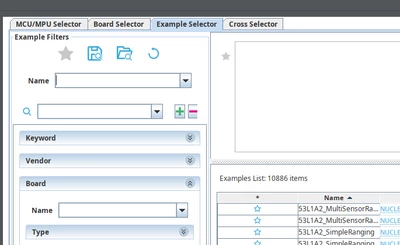

You looking for...this:


What version of : IDE , Cube , cpu     you use ?

"If you feel a post has answered your question, please click ""Accept as Solution""."
Andrew Neil
Andrew Neil
Super User
May 15, 2026

You didn't say what version you're using.

Please see: How to write your question to maximize your chances to find a solution



From CubeIDE v2.0.0, Project creation & configuration is now handled only in the separate, standalone CubeMX.

The CubeMX functionality is no longer integrated in CubeIDE.

See: STM32CubeIDE 2.0.0 workflow tutorial



For the rationale behind it, and discussion of that, see: IDE Version 2.0.0 - why remove MX ?
