SWV not working with STM32CubeIDE

Serial wire viewer is not showing since STM32CubeIDE version 1.0.1. It has worked before in version 1.0.0.

I'm trying to use it with a STM32F103RBT6 but also tried it with a Nucleo F103RB.

The live Expressions work perfectly fine, but not the SWV it just does nothing (no I havent forgot to press the record button).

This topic has been closed for replies.

Guru

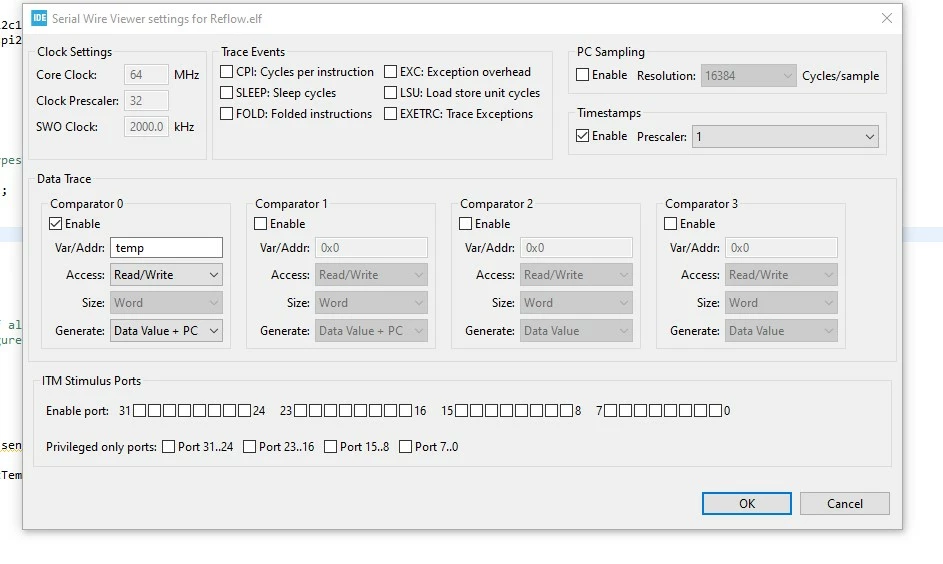

Don't you have to enable some ports?

Tips, Buy me a coffee, or three.. PayPal VenmoUp vote any posts that you find helpful, it shows what's working..

Senior

As far as I know only CubeMX changed going from 1.0.0 to 1.0.1. Which debug probe are you using? Show as the Debugger configuration.

thejcAuthor

Associate II

I've fixed it, it was not a software problem. I just had a bad connection on the SWO pin.
