Question

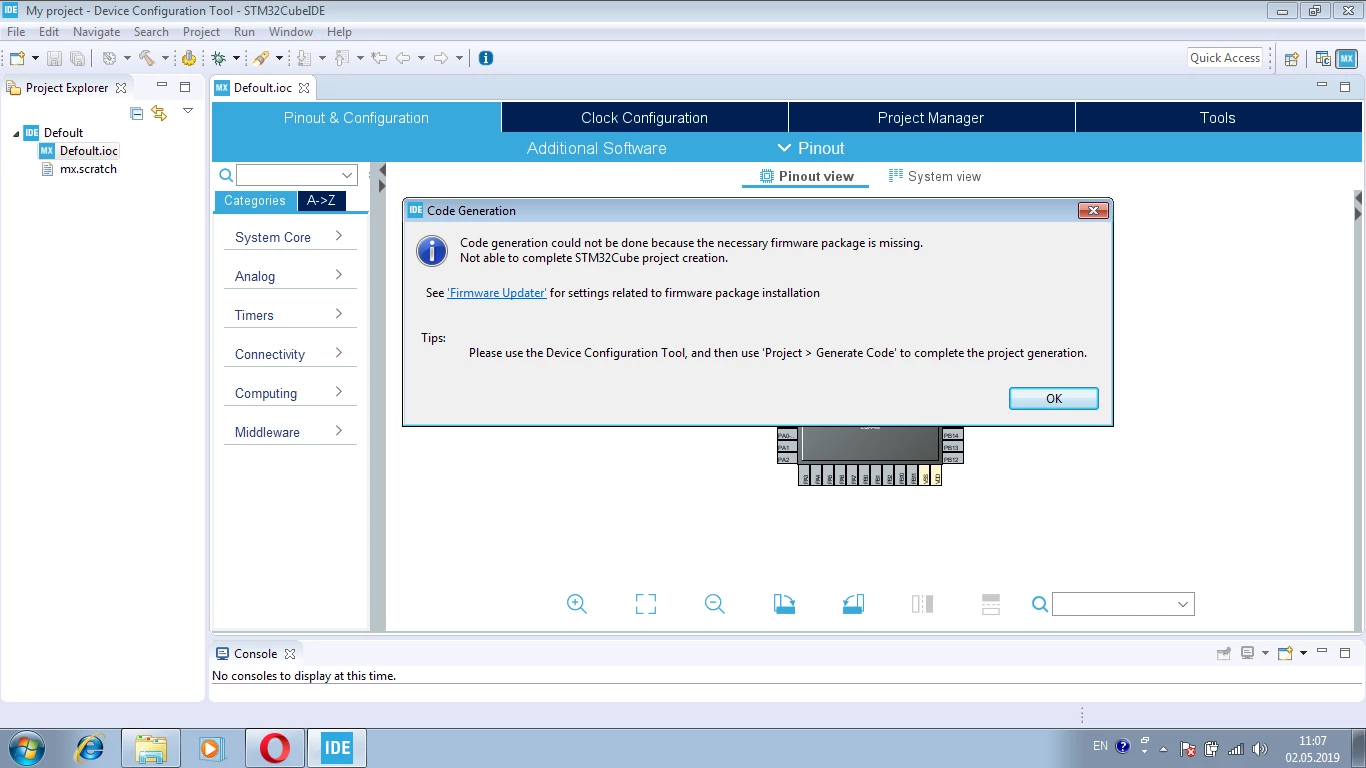

The project is not going to help please. Screen attached.

  • May 2, 2019
  • 8 replies
  • 4511 views


This topic has been closed for replies.

8 replies

Markus GIRDLAND
Markus GIRDLAND
ST Employee
May 6, 2019

What target are you trying to generate code for and what firmware version do you currently have?

Did you let CubeMX download and install the firmware when you created the project?

Vcher
VcherAuthor
Associate
May 6, 2019

I need any project even empty, as an example stm32f103c8t6. Which will be compiled and debugged. In the future I will change it. At what stage is the permission to download and update the firmware?

Markus GIRDLAND
Markus GIRDLAND
ST Employee
May 8, 2019

If you don't have a connection you will be asked if you would like to set up a connection when you start a new stm32 project. Are you able to download any firmware at all? Do you have the correct repository pointed out to let CubeMX know where to find the firmware you (potentially) already have?

Vcher
VcherAuthor
Associate
May 6, 2019

STM32CubeIDE

Version: 1.0.0

Build: 2872_20190423-2022 (UTC)

OS: Windows 7, v.6.1, x86_64 / win32

Java version: 1.8.0_202

Vcher
VcherAuthor
Associate
May 8, 2019

STM32Cube_FW_F1_V1.7.0 is in the folder STM32Cube\Repository.

I ask you to create a simple project so that I can open it on my computer and check the settings.

Vcher
VcherAuthor
Associate
May 8, 2019

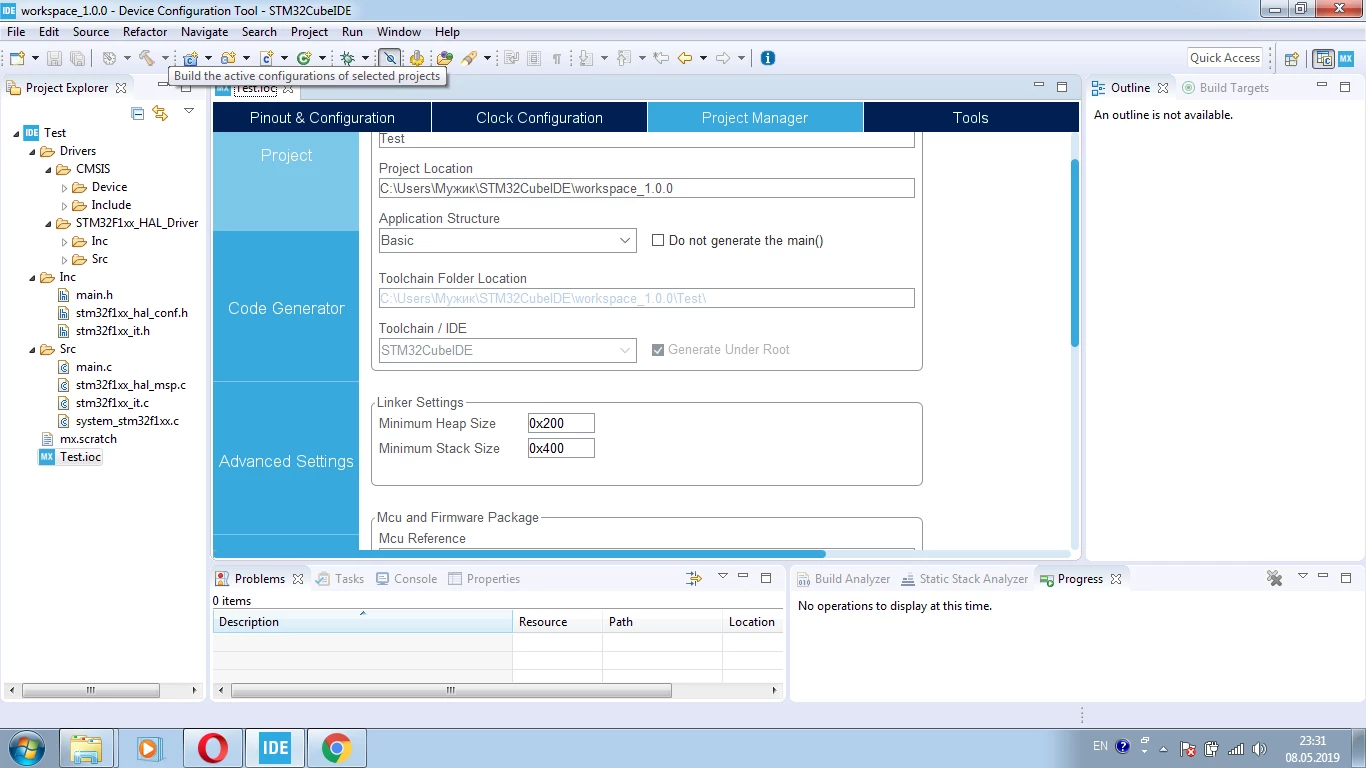

I managed to create a project but it does not have the include folder and startup. The project is not going to compile.

Vcher
VcherAuthor
Associate
May 8, 2019

It turns out the code generator found the firmware folder. But refuses to generate startup files. Therefore, the project is not compiled.

Markus GIRDLAND
Markus GIRDLAND
ST Employee
May 9, 2019

I generated a project and sent it to your e-mail. Hopefully you can get going with that one.

Vcher
VcherAuthor
Associate
May 13, 2019

Markus GIRDLAND

Thank you for help.

I solved my problem with your help.

It turned out that your linker does not like Cyrillic names in the paths. One of the folders had a Russian name. I think other users will have similar problems. Warn them. thank

Piranha
Piranha
Principal III
May 14, 2019

21st century and no unicode support - ST, are You serious?
